1990 Johnson Outboards 150 - J150STLESB

GEARCASE EARLY PRODUCTION section

Change Section

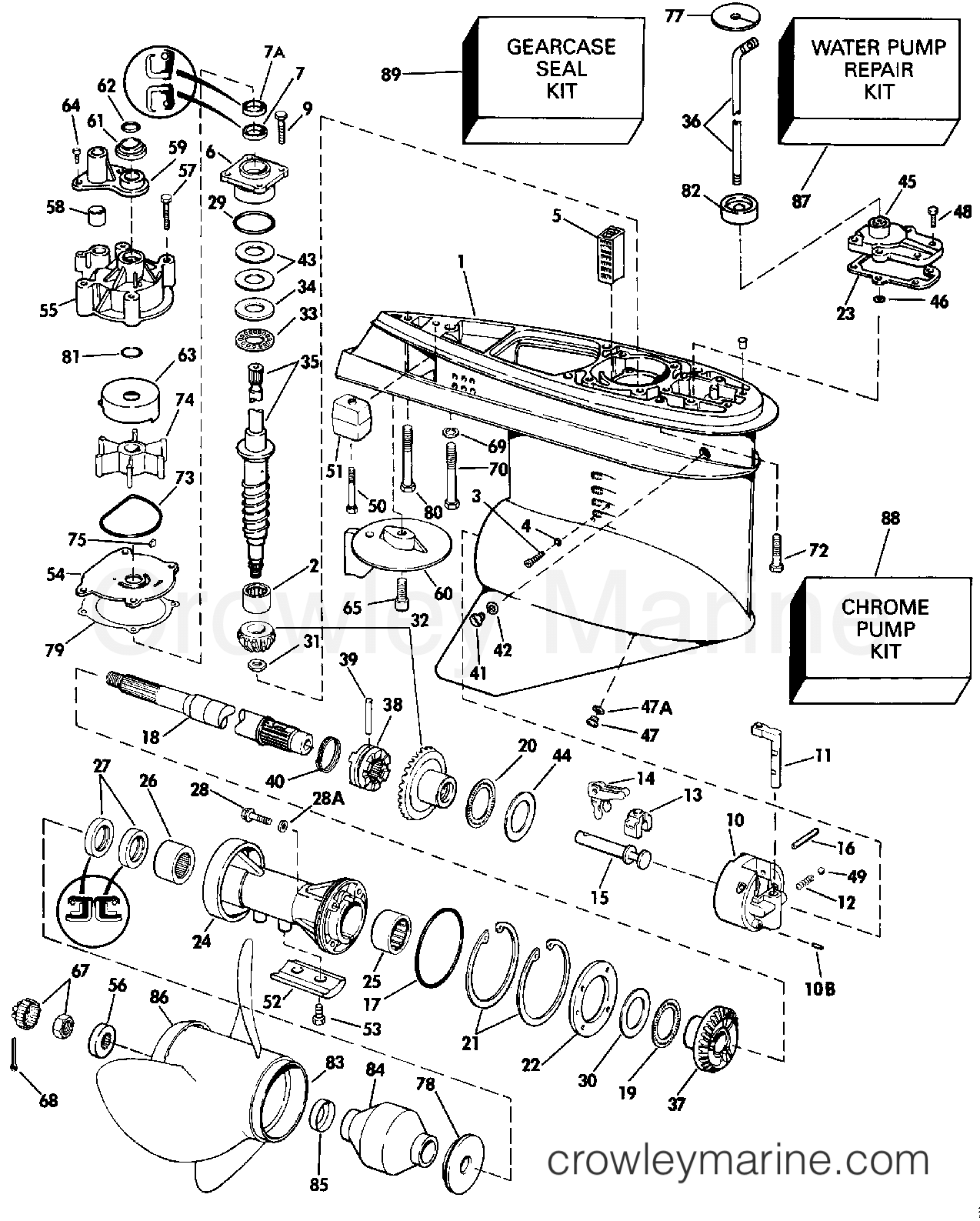

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1990 Johnson Outboards 150 - J150STLESB GEARCASE EARLY PRODUCTION section
Use two fingers to zoom
and move the diagram
1990 Johnson Outboards 150 - J150STLESB - GEARCASE EARLY PRODUCTION section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

10B
0331880 - Housing to gearcase Pin
0331880
0331880 ← 0331880

PIN

PIN
$3.99
You save 6%. $4.25
Ships Immediately
2 Items in stock
Required: 1
26
0387247 - Needle Bearing Assembly
0387247
0387247 ← 0387247

NEEDLE BEARING ASSEMBLY.

NEEDLE BEARING ASSEMBLY.
$16.99
You save 11%. $19.19
Ships Immediately
1 Items in stock
Required: 1
27
0320862 - Propeller shaft Seal
0320862
0320862 ← 0320862

SEAL

SEAL
$13.99
You save $1.20. $15.19
Ships Immediately
3 Items in stock
Required: 2
37
0910994 - V6 Reverse Gear
0910994
0910994 ← 0910994

GEAR, REVERSE

GEAR, REVERSE
$257.82
You save $13.57. $271.39
Leaves in 3-5 days
Required: 1
58
0314008 - Water tube to exhaust Housing Grommet
0314008
0314008 ← 0314008

GROMMET, WATER TUBE

GROMMET, WATER TUBE
Notes: Also included in Water Pump Repair Kit 395060
$2.95
You save 13%. $3.39
Ships Immediately
5+ Items in stock
Required: 1
59
0338893 - Impeller Housing Cover
0338893 ← 0321159
0338893

COVER, IMPELLER HOUSING

COVER, IMPELLER HOUSING
Notes: Also included in Water Pump Repair Kit 395060
$8.99
You save 7%. $9.69
Ships Immediately
1 Items in stock
Required: 1
64
0306643 - Screw
0306643
0306643 ← 0306643

SCREW, COVER TO IMPELLER

SCREW, COVER TO IMPELLER
Notes: Also included in Water Pump Repair Kit 395060
$2.99
You save 17%. $3.59
Ships Immediately
3 Items in stock
Required: 2
75
0331107 - Impeller Key
0331107
0331107 ← 0331107

KEY, IMPELLER

KEY, IMPELLER
Notes: Also included in Water Pump Repair Kit 395060
$.99
You save 17%. $1.19
Ships Immediately
2 Items in stock
Required: 1
85
0313926 - Sleeve
0313926
0313926 ← 0313926

SLEEVE, PROPELLER

SLEEVE, PROPELLER
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
