1990 Evinrude Outboards 115 - VE115TXESB

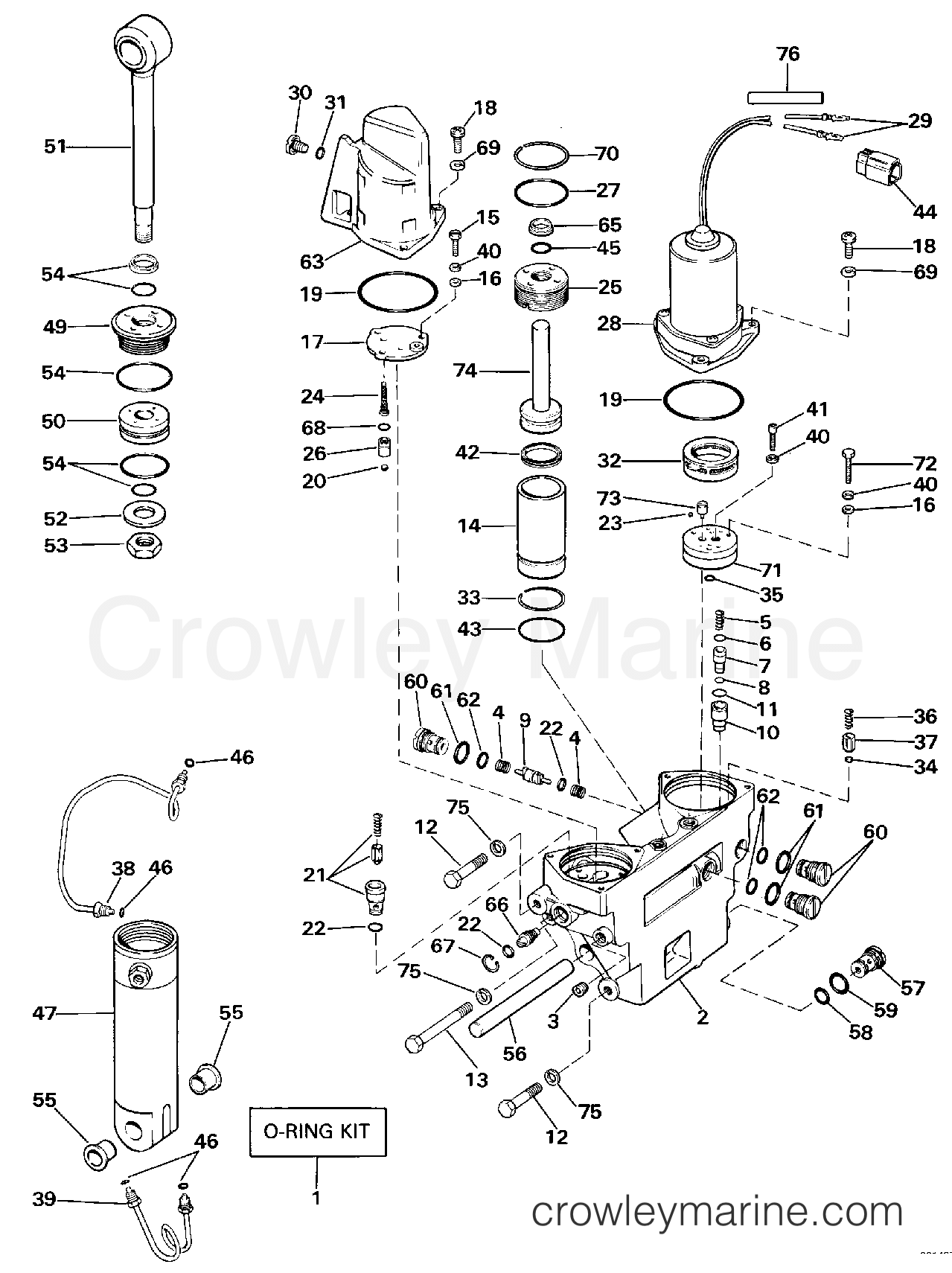

POWER TRIM/TILT HYDRAULIC ASSEMBLY section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1990 Evinrude Outboards 115 - VE115TXESB POWER TRIM/TILT HYDRAULIC ASSEMBLY section
Use two fingers to zoom
and move the diagram
1990 Evinrude Outboards 115 - VE115TXESB - POWER TRIM/TILT HYDRAULIC ASSEMBLY section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

3
0321164 - Adapter Plug, port & Starboard
0321164
0321164 ← 0321164

PLUG, LARGE, MANIFOLD

PLUG, LARGE, MANIFOLD
$12.99
You save 12%. $14.75
Ships Immediately
1 Items in stock
Required: 1
5
0325863 - Spring
0325863
0325863 ← 0325863

SPRING, RELIEF VALVE

SPRING, RELIEF VALVE
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
7
0325862 - Valve Core
0325862
0325862 ← 0325862

VALVE CORE, RELIEF VALVE

VALVE CORE, RELIEF VALVE
$33.99
You save $14.26. $48.25
Ships Immediately
1 Items in stock
Required: 1
9
0323848 - Pump control Piston
0323848
0323848 ← 0323848

PISTON, PUMP CONTROL

PISTON, PUMP CONTROL
$46.99
You save $19.76. $66.75
Ships Immediately
4 Items in stock
Required: 1
11
0326425 - O-Ring
0326425
0326425 ← 0326425

O-RING, VALVE SEAT

O-RING, VALVE SEAT
$7.13
You save 5%. $7.50
Leaves in 3-5 days
Required: 1
14
0320980 - Sleeve
0320980
0320980 ← 0320980

SLEEVE, TRIM CYLINDER

SLEEVE, TRIM CYLINDER
$84.95
You save $6.30. $91.25
Leaves in 3-5 days
Required: 2
16
0300154 - Washer
0300154
0300154 ← 0300154

WASHER

WASHER
$7.60
You save 5%. $8.00
Leaves in 3-5 days
Required: 4
25
0320788 - Trim Cylinder End Cap
0320788
0320788 ← 0320788

END CAP, TRIM CYLINDER

END CAP, TRIM CYLINDER
$103.08
You save $5.42. $108.50
Leaves in 3-5 days
Required: 2
29
0511657 - Ring Terminal
0511657
0511657 ← 0511657

TERMINAL

TERMINAL
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 2
0398606
0398606 - Brush & Seal Kit
0398606
0398606 ← 0398606

BRUSH & SEAL KIT

BRUSH & SEAL KIT
Notes: Not Shown 3 in. (76mm) Diameter Trim Motor, "S" Stamp On End Cap
$113.99
You save $11.01. $125.00
Ships Immediately
2 Items in stock
Required: 1
0583522
0583522 - Brush & Seal Assembly
0583522
0583522 ← 0583522

BRUSH & SEAL KIT

BRUSH & SEAL KIT
Notes: Not Shown 2.4 in. (61mm) Diameter Trim Motor, "S" Stamp On End Cap
$123.99
You save $53.26. $177.25
Ships Immediately
1 Items in stock
Required: 1
30
0321284 - Reservoir Plug
0321284
0321284 ← 0321284

PLUG, RESERVOIR

PLUG, RESERVOIR
$29.95
You save $1.80. $31.75
Leaves in 3-5 days
Required: 1
37
0122759 - Valve
0122759
0122759 ← 0122759

VALVE, PUMP RELIEF

VALVE, PUMP RELIEF
$34.95
You save $2.05. $37.00
Leaves in 3-5 days
Required: 1
52
0324385 - Rod end Washer
0324385
0324385 ← 0324385

WASHER, ROD END

WASHER, ROD END
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
53
0324390 - Hex Nut
0324390
0324390 ← 0324390

HEXHAUST NUT, ROD END

HEXHAUST NUT, ROD END
$16.15
You save 5%. $17.00
Leaves in 3-5 days
Required: 1
56
0321202 - Pivot Pin
0321202
0321202 ← 0321202

PIVOT PIN, SHOCK LOWER

PIVOT PIN, SHOCK LOWER
$34.95
You save $1.05. $36.00
Leaves in 3-5 days
Required: 1
68
0321542 - O-Ring
0321542
0321542 ← 0321542

O-RING, VALVE SEAT

O-RING, VALVE SEAT
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
71
0389836 - Oil Pump Assembly
0389836
0389836 ← 0389836

OIL PUMP ASSEMBLY.

OIL PUMP ASSEMBLY.
$434.95
You save $24.30. $459.25
Leaves in 3-5 days
Required: 1
