1990 Evinrude Outboards 115 - VE115TXESB

CYLINDER & CRANKCASE section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

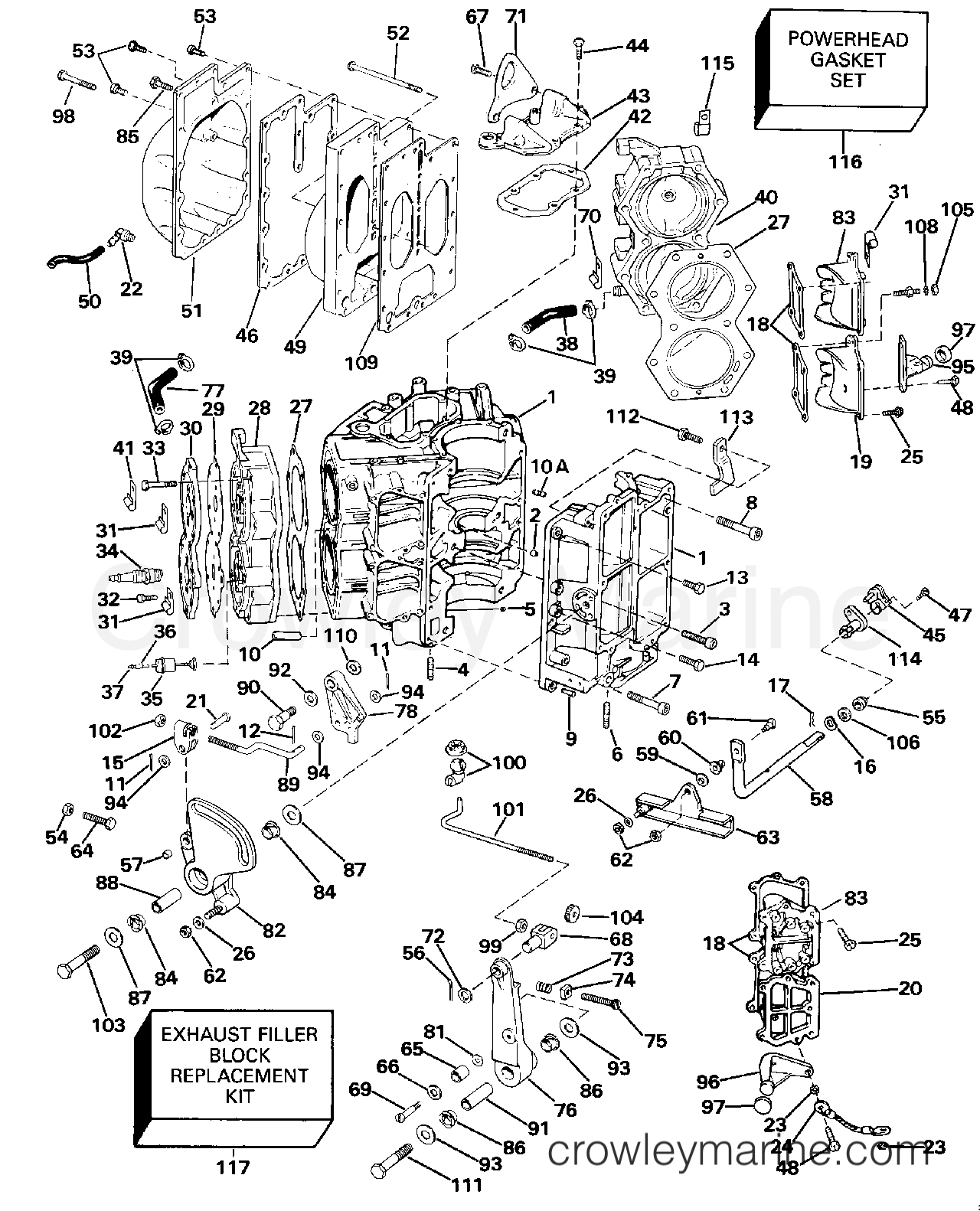

1990 Evinrude Outboards 115 - VE115TXESB CYLINDER & CRANKCASE section
Use two fingers to zoom
and move the diagram
1990 Evinrude Outboards 115 - VE115TXESB - CYLINDER & CRANKCASE section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

10A
0394884 - Check Valve Assembly
0394884
0394884 ← 0394884

CHECK VALVE

CHECK VALVE
$54.95
You save $2.80. $57.75
Leaves in 3-5 days
Required: 1
15
0397018 - Yoke Assembly
0397018
0397018 ← 0397018

YOKE & THUMBWHEEL

YOKE & THUMBWHEEL
$19.95
You save 5%. $20.89
Leaves in 6-8 days
Required: 1
17
0330941 - Pin-Retainer
0330941
0330941 ← 0330941

RETAINING PIN

RETAINING PIN
$7.99
You save 6%. $8.50
Ships Immediately
4 Items in stock
Required: 1
19
0323045 - Bypass Assembly Cover
0323045
0323045 ← 0323045

COVER, BYPASSEMBLY

COVER, BYPASSEMBLY
$19.99
You save 29%. $28.00
Ships Immediately
1 Items in stock
Required: 1
24
0376349 - Lead
0376349
0376349 ← 0376349

STRAP, GROUND

STRAP, GROUND
$6.99
You save 30%. $10.00
Leaves in 6-8 days
Required: 1
55
0332126 - Bushing
0332126
0332126 ← 0332126

BUSHING, SHIFT LEVER

BUSHING, SHIFT LEVER
$9.98
You save 5%. $10.50
Leaves in 3-5 days
Required: 1
58
0397044 - Shift Lever
0397044
0397044 ← 0397044

SHIFT LEVER

SHIFT LEVER
$54.95
You save $3.05. $58.00
Leaves in 6-8 days
Required: 1
59
0303887 - Washer
0303887
0303887 ← 0303887

WASHER

WASHER
$4.75
$4.75
Leaves in 3-5 days
Required: 1
60
0315101 - Bushing
0315101
0315101 ← 0315101

BUSHING

BUSHING
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
61
0323264 - Shoulder Pin
0323264
0323264 ← 0323264

PIN

PIN
$9.50
$9.50
Leaves in 6-8 days
Required: 1
62
0328064 - Nut
0328064
0328064 ← 0328064

NUT

NUT
$8.55
You save 5%. $9.00
Leaves in 3-5 days
Required: 3
67
0314515 - Screw
0314515
0314515 ← 0314515

SCREW, BRACKET

SCREW, BRACKET
Notes: 88 Models
$4.99
You save 24%. $6.59
Ships Immediately
5+ Items in stock
Required: 2
71
0323898 - Lift Bracket
0323898
0323898 ← 0323898

LIFT BRACKET

LIFT BRACKET
Notes: 88 Models
$26.60
You save $1.40. $28.00
Leaves in 6-8 days
Required: 1
73
0308993 - Idle Adjustment Screw Spring
0308993
0308993 ← 0308993

SPRING, IDLE ADJUST

SPRING, IDLE ADJUST
$7.99
You save 6%. $8.50
Ships Immediately
2 Items in stock
Required: 1
78
0330985 - Throttle Cam
0330985
0330985 ← 0330985

THROTTLE CAM

THROTTLE CAM
$68.40
You save $3.60. $72.00
Leaves in 6-8 days
Required: 1
88
0331577 - Sleeve
0331577
0331577 ← 0331577

SLEEVE, THROTTLE LEVER

SLEEVE, THROTTLE LEVER
$44.95
You save $2.55. $47.50
Leaves in 3-5 days
Required: 1
90
0330933 - Screw
0330933
0330933 ← 0330933

SCREW, THROTTLE CAM

SCREW, THROTTLE CAM
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
91
0331577 - Sleeve
0331577
0331577 ← 0331577

SLEEVE, SPARK CONTROL

SLEEVE, SPARK CONTROL
$44.95
You save $2.55. $47.50
Leaves in 3-5 days
Required: 1
95
0319217 - Support Brace
0319217
0319217 ← 0319217

SUPPORT BRACE, PORT

SUPPORT BRACE, PORT
$11.99
You save 27%. $16.50
Ships Immediately
1 Items in stock
Required: 1
96
0319218 - Support Brace
0319218
0319218 ← 0319218

SUPPORT BRACE. STARBOARD.

SUPPORT BRACE. STARBOARD.
Notes: 88 Models
$13.99
You save 30%. $20.00
Ships Immediately
1 Items in stock
Required: 1
101
0334739 - Spark Control Rod
0334739
0334739 ← 0334739

ROD, SPARK ADVANCE

ROD, SPARK ADVANCE
$28.50
You save $1.50. $30.00
Leaves in 6-8 days
Required: 1
102
0313022 - Lock Nut
0313022
0313022 ← 0313022

NUT, THROTTLE ROD

NUT, THROTTLE ROD
$7.99
You save 11%. $9.00
Ships Immediately
4 Items in stock
Required: 1
103
0317968 - Screw
0317968
0317968 ← 0317968

SCREW, THROTTLE LEVER

SCREW, THROTTLE LEVER
$11.99
You save 6%. $12.75
Ships Immediately
5+ Items in stock
Required: 1
111
0317968 - Screw
0317968
0317968 ← 0317968

SCREW, SPARK CONTROL

SCREW, SPARK CONTROL
$11.99
You save 6%. $12.75
Ships Immediately
5+ Items in stock
Required: 1
112
0124341 - Screw
0124341
0124341 ← 0124341

SCREW, IDLE STOP

SCREW, IDLE STOP
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
