1990 Johnson Outboards 40 - TJ40ELESF

POWER TRIM/TILT ELECTRICAL section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

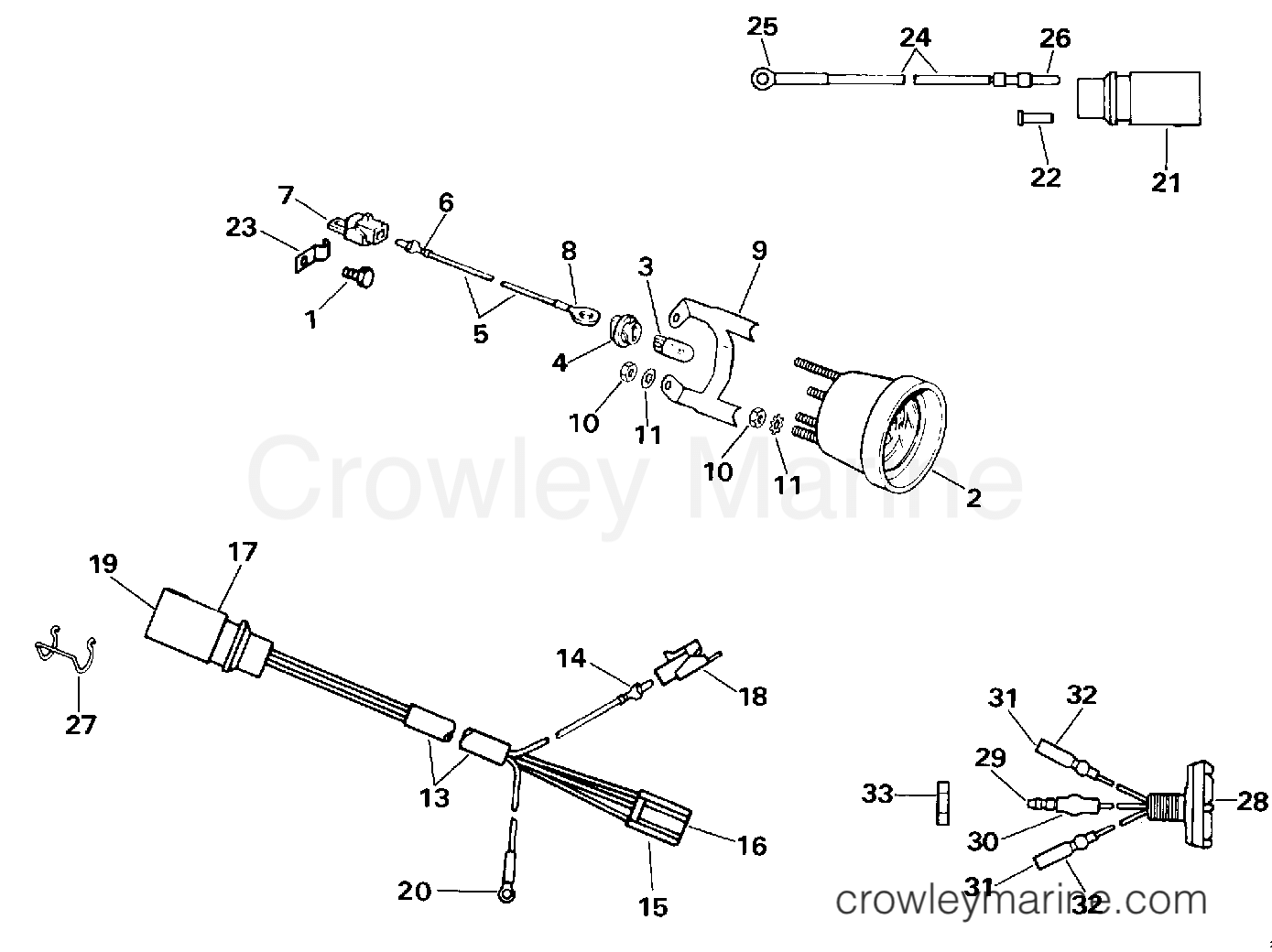

1990 Johnson Outboards 40 - TJ40ELESF POWER TRIM/TILT ELECTRICAL section
Use two fingers to zoom
and move the diagram
1990 Johnson Outboards 40 - TJ40ELESF - POWER TRIM/TILT ELECTRICAL section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
0310981 - Screw
0310981
0310981 ← 0310981

SCREW, CLAMP

SCREW, CLAMP
$3.33
You save 5%. $3.50
Leaves in 6-8 days
Required: 1
3
0125432 - Instrument Bulb
0125432
0125432 ← 0125432

BULB

BULB
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
4
0122553 - Bulb Socket
0122553
0122553 ← 0122553

SOCKET

SOCKET
$8.55
You save 5%. $9.00
Leaves in 3-5 days
Required: 1
5
0583255 - Trim Lead Assembly
0583255
0583255 ← 0583255

LEAD ASSEMBLY.

LEAD ASSEMBLY.
$5.49
$5.49
Leaves in 3-5 days
Required: 1
6
0310523 - Lead Terminal
0310523
0310523 ← 0310523

TERMINAL

TERMINAL
$5.69
$5.69
Leaves in 6-8 days
Required: 1
7
0310572 - 1 hole recept Connector
0310572
0310572 ← 0310572

HOUSING

HOUSING
$9.50
$9.50
Leaves in 3-5 days
Required: 1
10
0125410 - Nut
0125410
0125410 ← 0125410

NUT

NUT
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 6
11
0125411 - Lock Washer-
0125411
0125411 ← 0125411

WASHER

WASHER
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 6
14
0512904 - Terminal
0512904
0512904 ← 0512904

TERMINAL

TERMINAL
$.95
You save 5%. $1.00
Leaves in 6-8 days
Required: 1
15
0309474 - Connector
0309474
0309474 ← 0309474

CONNECTOR

CONNECTOR
$9.50
$9.50
Leaves in 3-5 days
Required: 1
16
0309433 - Terminal
0309433
0309433 ← 0309433

TERMINAL

TERMINAL
$9.50
$9.50
Leaves in 3-5 days
Required: 3
17
0512754 - 5-Pin Connector
0512754
0512754 ← 0512754

CONNECTOR, 5 PIN

CONNECTOR, 5 PIN
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
18
0310572 - 1 hole recept Connector
0310572
0310572 ← 0310572

CONNECTOR

CONNECTOR
$9.50
$9.50
Leaves in 3-5 days
Required: 1
19
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 17%. $1.19
Ships Immediately
5+ Items in stock
Required: 5
20
0511829 - Terminal Ring
0511829
0511829 ← 0511829

RING TERMINAL

RING TERMINAL
$.69
$.69
Leaves in 3-5 days
Required: 1
22
0511496 - Plug-Connector
0511496
0511496 ← 0511496

PLUG CONNECTOR

PLUG CONNECTOR
$5.99
You save 25%. $8.00
Ships Immediately
1 Items in stock
Required: 2
25
0510151 - Ring Terminal
0510151
0510151 ← 0510151

TERMINAL

TERMINAL
$1.43
You save 5%. $1.50
Leaves in 6-8 days
Required: 1
26
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 17%. $1.19
Ships Immediately
5+ Items in stock
Required: 1
31
0512876 - Socket Terminal
0512876
0512876 ← 0512876

SOCKET TERMINAL

SOCKET TERMINAL
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 2
32
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE, SOCKET

SLEEVE, SOCKET
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 2
