1990 Johnson Outboards 40 - TJ40ELESF

IGNITION SYSTEM - ELECTRIC START TE-TTL MODELS section

Change Section

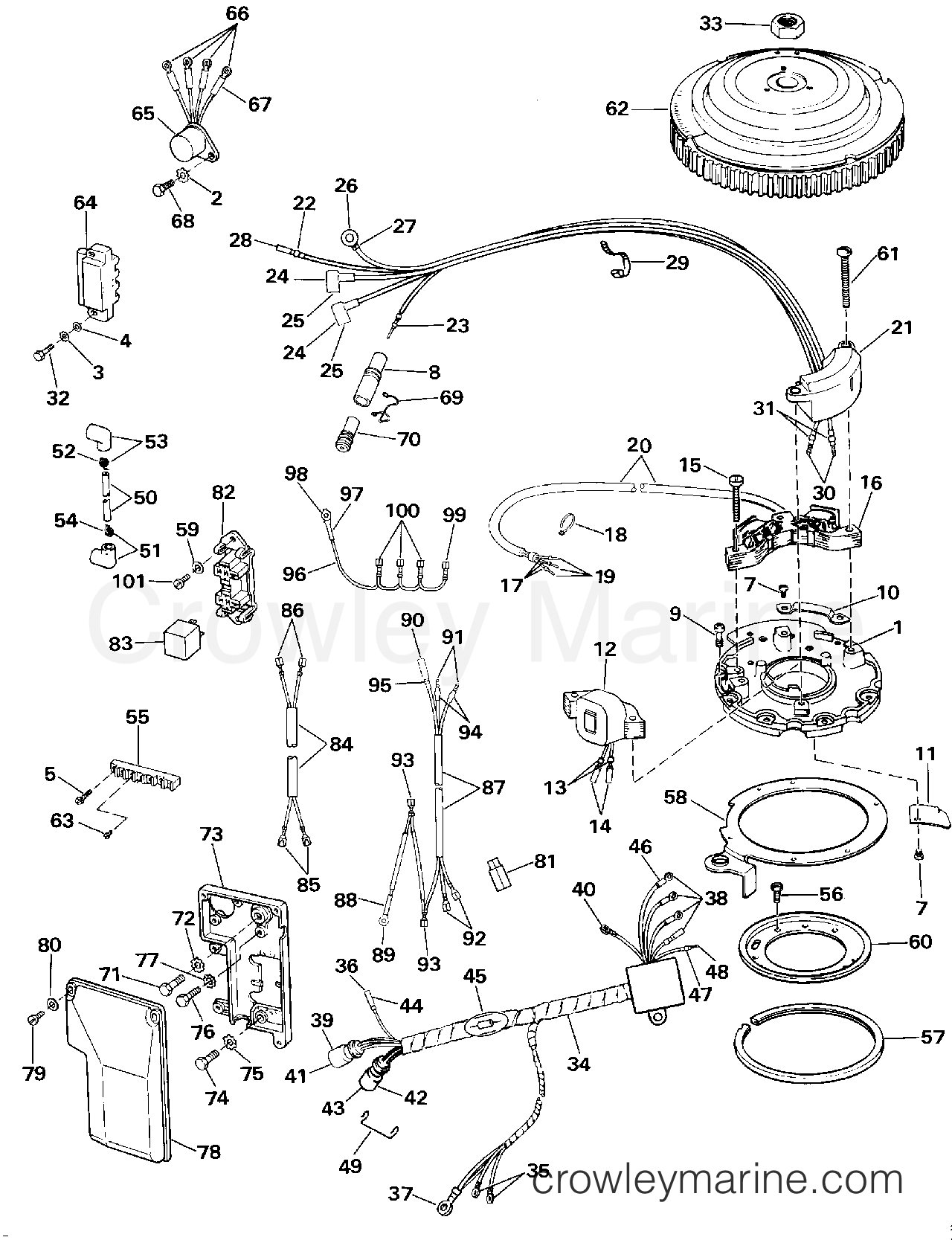

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1990 Johnson Outboards 40 - TJ40ELESF IGNITION SYSTEM - ELECTRIC START TE-TTL MODELS section
Use two fingers to zoom
and move the diagram
1990 Johnson Outboards 40 - TJ40ELESF - IGNITION SYSTEM - ELECTRIC START TE-TTL MODELS section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

8
0513357 - 1 pin recept Temperature Switch Connector
0513357
0513357 ← 0513357

CONNECTOR

CONNECTOR
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
9
0511460 - Retainer Screw
0511460
0511460 ← 0511460

SCREW, RETAINER

SCREW, RETAINER
$9.50
$9.50
Leaves in 3-5 days
Required: 5
10
0511458 - Leads Clamp
0511458
0511458 ← 0511458

CLAMP, LEADS

CLAMP, LEADS
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
11
0511459 - Leads Cover
0511459
0511459 ← 0511459

COVER, LEADS

COVER, LEADS
$9.50
$9.50
Leaves in 3-5 days
Required: 1
13
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE

SLEEVE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 2
14
0512876 - Socket Terminal
0512876
0512876 ← 0512876

SOCKET

SOCKET
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 2
17
0512136 - Tubing
0512136
0512136 ← 0512136

TUBING

TUBING
$3.79
You save 5%. $3.99
Leaves in 6-8 days
Required: 3
18
0318322 - Tie Strap
0318322
0318322 ← 0318322

TIE STRAP

TIE STRAP
$.29
$.29
Ships Immediately
5+ Items in stock
Required: 1
20
0511601 - Tubing
0511601
0511601 ← 0511601

TUBING

TUBING
$7.13
You save 5%. $7.50
Leaves in 3-5 days
Required: 1
22
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE

SLEEVE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
23
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 17%. $1.19
Ships Immediately
5+ Items in stock
Required: 1
26
0511829 - Terminal Ring
0511829
0511829 ← 0511829

TERMINAL, RING

TERMINAL, RING
$.69
$.69
Leaves in 3-5 days
Required: 1
28
0512876 - Socket Terminal
0512876
0512876 ← 0512876

TERMINAL, SOCKET

TERMINAL, SOCKET
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 1
36
0512876 - Socket Terminal
0512876
0512876 ← 0512876

SOCKET TERMINAL

SOCKET TERMINAL
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 1
37
0330100 - Ring Terminal
0330100
0330100 ← 0330100

RING TERMINAL

RING TERMINAL
$3.56
You save 5%. $3.75
Leaves in 3-5 days
Required: 1
38
0511829 - Terminal Ring
0511829
0511829 ← 0511829

RING TERMINAL

RING TERMINAL
$.69
$.69
Leaves in 3-5 days
Required: 4
42
0512750 - Connector
0512750
0512750 ← 0512750

CONNECTOR

CONNECTOR
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
43
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 17%. $1.19
Ships Immediately
5+ Items in stock
Required: 4
44
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

INSULATING SLEEVE

INSULATING SLEEVE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
49
0512742 - Retainer
0512742
0512742 ← 0512742

RETAINER

RETAINER
$8.55
You save 5%. $9.00
Leaves in 3-5 days
Required: 1
52
0510231 - Spark Plug Receptacle
0510231
0510231 ← 0510231

TERMINAL, SPRING

TERMINAL, SPRING
$4.50
$4.50
Leaves in 3-5 days
Required: 1
54
0510231 - Spark Plug Receptacle
0510231
0510231 ← 0510231

TERMINAL, SPRING

TERMINAL, SPRING
$4.50
$4.50
Leaves in 3-5 days
Required: 1
55
0512762 - Terminal Block
0512762
0512762 ← 0512762

TERMINAL BLOCK

TERMINAL BLOCK
$12.63
You save 5%. $13.29
Leaves in 3-5 days
Required: 1
58
0332790 - Retainer
0332790
0332790 ← 0332790

RETAINER, SUPPORT

RETAINER, SUPPORT
$36.10
You save $1.90. $38.00
Leaves in 3-5 days
Required: 1
69
0512741 - Retainer
0512741
0512741 ← 0512741

RETAINER

RETAINER
$108.54
You save $5.71. $114.25
Leaves in 3-5 days
Required: 1
70
0513356 - 1 Socket Connector, Water Temperature
0513356
0513356 ← 0513356

CONNECTOR

CONNECTOR
$11.58
You save 5%. $12.19
Leaves in 3-5 days
Required: 1
74
0335020 - 1/4-20 Screw
0335020
0335020 ← 0335020

SCREW, BRACKET, MOUNTING

SCREW, BRACKET, MOUNTING
$6.99
You save 9%. $7.69
Ships Immediately
2 Items in stock
Required: 1
78
0333757 - Cover
0333757
0333757 ← 0333757

COVER, BRACKET

COVER, BRACKET
$17.95
You save 5%. $18.89
Leaves in 6-8 days
Required: 1
79
0306643 - Screw
0306643
0306643 ← 0306643

SCREW, COVER TO BRACKET.

SCREW, COVER TO BRACKET.
$2.99
You save 17%. $3.59
Ships Immediately
1 Items in stock
Required: 2
85
0511656 - Trim motor Terminal
0511656
0511656 ← 0511656

TERMINAL

TERMINAL
Notes: TTL Models
$3.99
You save 23%. $5.19
Ships Immediately
1 Items in stock
Required: 2
86
0513166 - Terminal
0513166
0513166 ← 0513166

TERMINAL, RECEPTACLE

TERMINAL, RECEPTACLE
Notes: TTL Models
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 2
87
0583956 - Cable Assembly
0583956
0583956 ← 0583956

CABLE ASSEMBLY.

CABLE ASSEMBLY.
Notes: TTL Models
$21.75
You save $1.14. $22.89
Leaves in 6-8 days
Required: 1
90
0512876 - Socket Terminal
0512876
0512876 ← 0512876

TERMINAL, SOCKET

TERMINAL, SOCKET
Notes: TTL Models
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 1
92
0513166 - Terminal
0513166
0513166 ← 0513166

TERMINAL, RECEPTACLE

TERMINAL, RECEPTACLE
Notes: TTL Models
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 2
93
0513167 - Terminal
0513167
0513167 ← 0513167

TERMINAL, RECEPTACLE

TERMINAL, RECEPTACLE
Notes: TTL Models
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 2
94
0513185 - Bullet Term Sleeve
0513185
0513185 ← 0513185

SLEEVE

SLEEVE
Notes: TTL Models
$4.99
You save 13%. $5.75
Ships Immediately
1 Items in stock
Required: 2
95
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE

SLEEVE
Notes: TTL Models
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
96
0583957 - Cable Assembly
0583957
0583957 ← 0583957

CABLE ASSEMBLY.

CABLE ASSEMBLY.
Notes: TTL Models
$12.11
You save 5%. $12.75
Leaves in 3-5 days
Required: 1
98
0512550 - Terminal Ring
0512550
0512550 ← 0512550

TERMINAL, RING

TERMINAL, RING
Notes: TTL Models
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 1
99
0513166 - Terminal
0513166
0513166 ← 0513166

TERMINAL, RECEPTACLE

TERMINAL, RECEPTACLE
Notes: TTL Models
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 1
100
0513167 - Terminal
0513167
0513167 ← 0513167

TERMINAL, RECEPTACLE

TERMINAL, RECEPTACLE
Notes: TTL Models
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 3
