1990 Johnson Outboards 40 - TJ40ELESF

IGNITION SYSTEM - ELECTRIC START TL MODELS section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

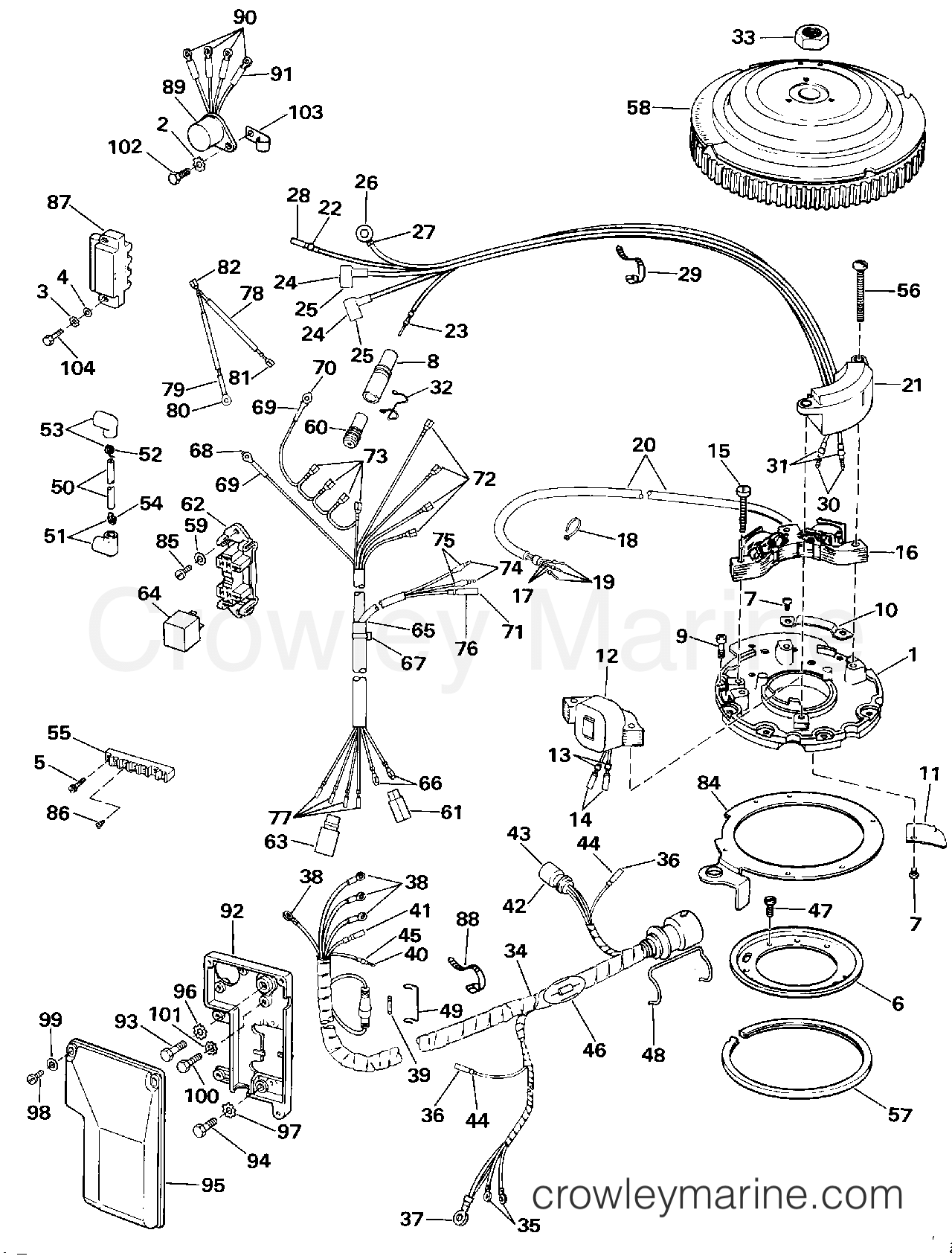

1990 Johnson Outboards 40 - TJ40ELESF IGNITION SYSTEM - ELECTRIC START TL MODELS section
Use two fingers to zoom
and move the diagram
1990 Johnson Outboards 40 - TJ40ELESF - IGNITION SYSTEM - ELECTRIC START TL MODELS section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

8
0513357 - 1 pin recept Temperature Switch Connector
0513357
0513357 ← 0513357

CONNECTOR

CONNECTOR
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
9
0511460 - Retainer Screw
0511460
0511460 ← 0511460

SCREW, RETAINER

SCREW, RETAINER
$9.50
$9.50
Leaves in 3-5 days
Required: 5
10
0511458 - Leads Clamp
0511458
0511458 ← 0511458

CLAMP, LEADS

CLAMP, LEADS
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
11
0511459 - Leads Cover
0511459
0511459 ← 0511459

COVER, LEADS

COVER, LEADS
$9.50
$9.50
Leaves in 3-5 days
Required: 1
13
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE

SLEEVE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 2
14
0512876 - Socket Terminal
0512876
0512876 ← 0512876

SOCKET

SOCKET
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 2
17
0512136 - Tubing
0512136
0512136 ← 0512136

TUBING

TUBING
$3.79
You save 5%. $3.99
Leaves in 6-8 days
Required: 3
18
0318322 - Tie Strap
0318322
0318322 ← 0318322

TIE STRAP

TIE STRAP
$.29
$.29
Ships Immediately
5+ Items in stock
Required: 1
20
0511601 - Tubing
0511601
0511601 ← 0511601

TUBING

TUBING
$7.13
You save 5%. $7.50
Leaves in 3-5 days
Required: 1
22
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE

SLEEVE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
23
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 17%. $1.19
Ships Immediately
5+ Items in stock
Required: 1
26
0511829 - Terminal Ring
0511829
0511829 ← 0511829

TERMINAL, RING

TERMINAL, RING
$.69
$.69
Leaves in 3-5 days
Required: 1
28
0512876 - Socket Terminal
0512876
0512876 ← 0512876

TERMINAL, SOCKET

TERMINAL, SOCKET
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 1
32
0512741 - Retainer
0512741
0512741 ← 0512741

RETAINER

RETAINER
$108.54
You save $5.71. $114.25
Leaves in 3-5 days
Required: 1
34
0583649 - Engine Cable Assembly
0583649
0583649 ← 0583649

MOTOR CABLE ASSEMBLY.

MOTOR CABLE ASSEMBLY.
$164.95
You save $9.05. $174.00
Leaves in 3-5 days
Required: 1
36
0512876 - Socket Terminal
0512876
0512876 ← 0512876

SOCKET TERMINAL

SOCKET TERMINAL
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 2
42
0512748 - Female 3 Pin Terminal Connector
0512748
0512748 ← 0512748

CONNECTOR

CONNECTOR
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
43
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 17%. $1.19
Ships Immediately
5+ Items in stock
Required: 3
44
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

INSULATING SLEEVE

INSULATING SLEEVE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 2
48
0315182 - Clamp
0315182
0315182 ← 0315182

CLAMP, CABLE

CLAMP, CABLE
$24.95
You save $1.80. $26.75
Leaves in 3-5 days
Required: 1
52
0510231 - Spark Plug Receptacle
0510231
0510231 ← 0510231

TERMINAL, SPRING

TERMINAL, SPRING
$4.50
$4.50
Leaves in 3-5 days
Required: 1
54
0510231 - Spark Plug Receptacle
0510231
0510231 ← 0510231

TERMINAL, SPRING

TERMINAL, SPRING
$4.50
$4.50
Leaves in 3-5 days
Required: 1
55
0512762 - Terminal Block
0512762
0512762 ← 0512762

TERMINAL BLOCK

TERMINAL BLOCK
$12.63
You save 5%. $13.29
Leaves in 3-5 days
Required: 1
60
0513356 - 1 Socket Connector, Water Temperature
0513356
0513356 ← 0513356

CONNECTOR

CONNECTOR
$11.58
You save 5%. $12.19
Leaves in 3-5 days
Required: 1
66
0511656 - Trim motor Terminal
0511656
0511656 ← 0511656

TERMINAL

TERMINAL
$3.99
You save 23%. $5.19
Ships Immediately
1 Items in stock
Required: 2
70
0512550 - Terminal Ring
0512550
0512550 ← 0512550

TERMINAL, RING

TERMINAL, RING
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 1
71
0512876 - Socket Terminal
0512876
0512876 ← 0512876

TERMINAL, SOCKET

TERMINAL, SOCKET
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 1
72
0513166 - Terminal
0513166
0513166 ← 0513166

TERMINAL, RECP.

TERMINAL, RECP.
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 4
73
0513167 - Terminal
0513167
0513167 ← 0513167

TERMINAL, RECP.

TERMINAL, RECP.
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 4
76
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE

SLEEVE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
78
0583706 - Lead Assembly
0583706
0583706 ← 0583706

LEAD ASSEMBLY

LEAD ASSEMBLY
$11.68
You save 5%. $12.29
Leaves in 6-8 days
Required: 1
81
0513166 - Terminal
0513166
0513166 ← 0513166

TERMINAL, RECP.

TERMINAL, RECP.
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 1
82
0513167 - Terminal
0513167
0513167 ← 0513167

TERMINAL, RECP.

TERMINAL, RECP.
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 1
84
0332790 - Retainer
0332790
0332790 ← 0332790

RETAINER, SUPPORT

RETAINER, SUPPORT
$36.10
You save $1.90. $38.00
Leaves in 3-5 days
Required: 1
85
0324064 - Screw
0324064
0324064 ← 0324064

SCREW, BRACKET

SCREW, BRACKET
$4.59
$4.59
Leaves in 6-8 days
Required: 2
94
0335020 - 1/4-20 Screw
0335020
0335020 ← 0335020

SCREW, BRACKET TO BLOCK

SCREW, BRACKET TO BLOCK
$6.99
You save 9%. $7.69
Ships Immediately
2 Items in stock
Required: 1
95
0333757 - Cover
0333757
0333757 ← 0333757

COVER, BRACKET

COVER, BRACKET
$17.95
You save 5%. $18.89
Leaves in 6-8 days
Required: 1
98
0306643 - Screw
0306643
0306643 ← 0306643

SCREW, COVER TO BRACKET.

SCREW, COVER TO BRACKET.
$2.99
You save 17%. $3.59
Ships Immediately
2 Items in stock
Required: 2
101
0303701 - Lockwasher
0303701
0303701 ← 0303701

WASHER

WASHER
$5.75
$5.75
Leaves in 3-5 days
Required: 1
103
0310442 - Clamp
0310442
0310442 ← 0310442

CLAMP, LEADS

CLAMP, LEADS
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
