1990 Johnson Outboards 9.9 - TJ10ELESC

LOWER ENGINE COVER section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

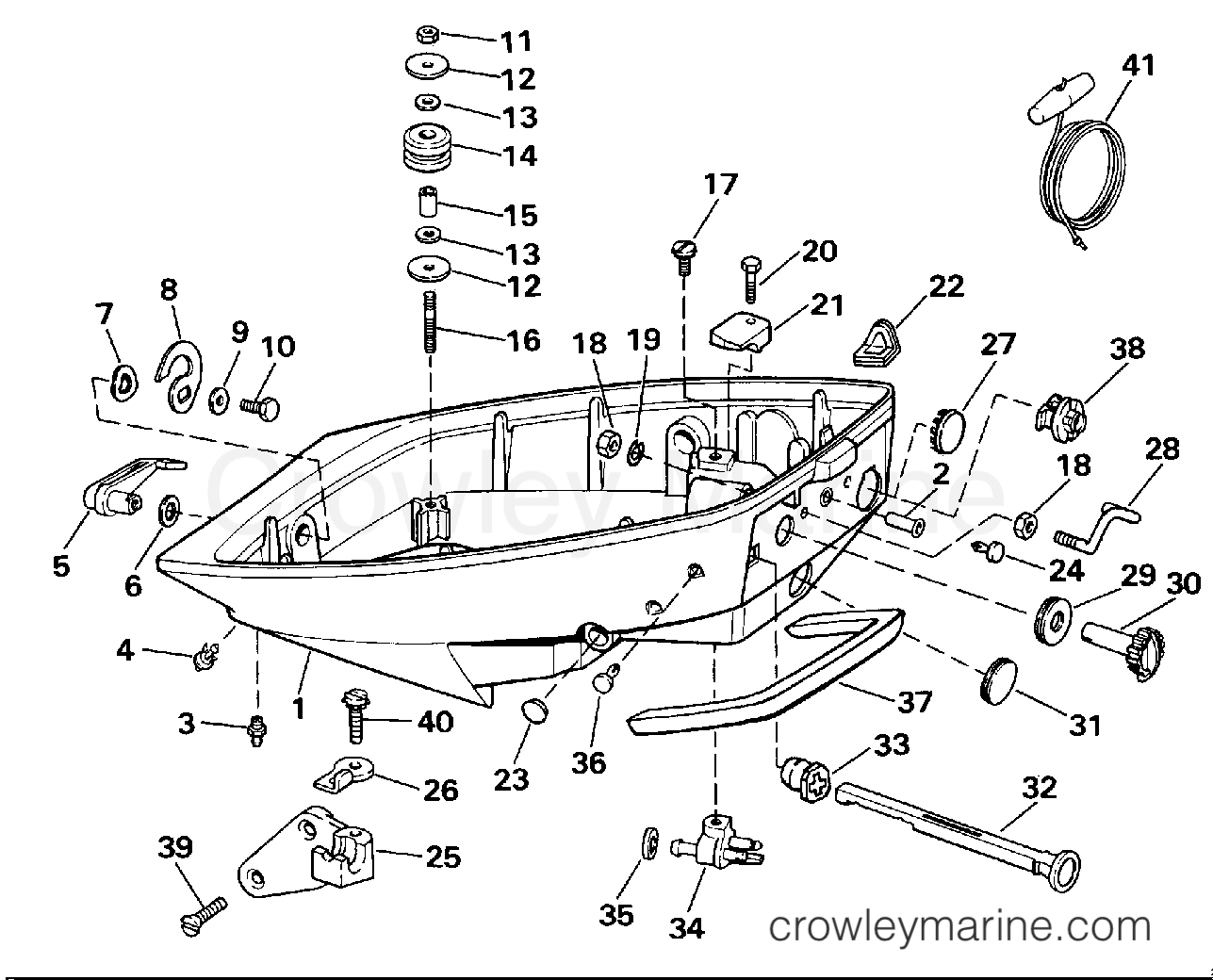

1990 Johnson Outboards 9.9 - TJ10ELESC LOWER ENGINE COVER section
Use two fingers to zoom
and move the diagram
1990 Johnson Outboards 9.9 - TJ10ELESC - LOWER ENGINE COVER section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
0431871 - ENGINE COVER, Lower
0431871
0431871 ← 0431871

ENGINE COVER, LOWER

ENGINE COVER, LOWER
Notes: 10RE - 10RLE - 15RE - 15RLE 10EE - 10ELE - 15EE - 15ELE Remote Electric Models TE10RLE - TJ10RLETE10ELE - TJ10ELE
$222.37
$222.37
No Longer Available
Search Nationwide Inventory
Required: 1
10
0912127 - Handle& shaft Assembly. Screw
0912127
0912127 ← 0912127

SCREW, LATCH TO HANDLE

SCREW, LATCH TO HANDLE
$3.99
You save 29%. $5.59
Ships Immediately
2 Items in stock
Required: 1
13
0331249 - Washer
0331249
0331249 ← 0331249

WASHER, MOUNT, SMALL

WASHER, MOUNT, SMALL
$5.99
You save 30%. $8.50
Ships Immediately
1 Items in stock
Required: 6
17
0329265 - SCREW, Fuel connector
0329265
0329265 ← 0329265

SCREW, FUEL CONNECTOR

SCREW, FUEL CONNECTOR
$2.99
You save 25%. $3.99
Ships Immediately
1 Items in stock
Required: 1
19
0306546 - Lockwasher
0306546
0306546 ← 0306546

WASHER, ROPE GUIDE

WASHER, ROPE GUIDE
Notes: 10SELE Models Only
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
20
0308825 - Screw
0308825
0308825 ← 0308825

SCREW, RETAINER

SCREW, RETAINER
$7.69
You save 5%. $8.09
Leaves in 3-5 days
Required: 1
24
0335306 - Starter Rope Plug
0335306
0335306 ← 0335306

PLUG, STARTER ROPE

PLUG, STARTER ROPE
Notes: Remote Electric Models
$2.38
You save 5%. $2.50
Leaves in 6-8 days
Required: 1
25
0321637 - Shift Bracket
0321637
0321637 ← 0321637

SHIFT BRACKET, CABLE

SHIFT BRACKET, CABLE
Notes: Remote Electric Models
$74.95
You save $4.05. $79.00
Leaves in 3-5 days
Required: 1
31
0335779 - Cables Grommet
0335779
0335779 ← 0335779

GROMMET, CABLES

GROMMET, CABLES
Notes: Remote Electric Models
$5.95
$6.00
Leaves in 6-8 days
Required: 1
31
0319575 - Grommet
0319575
0319575 ← 0319575

GROMMET, BLANK, LOWER ENGINE COVER

GROMMET, BLANK, LOWER ENGINE COVER
Notes: Rope Start Models Only
$18.99
You save 30%. $27.19
Ships Immediately
1 Items in stock
Required: 1
31
0319608 - Grommet
0319608
0319608 ← 0319608

GROMMET, CABLE, LOWER ENGINE COVER

GROMMET, CABLE, LOWER ENGINE COVER
Notes: Electric Start Models Only
$5.99
You save 33%. $9.00
Ships Immediately
1 Items in stock
Required: 1
37
0327428 - Seal
0327428
0327428 ← 0327428

SEAL, LOWER COVER

SEAL, LOWER COVER
$18.05
You save 5%. $19.00
Leaves in 6-8 days
Required: 1
39
0319954 - Screw
0319954
0319954 ← 0319954

SCREW, BRACKET. TO COVER

SCREW, BRACKET. TO COVER
Notes: Remote Electric Models
$7.60
You save 5%. $8.00
Leaves in 3-5 days
Required: 2
40
0332111 - Screw
0332111
0332111 ← 0332111

SCREW, CLAMP

SCREW, CLAMP
Notes: Remote Electric Models
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
