1990 Johnson Outboards 9.9 - TJ10ELESC

IGNITION section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

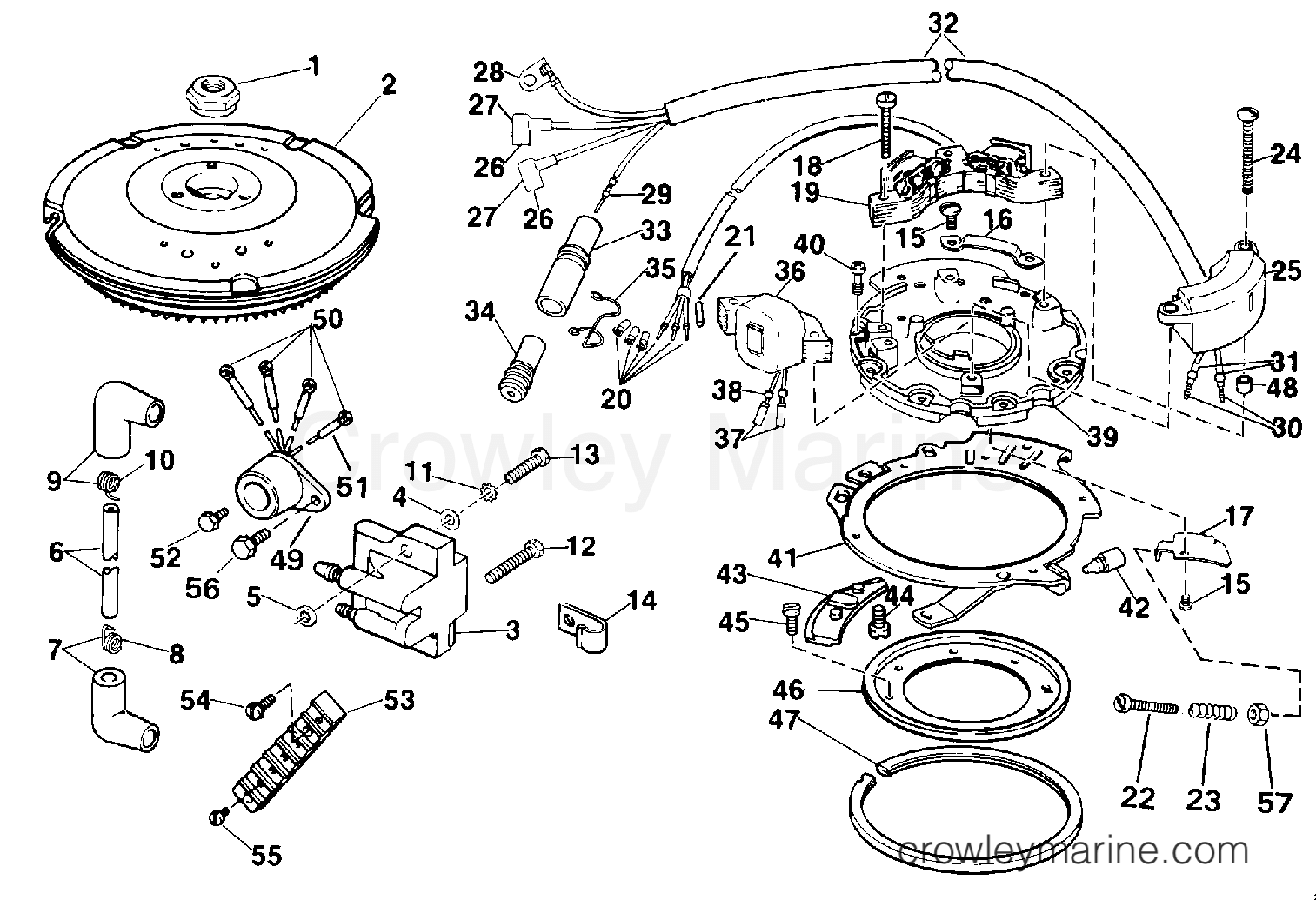

1990 Johnson Outboards 9.9 - TJ10ELESC IGNITION section
Use two fingers to zoom
and move the diagram
1990 Johnson Outboards 9.9 - TJ10ELESC - IGNITION section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2
0583913 - Flywheel Assembly
0583913
0583913 ← 0583913

FLYWHEEL ASSEMBLY

FLYWHEEL ASSEMBLY
Notes: Rope Start Models
$169.95
You save $10.05. $180.00
Leaves in 6-8 days
Required: 1
8
0510231 - Spark Plug Receptacle
0510231
0510231 ← 0510231

TERMINAL, SPRING

TERMINAL, SPRING
$4.50
$4.50
Leaves in 3-5 days
Required: 1
10
0510231 - Spark Plug Receptacle
0510231
0510231 ← 0510231

TERMINAL, SPRING

TERMINAL, SPRING
$4.50
$4.50
Leaves in 3-5 days
Required: 1
18
0309545 - Screw
0309545
0309545 ← 0309545

SCREW, CHARGE COIL MOUNTING.

SCREW, CHARGE COIL MOUNTING.
Notes: Electric Start Models Remote Elec. Models
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
18
0309545 - Screw
0309545
0309545 ← 0309545

SCREW, STATOR & CHARGE COIL MOUNTING.

SCREW, STATOR & CHARGE COIL MOUNTING.
Notes: Electric Start Models Remote Elec. Models
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 3
23
0331591 - Idle Screw Spring-
0331591
0331591 ← 0331591

SPRING, IDLE STOP

SPRING, IDLE STOP
Notes: Remote Elec. Models
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
35
0512741 - Retainer
0512741
0512741 ← 0512741

RETAINER, CONNECTORS

RETAINER, CONNECTORS
$108.54
You save $5.71. $114.25
Leaves in 3-5 days
Required: 1
37
0512876 - Socket Terminal
0512876
0512876 ← 0512876

TERMINAL, SOCKET

TERMINAL, SOCKET
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 2
38
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE, RECEPTACLE

SLEEVE, RECEPTACLE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 2
46
0322102 - Support
0322102
0322102 ← 0322102

PLATE, SUPPORT

PLATE, SUPPORT
$84.99
You save $36.01. $121.00
Ships Immediately
2 Items in stock
Required: 1
48
0513029 - Spacer
0513029
0513029 ← 0513029

SPACER

SPACER
Notes: Rope Start Models
$4.95
$5.00
Leaves in 6-8 days
Required: 1
52
0315260 - Screw
0315260
0315260 ← 0315260

SCREW, RECTIFIER, SHORT

SCREW, RECTIFIER, SHORT
Notes: Electric Start Models Remote Elec. Models
$4.99
You save 13%. $5.75
Ships Immediately
1 Items in stock
Required: 1
53
0512762 - Terminal Block
0512762
0512762 ← 0512762

TERMINAL BLOCK

TERMINAL BLOCK
Notes: Electric Start Models Remote Elec. Models
$12.63
You save 5%. $13.29
Leaves in 3-5 days
Required: 1
54
0510195 - SCREW
0510195
0510195 ← 0510195

SCREW, TERMINAL BLOCK MOUNTING.

SCREW, TERMINAL BLOCK MOUNTING.
Notes: Electric Start Models Remote Elec. Models
$2.99
You save 25%. $3.96
Ships Immediately
1 Items in stock
Required: 2

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
