1990 Johnson Outboards 9.9 - TJ10ELESC

FUEL PUMP - ELECTRIC START MODELS section

Change Section

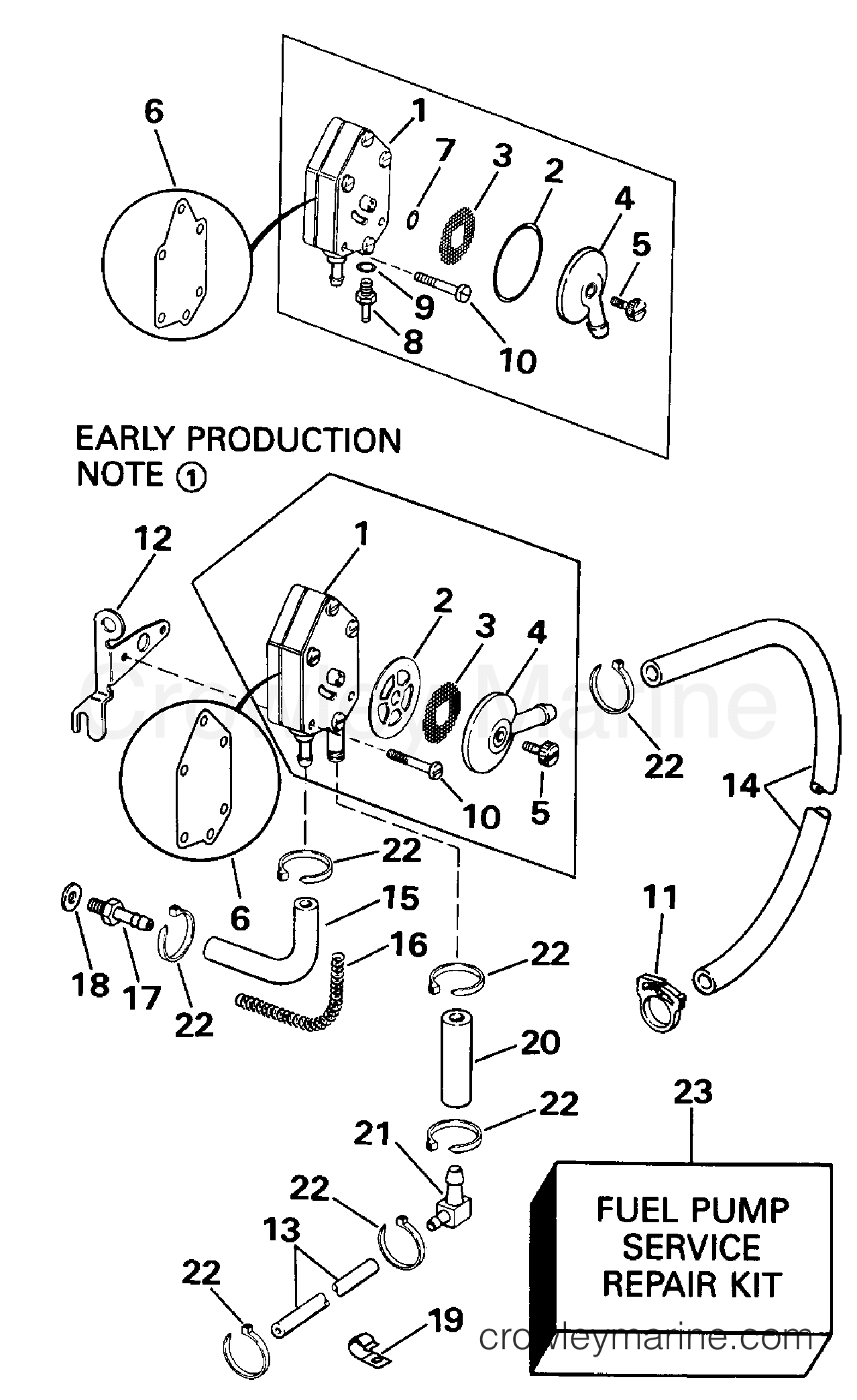

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1990 Johnson Outboards 9.9 - TJ10ELESC FUEL PUMP - ELECTRIC START MODELS section
Use two fingers to zoom
and move the diagram
1990 Johnson Outboards 9.9 - TJ10ELESC - FUEL PUMP - ELECTRIC START MODELS section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
0438560 - PUMP AY,FUEL
0438560 ← 0398867
0438560

FUEL PUMP ASSEMBLY.

FUEL PUMP ASSEMBLY.
Notes: Early Production Fuel Pump with Cast Fitting
$159.95
You save $9.05. $169.00
Leaves in 3-5 days
Required: 1
1
0438560 - PUMP AY,FUEL
0438560 ← 0433517
0438560

FUEL PUMP ASSEMBLY.

FUEL PUMP ASSEMBLY.
Notes: Late Production Fuel Pump with Threaded Fitting
$159.95
You save $9.05. $169.00
Leaves in 3-5 days
Required: 1
2
0332694 - Gasket (Cap to pump)
0332694
0332694 ← 0332694

GASKET, CAP TO PUMP

GASKET, CAP TO PUMP
Notes: Early Production Fuel Pump with Cast Fitting
$.00
You save 100%. $.00
Ships Immediately
1 Items in stock
Required: 1
2
0319528 - Motor to adaptor O-Ring
0319528
0319528 ← 0319528

O-RING, CAP TO PUMP

O-RING, CAP TO PUMP
Notes: Late Production Fuel Pump with Threaded Fitting
$4.95
You save 6%. $5.25
Ships Immediately
5+ Items in stock
Required: 1
4
0335335 - Fuel Inlet Cap
0335335
0335335 ← 0335335

CAP, FILTER

CAP, FILTER
Notes: Late Production Fuel Pump with Threaded Fitting
$9.95
You save 17%. $12.00
Ships Immediately
5+ Items in stock
Required: 1
7
0324660 - Fuel outlet nipple to pump O-Ring
0324660
0324660 ← 0324660

O-RING

O-RING
Notes: Late Production Fuel Pump with Threaded Fitting
$4.99
You save 5%. $5.25
Ships Immediately
1 Items in stock
Required: 1
8
0344040 - Nipple
0344040 ← 0335336
0344040

FITTING, FUEL

FITTING, FUEL
Notes: Late Production Fuel Pump with Threaded Fitting
$16.15
You save 5%. $17.00
Leaves in 3-5 days
Required: 1
10
0330184 - Screw
0330184
0330184 ← 0330184

SCREW, PUMP MOUNTING

SCREW, PUMP MOUNTING
$6.41
You save 5%. $6.75
Leaves in 3-5 days
Required: 2
12
0333734 - Bracket
0333734
0333734 ← 0333734

BRACKET, FUEL PUMP

BRACKET, FUEL PUMP
$132.53
You save $6.97. $139.50
Leaves in 3-5 days
Required: 1
15
 -
← 0

HOSE, FUEL PUMP PULSE 22 IN. (559MM)

HOSE, FUEL PUMP PULSE 22 IN. (559MM)
Notes: Cut to Length From 333485 - 1/4 in I.D., 25 ft. (7,6m) Roll
Items in stock
Required: 1
18
0303107 - Washer
0303107
0303107 ← 0303107

WASHER, PULSE FITTING

WASHER, PULSE FITTING
$5.99
You save 30%. $8.50
Ships Immediately
1 Items in stock
Required: 1
20
 -
← 0

HOSE, FUEL PUMP TO CARBURETOR

HOSE, FUEL PUMP TO CARBURETOR
Notes: Cut to Length From 327228 - 5/32 in I.D., 25 ft. (7,6m) Roll Late Production Fuel Pump with Threaded Fitting
Items in stock
Required: 1
20
 -
← 0

HOSE, PUMP TO ELBOW 1 1/2 IN. (38MM)

HOSE, PUMP TO ELBOW 1 1/2 IN. (38MM)
Notes: Cut to Length From 327228 - 5/32 in I.D., 25 ft. (7,6m) Roll Late Production Fuel Pump with Threaded Fitting
Items in stock
Required: 1
23
0398514 - Fuel Pump Repair Kit
0398514
0398514 ← 0398514

FUEL PUMP REPAIR KIT

FUEL PUMP REPAIR KIT
Notes: Early Production Fuel Pump with Cast Fitting
$32.99
You save 10%. $36.49
Ships Immediately
1 Items in stock
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
