1990 Electric Motors 24 Volt - BF4K

MOTOR AND ADAPTER GROUP/24 VOLT ("K" MODEL SUFFIX) section

Change Section

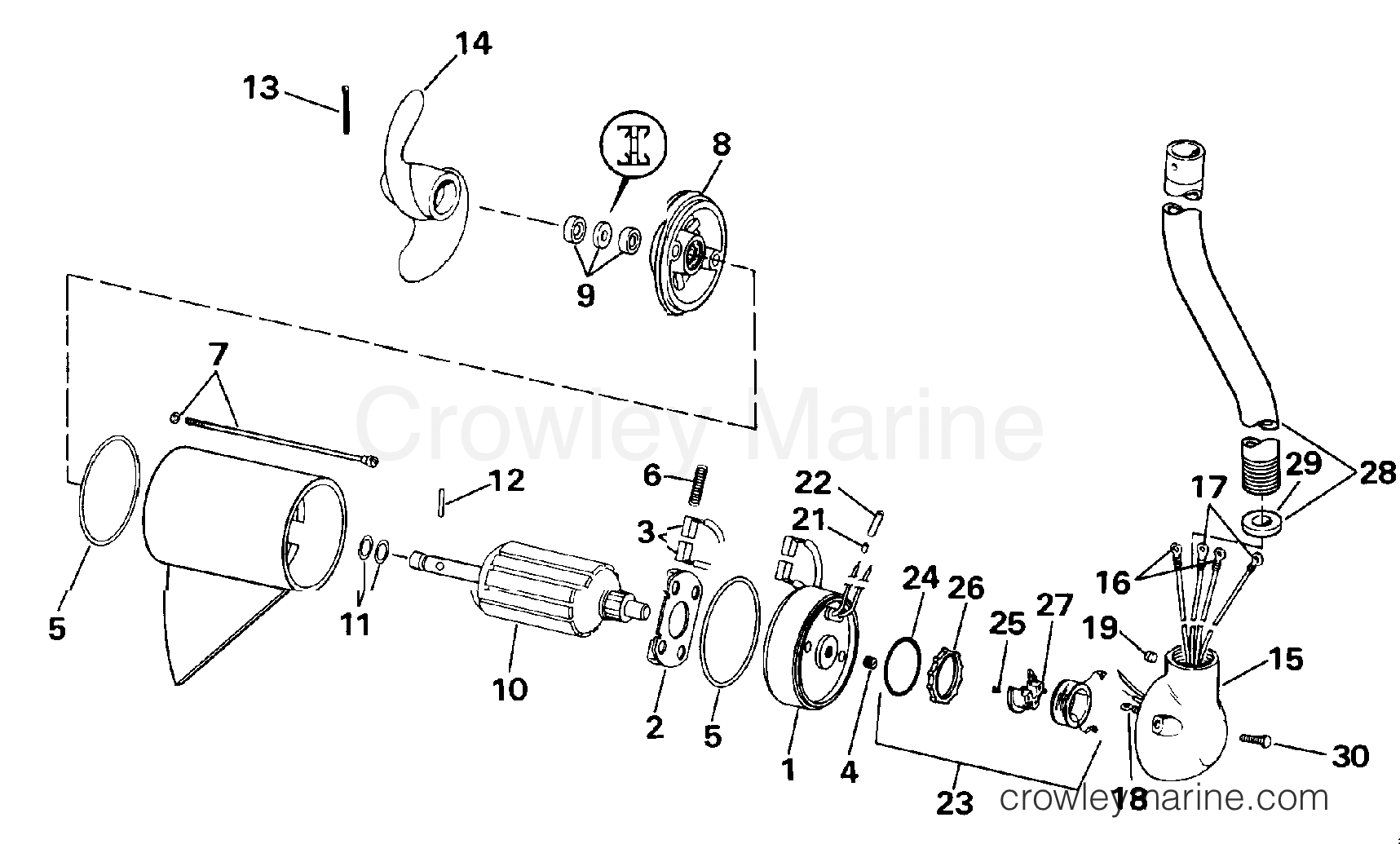

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1990 Electric Motors 24 Volt - BF4K MOTOR AND ADAPTER GROUP/24 VOLT ("K" MODEL SUFFIX) section
Use two fingers to zoom
and move the diagram
1990 Electric Motors 24 Volt - BF4K - MOTOR AND ADAPTER GROUP/24 VOLT ("K" MODEL SUFFIX) section
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

4
0330114 - End head Set Screw
0330114
0330114 ← 0330114

SET SCREW, END HEAD

SET SCREW, END HEAD
$1.90
You save 5%. $2.00
Leaves in 6-8 days
Required: 1
4
0334613 - Set Screw
0334613
0334613 ← 0334613

SET SCREW, END HEAD

SET SCREW, END HEAD
Notes: High Thrust Models Only Models With "S" Stamped on Starboard Side of Skeg
$4.95
$5.00
Leaves in 6-8 days
Required: 1
5
0392265 - O-Ring Assembly
0392265
0392265 ← 0392265

O-RING PACKAGE

O-RING PACKAGE
$18.52
You save 5%. $19.49
Leaves in 3-5 days
Required: 1
7
0398259 - Thru Bolt & Seal
0398259
0398259 ← 0398259

THRU-BOLT PACKAGE

THRU-BOLT PACKAGE
$7.60
You save 5%. $8.00
Leaves in 6-8 days
Required: 1
7
0434120 - Thru Bolt Package
0434120
0434120 ← 0434120

THRU-BOLT PACKAGE

THRU-BOLT PACKAGE
Notes: High Thrust Models Only
$18.61
You save 5%. $19.59
Leaves in 3-5 days
Required: 1
7
0583795 - Thru Bolt Kit
0583795
0583795 ← 0583795

THRU-BOLT PACKAGE

THRU-BOLT PACKAGE
Notes: Models With "S" Stamped on Starboard Side of Skeg
$11.77
You save 5%. $12.39
Leaves in 6-8 days
Required: 1
8
0433608 - Head Assembly Drive End
0433608
0433608 ← 0433608

HEAD ASSEMBLY., DRIVE END

HEAD ASSEMBLY., DRIVE END
Notes: High Thrust Models Only Models With "S" Stamped on Starboard Side of Skeg
$42.75
You save $2.25. $45.00
Leaves in 6-8 days
Required: 1
10
0434119 - ARMATURE ASSY.
0434119
0434119 ← 0434119

ARMATURE ASSEMBLY.

ARMATURE ASSEMBLY.
Notes: High Thrust Models Only
$59.99
You save $26.16. $86.15
Ships Immediately
1 Items in stock
Required: 1
11
0392266 - Thrust Washer Assembly
0392266
0392266 ← 0392266

THRUST WASHER PACKAGE.

THRUST WASHER PACKAGE.
$12.99
You save $1.01. $14.00
Ships Immediately
4 Items in stock
Required: 1
16
0510904 - Terminal
0510904
0510904 ← 0510904

TERMINAL, RING

TERMINAL, RING
$2.85
You save 5%. $3.00
Leaves in 6-8 days
Required: 4
18
0512891 - Ring Terminal
0512891
0512891 ← 0512891

TERMINAL, RING

TERMINAL, RING
$.95
You save 5%. $1.00
Leaves in 6-8 days
Required: 1
19
0321223 - Set Screw
0321223
0321223 ← 0321223

SET SCREW

SET SCREW
$6.99
You save 15%. $8.19
Leaves in 3-5 days
Required: 1
21
0513152 - Butt Splice
0513152
0513152 ← 0513152

SPLICE, WIRE

SPLICE, WIRE
$8.26
You save 5%. $8.69
Leaves in 3-5 days
Required: 2
22
0513153 - Tubing
0513153
0513153 ← 0513153

TUBE, HEAT SHRINK

TUBE, HEAT SHRINK
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 2
22
0512931 - Heat Shrink Tubing
0512931
0512931 ← 0512931

TUBE, HEAT SHRINK

TUBE, HEAT SHRINK
Notes: High Thrust Models Only
$3.41
You save 5%. $3.59
Leaves in 3-5 days
Required: 1
23
0398545 - Resistor Assembly
0398545
0398545 ← 0398545

RESISTOR ASSEMBLY.

RESISTOR ASSEMBLY.
$84.99
You save $10.70. $95.69
Ships Immediately
1 Items in stock
Required: 1
25
0319603 - Screw
0319603
0319603 ← 0319603

MOUNTING SCREW

MOUNTING SCREW
$7.31
You save 5%. $7.69
Leaves in 3-5 days
Required: 3
27
0326907 - Terminal Board
0326907
0326907 ← 0326907

TERMINAL BOARD

TERMINAL BOARD
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 1
