1986 Evinrude Outboards 275 - CE275TLCDC

CYLINDER & CRANKCASE section

Change Section

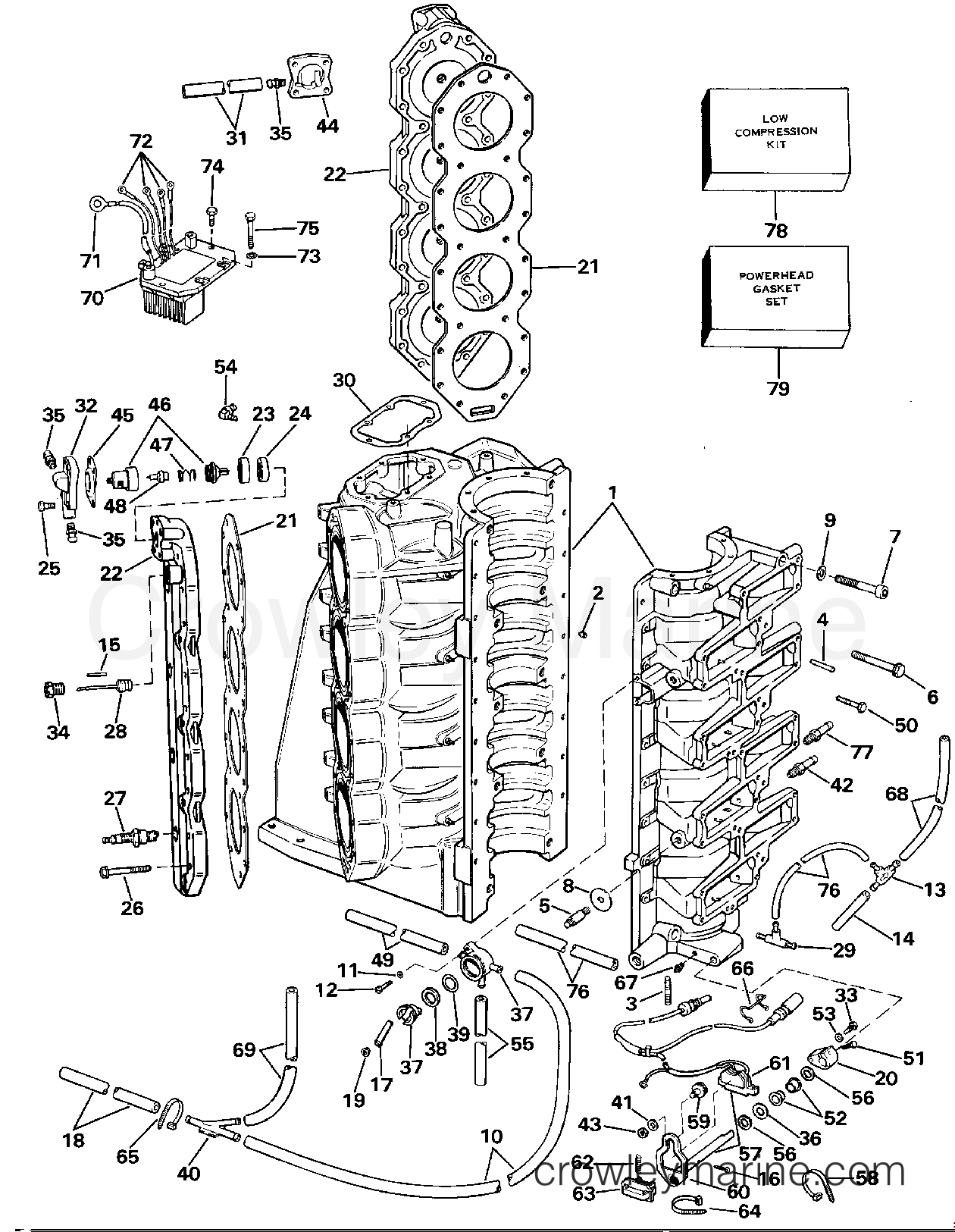

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1986 Evinrude Outboards 275 - CE275TLCDC CYLINDER & CRANKCASE section
Use two fingers to zoom
and move the diagram
1986 Evinrude Outboards 275 - CE275TLCDC - CYLINDER & CRANKCASE section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

3
0326743 - Stud
0326743
0326743 ← 0326743

STUD

STUD
$12.35
You save 5%. $13.00
Leaves in 6-8 days
Required: 2
4
0331095 - Taper Pin
0331095
0331095 ← 0331095

PIN, TAPER

PIN, TAPER
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
8
0320744 - Washer
0320744
0320744 ← 0320744

WASHER, STUD

WASHER, STUD
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 2
9
0322232 - Washer
0322232
0322232 ← 0322232

WASHER

WASHER
$1.43
You save 5%. $1.50
Leaves in 6-8 days
Required: 1
12
0329892 - Screw
0329892
0329892 ← 0329892

SCREW, CONTROL VALVE

SCREW, CONTROL VALVE
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 2
17
0329740 - Control Valve Arm
0329740
0329740 ← 0329740

ARM, CONTROL VALVE

ARM, CONTROL VALVE
$9.98
You save 5%. $10.50
Leaves in 6-8 days
Required: 1
18
0329990 - Overboard Hose
0329990
0329990 ← 0329990

HOSE, TEE TO COVER

HOSE, TEE TO COVER
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 1
19
0315094 - Bushing
0315094
0315094 ← 0315094

BUSHING, CONTROL ARM

BUSHING, CONTROL ARM
$9.95
You save $1.04. $10.99
Leaves in 6-8 days
Required: 1
21
0329786 - Cylinder Head Gasket
0329786
0329786 ← 0329786

GASKET, CYLINDER HEAD

GASKET, CYLINDER HEAD
$52.72
You save $2.77. $55.49
Leaves in 6-8 days
Required: 2
22
0395044 - Cylinder Head
0395044
0395044 ← 0395044

CYLINDER HEAD

CYLINDER HEAD
$189.95
You save $10.05. $200.00
Leaves in 6-8 days
Required: 2
40
0912234 - Tee, 30 Degree
0912234
0912234 ← 0912234

TEE, OVERBOARD INDICATOR

TEE, OVERBOARD INDICATOR
$6.99
You save 31%. $10.19
Ships Immediately
2 Items in stock
Required: 1
59
0329997 - Pin
0329997
0329997 ← 0329997

PIN

PIN
$28.50
You save $1.50. $30.00
Leaves in 6-8 days
Required: 1
62
0333017 - Spring
0333017
0333017 ← 0333017

SPRING

SPRING
$14.95
$15.00
Leaves in 6-8 days
Required: 1
63
0331767 - Retainer
0331767
0331767 ← 0331767

RETAINER

RETAINER
$8.55
You save 5%. $9.00
Leaves in 6-8 days
Required: 1
66
0511618 - Retainer
0511618
0511618 ← 0511618

RETAINER, CONNECTION

RETAINER, CONNECTION
$3.99
You save 20%. $5.00
Ships Immediately
5+ Items in stock
Required: 1
72
0511829 - Terminal Ring
0511829
0511829 ← 0511829

RING TERMINAL

RING TERMINAL
$.69
$.69
Leaves in 3-5 days
Required: 4
76
 -
← 0

HOSE, DRAIN SYSTEM

HOSE, DRAIN SYSTEM
Notes: Cut to Length from 326449
Items in stock
Required: 1
77
0392988 - Check Valve and Filter Assembly
0392988
0392988 ← 0392988

CHECK VALVE

CHECK VALVE
$34.99
You save 12%. $39.59
Ships Immediately
5+ Items in stock
Required: 8
79
0398355 - Powerhead Gasket Set
0398355
0398355 ← 0398355

POWERHEAD GASKET SET

POWERHEAD GASKET SET
$169.95
You save $10.05. $180.00
Leaves in 6-8 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
