1986 Evinrude Outboards 200 - E200STLCDR

MIDSECTION section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

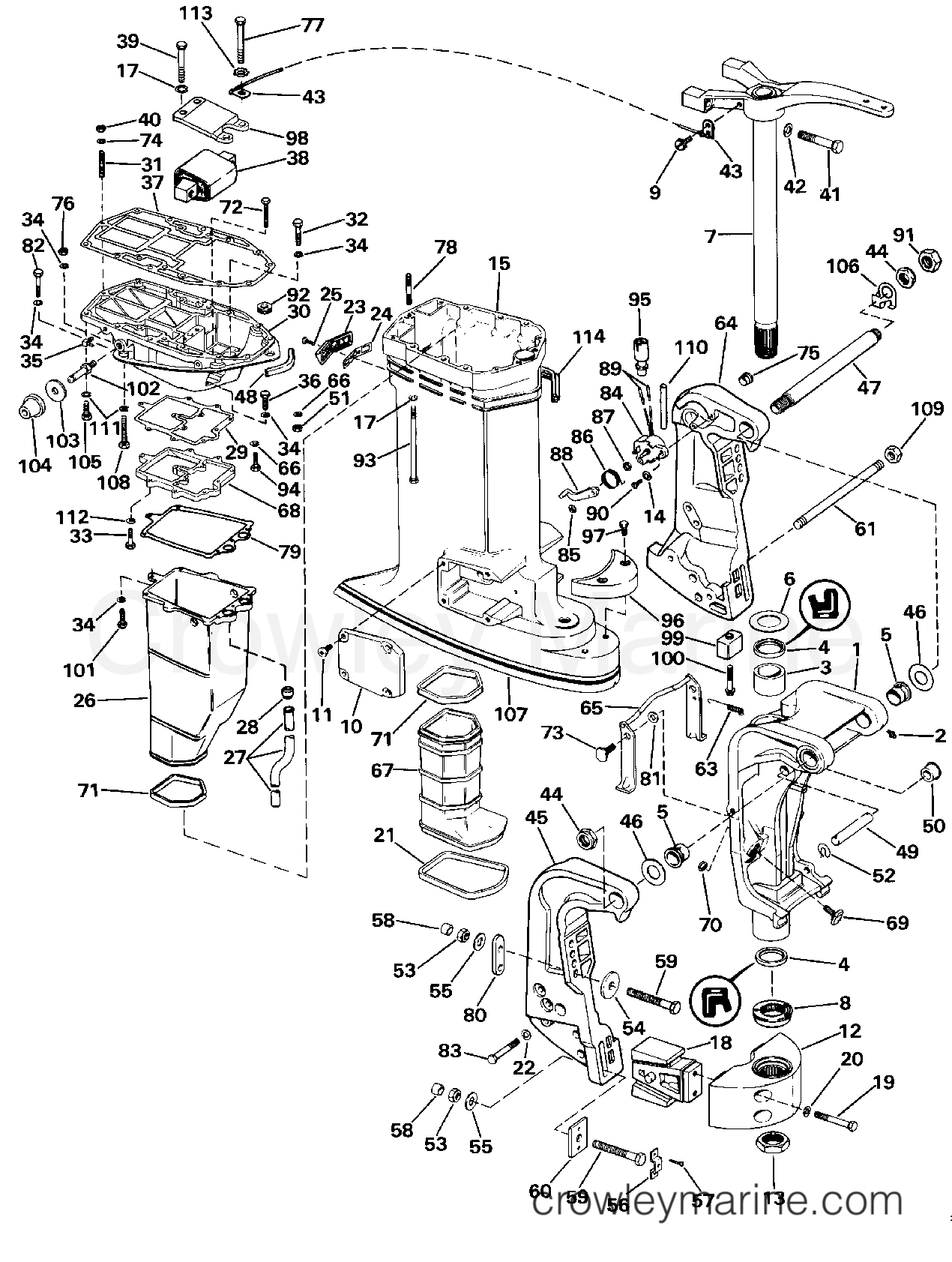

1986 Evinrude Outboards 200 - E200STLCDR MIDSECTION section
Use two fingers to zoom
and move the diagram
1986 Evinrude Outboards 200 - E200STLCDR - MIDSECTION section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
0432709 - Swivel Bracket
0432709 ← 0396647
0432709

SWIVEL BRACKET

SWIVEL BRACKET
Notes: 20 Inch Transom Models Only
$169.95
You save $10.05. $180.00
Leaves in 6-8 days
Required: 1
7
0392519 - Steering Arm & Shaft Assembly
0392519
0392519 ← 0392519

STEERING ARM ASSEMBLY.

STEERING ARM ASSEMBLY.
Notes: 25 Inch Transom Models Only
$854.00
You save $45.50. $899.50
Leaves in 3-5 days
Required: 1
11
0322000 - Starter to crankcase Screw
0322000
0322000 ← 0322000

SCREW, COVER

SCREW, COVER
$8.26
You save 5%. $8.69
Leaves in 6-8 days
Required: 8
19
0328078 - Mount Bracket Screw
0328078
0328078 ← 0328078

SCREW, MOUNT

SCREW, MOUNT
$19.95
$20.00
Leaves in 3-5 days
Required: 4
23
0331051 - Exhaust Deflector
0331051
0331051 ← 0331051

EXHAUST DEFLECTOR

EXHAUST DEFLECTOR
$8.55
You save 5%. $9.00
Leaves in 6-8 days
Required: 1
31
0331371 - Adapter Stud
0331371
0331371 ← 0331371

STUD, ADAPTER

STUD, ADAPTER
$14.95
You save $1.55. $16.50
Leaves in 6-8 days
Required: 1
41
0912345 - Upper Mount Screw
0912345
0912345 ← 0912345

SCREW, UPPER MOUNT

SCREW, UPPER MOUNT
$24.99
You save $2.51. $27.50
Ships Immediately
4 Items in stock
Required: 2
52
0331029 - Spring Clip
0331029
0331029 ← 0331029

SPRING CLIP

SPRING CLIP
$2.85
You save 5%. $3.00
Leaves in 6-8 days
Required: 2
57
0319886 - Screw
0319886
0319886 ← 0319886

SCREW

SCREW
$2.99
You save 20%. $3.75
Ships Immediately
4 Items in stock
Required: 4
63
0323142 - Trail lock return Spring
0323142
0323142 ← 0323142

SPRING, TRAIL LOCK

SPRING, TRAIL LOCK
$11.88
You save 5%. $12.50
Leaves in 6-8 days
Required: 1
68
0331574 - Plate
0331574
0331574 ← 0331574

PLATE

PLATE
$22.80
You save $1.20. $24.00
Leaves in 6-8 days
Required: 1
69
0321499 - Trim Rod Thrust Pad
0321499
0321499 ← 0321499

THRUST PAD

THRUST PAD
$72.91
You save $3.84. $76.75
Leaves in 3-5 days
Required: 2
77
0330931 - Screw
0330931
0330931 ← 0330931

SCREW, UPPER MOUNT

SCREW, UPPER MOUNT
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 2
80
0321735 - Stern Bracket Support
0321735
0321735 ← 0321735

SUPPORT, STERN BRACKET

SUPPORT, STERN BRACKET
$21.99
You save 29%. $30.79
Ships Immediately
5+ Items in stock
Required: 2
85
0511527 - Arm Retainer
0511527
0511527 ← 0511527

RETAINER

RETAINER
$7.99
You save 6%. $8.50
Ships Immediately
2 Items in stock
Required: 1
87
0320689 - Rotary switch Assembly Nut
0320689
0320689 ← 0320689

NUT

NUT
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
88
0512211 - Arm
0512211
0512211 ← 0512211

ARM

ARM
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
97
0328049 - Anode Screw
0328049
0328049 ← 0328049

SCREW, ANODE

SCREW, ANODE
$2.38
You save 5%. $2.50
Leaves in 6-8 days
Required: 2
98
0330929 - Upper Mount Plate
0330929
0330929 ← 0330929

PLATE, UPPER MOUNT

PLATE, UPPER MOUNT
$84.95
You save $5.30. $90.25
Leaves in 3-5 days
Required: 1
102
0329743 - Stud
0329743
0329743 ← 0329743

STUD, COVER MOUNT

STUD, COVER MOUNT
$23.04
You save $1.21. $24.25
Leaves in 3-5 days
Required: 2
109
0329742 - Locknut
0329742
0329742 ← 0329742

LOCKNUT, THRUST ROD

LOCKNUT, THRUST ROD
$8.26
You save 5%. $8.69
Leaves in 6-8 days
Required: 4
