1986 Evinrude Outboards 200 - E200STLCDR

INTAKE MANIFOLD section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

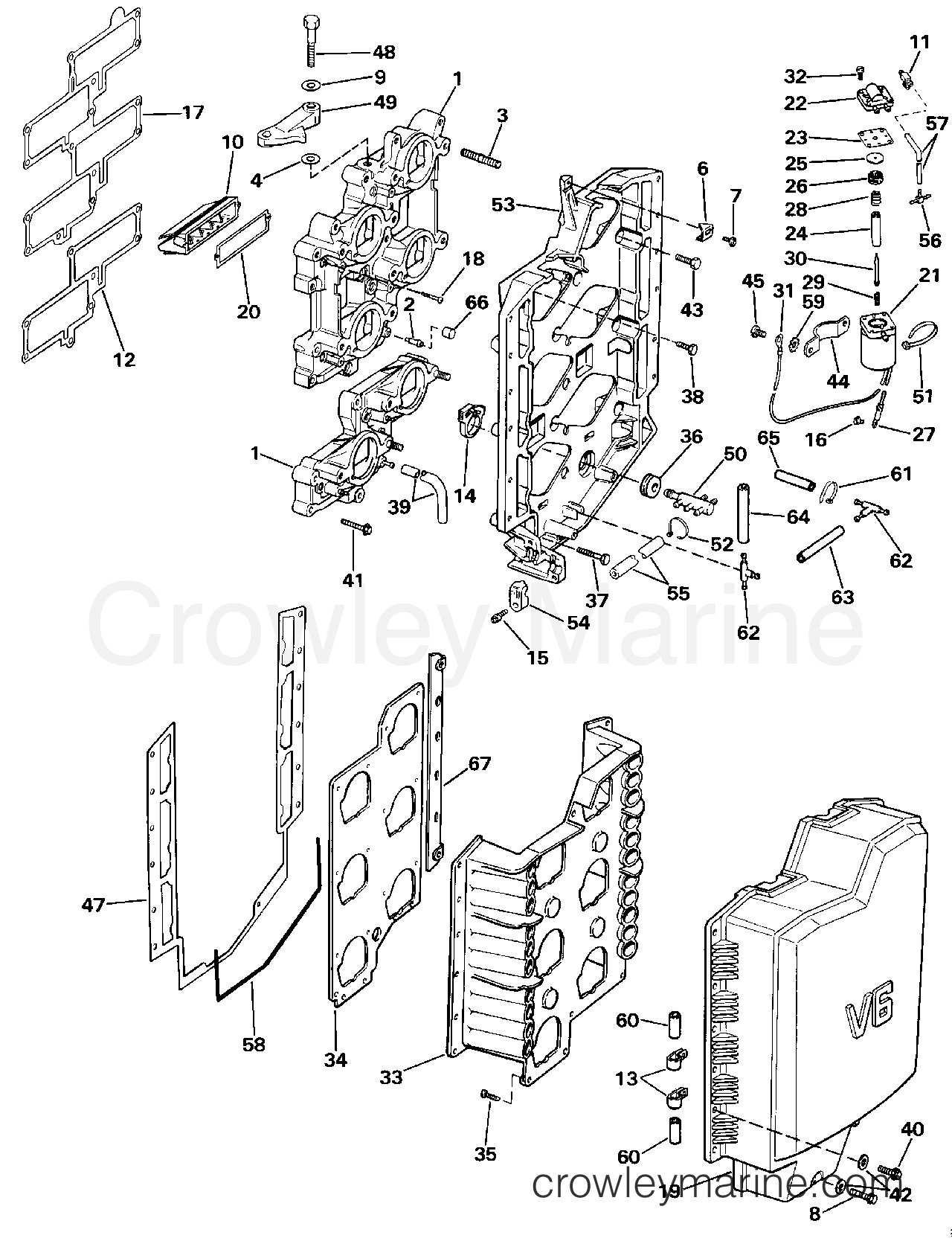

1986 Evinrude Outboards 200 - E200STLCDR INTAKE MANIFOLD section
Use two fingers to zoom
and move the diagram
1986 Evinrude Outboards 200 - E200STLCDR - INTAKE MANIFOLD section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

3
0310872 - Stud
0310872
0310872 ← 0310872

STUD

STUD
$5.95
$6.00
Leaves in 6-8 days
Required: 4
4
0320744 - Washer
0320744
0320744 ← 0320744

WASHER, SCREW

WASHER, SCREW
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 1
10
0397336 - Reed Box
0397336
0397336 ← 0397336

REED BOX ASSEMBLY.

REED BOX ASSEMBLY.
$154.99
You save $16.01. $171.00
Ships Immediately
5+ Items in stock
Required: 6
11
0325564 - Tee
0325564
0325564 ← 0325564

TEE, PRIMER, LOWER

TEE, PRIMER, LOWER
$9.98
You save 5%. $10.50
Leaves in 3-5 days
Required: 1
18
0332265 - Screw
0332265
0332265 ← 0332265

SCREW, REED BOX

SCREW, REED BOX
$5.99
You save 30%. $8.50
Ships Immediately
1 Items in stock
Required: 8
24
0511809 - Plunger
0511809
0511809 ← 0511809

PLUNGER

PLUNGER
$17.99
You save 31%. $26.25
Leaves in 3-5 days
Required: 1
27
0510780 - Ring Terminal
0510780
0510780 ← 0510780

TERMINAL

TERMINAL
$3.99
You save 5%. $4.19
Ships Immediately
5+ Items in stock
Required: 1
31
0510818 - Terminal
0510818
0510818 ← 0510818

TERMINAL

TERMINAL
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 1
32
0330121 - Screw
0330121
0330121 ← 0330121

SCREW, COVER TO HOUSING

SCREW, COVER TO HOUSING
$5.99
You save 30%. $8.50
Ships Immediately
4 Items in stock
Required: 4
44
0330118 - Clamp
0330118
0330118 ← 0330118

CLAMP, PRIMER SOLENOID

CLAMP, PRIMER SOLENOID
$3.99
You save 20%. $5.00
Ships Immediately
1 Items in stock
Required: 1
49
0333094 - Throttle Cam
0333094
0333094 ← 0333094

THROTTLE CAM

THROTTLE CAM
$8.99
You save 31%. $12.99
Ships Immediately
1 Items in stock
Required: 1
54
0329271 - Trunnion Cover
0329271
0329271 ← 0329271

COVER, TRUNNION

COVER, TRUNNION
$19.95
$20.00
Leaves in 3-5 days
Required: 2
57
 -
← 0

HOSE, PRIMER

HOSE, PRIMER
Notes: Cut to Length from 326449
Items in stock
Required: 0
58
 -
← 0

SEAL, COVER TO BASE

SEAL, COVER TO BASE
Notes: Cut to Length from 309044
Items in stock
Required: 1
66
0322892 - Cap.
0322892
0322892 ← 0322892

CAP, FITTING, UPPER

CAP, FITTING, UPPER
$3.56
You save 5%. $3.75
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
