1986 Evinrude Outboards 120 - E120TLCDC

POWER TRIM/TILT ELECTRICAL section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

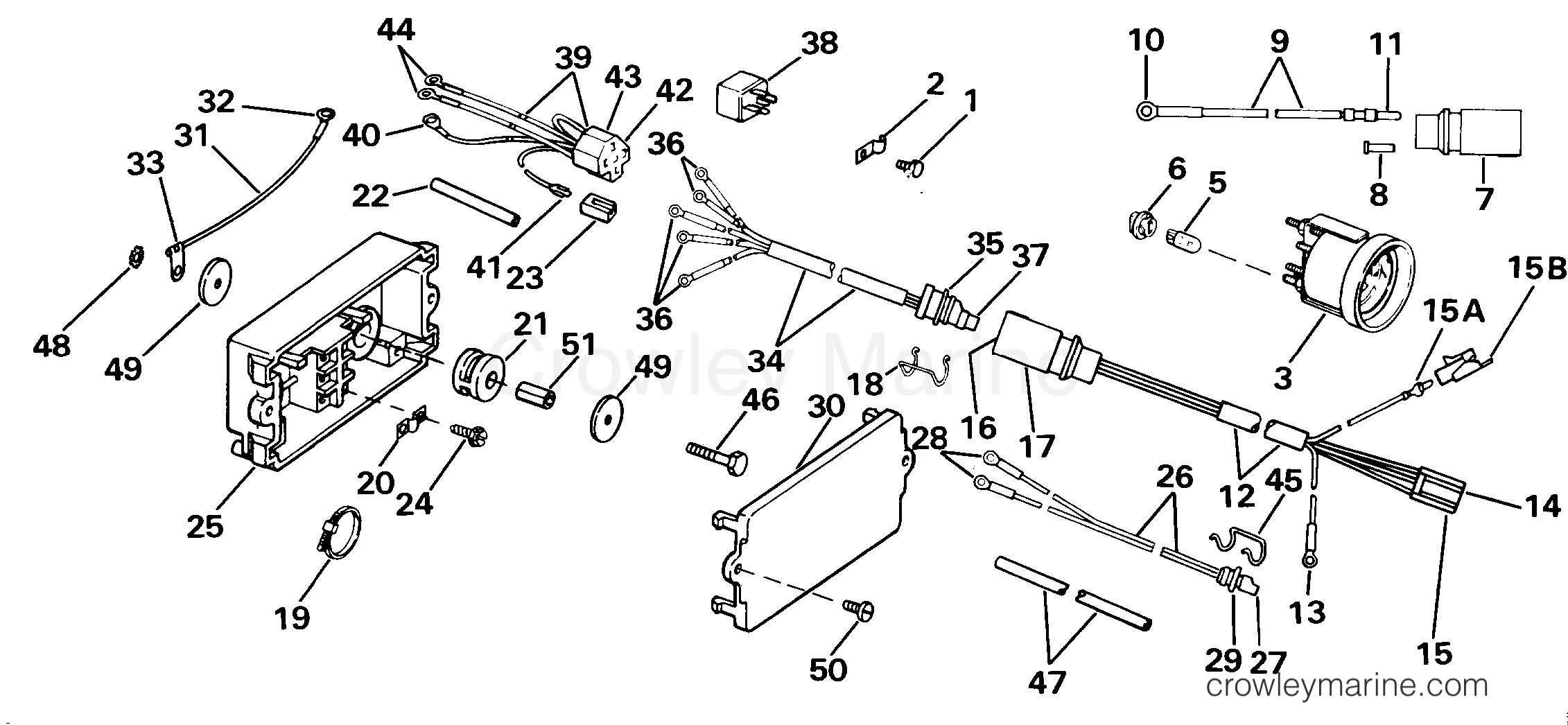

1986 Evinrude Outboards 120 - E120TLCDC POWER TRIM/TILT ELECTRICAL section
Use two fingers to zoom
and move the diagram
1986 Evinrude Outboards 120 - E120TLCDC - POWER TRIM/TILT ELECTRICAL section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
0310981 - Screw
0310981
0310981 ← 0310981

SCREW, CLAMP

SCREW, CLAMP
$3.33
You save 5%. $3.50
Leaves in 6-8 days
Required: 1
5
0122552 - All Except Tech Series Zephyr Series Bulb
0122552
0122552 ← 0122552

BULB

BULB
$9.95
You save 10%. $11.00
Leaves in 6-8 days
Required: 1
6
0122553 - Bulb Socket
0122553
0122553 ← 0122553

SOCKET

SOCKET
$8.55
You save 5%. $9.00
Leaves in 3-5 days
Required: 1
8
0511496 - Plug-Connector
0511496
0511496 ← 0511496

PLUG CONNECTOR

PLUG CONNECTOR
$5.99
You save 25%. $8.00
Ships Immediately
1 Items in stock
Required: 2
10
0510151 - Ring Terminal
0510151
0510151 ← 0510151

TERMINAL

TERMINAL
$1.43
You save 5%. $1.50
Leaves in 6-8 days
Required: 1
11
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 9%. $1.09
Ships Immediately
5+ Items in stock
Required: 1
14
0309433 - Terminal
0309433
0309433 ← 0309433

TERMINAL

TERMINAL
$9.50
$9.50
Leaves in 3-5 days
Required: 3
15
0309474 - Connector
0309474
0309474 ← 0309474

CONNECTOR

CONNECTOR
$9.50
$9.50
Leaves in 3-5 days
Required: 1
15A
0512904 - Terminal
0512904
0512904 ← 0512904

TERMINAL

TERMINAL
$.95
You save 5%. $1.00
Leaves in 6-8 days
Required: 1
15B
0310572 - 1 hole recept Connector
0310572
0310572 ← 0310572

CONNECTOR

CONNECTOR
$8.99
You save 5%. $9.50
Ships Immediately
2 Items in stock
Required: 1
16
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 9%. $1.09
Ships Immediately
5+ Items in stock
Required: 4
17
0512754 - 5-Pin Connector
0512754
0512754 ← 0512754

CONNECTOR

CONNECTOR
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
21
0315057 - Mount
0315057
0315057 ← 0315057

MOUNT, JUNCTION BOX

MOUNT, JUNCTION BOX
$11.85
You save 5%. $12.47
Leaves in 6-8 days
Required: 2
28
0510780 - Ring Terminal
0510780
0510780 ← 0510780

TERMINAL

TERMINAL
$3.99
You save 5%. $4.19
Ships Immediately
5+ Items in stock
Required: 2
29
0512745 - 2-socket Charge coil Connector
0512745
0512745 ← 0512745

CONNECTOR

CONNECTOR
$7.69
You save 5%. $8.09
Leaves in 3-5 days
Required: 1
33
0510818 - Terminal
0510818
0510818 ← 0510818

TERMINAL

TERMINAL
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 1
36
0510780 - Ring Terminal
0510780
0510780 ← 0510780

RING TERMINAL

RING TERMINAL
$3.99
You save 5%. $4.19
Ships Immediately
5+ Items in stock
Required: 5
40
0510780 - Ring Terminal
0510780
0510780 ← 0510780

TERMINAL

TERMINAL
$3.99
You save 5%. $4.19
Ships Immediately
5+ Items in stock
Required: 1
41
0511656 - Trim motor Terminal
0511656
0511656 ← 0511656

TERMINAL

TERMINAL
$3.99
You save 23%. $5.19
Ships Immediately
1 Items in stock
Required: 1
42
0511865 - Terminal
0511865
0511865 ← 0511865

TERMINAL

TERMINAL
$4.95
$5.09
Leaves in 6-8 days
Required: 5
43
0511866 - 5 Terminal - male Connector
0511866
0511866 ← 0511866

CONNECTOR

CONNECTOR
$12.11
You save 5%. $12.75
Leaves in 3-5 days
Required: 1
