1986 Evinrude Outboards 120 - E120TLCDC

IGNITION SYSTEM section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

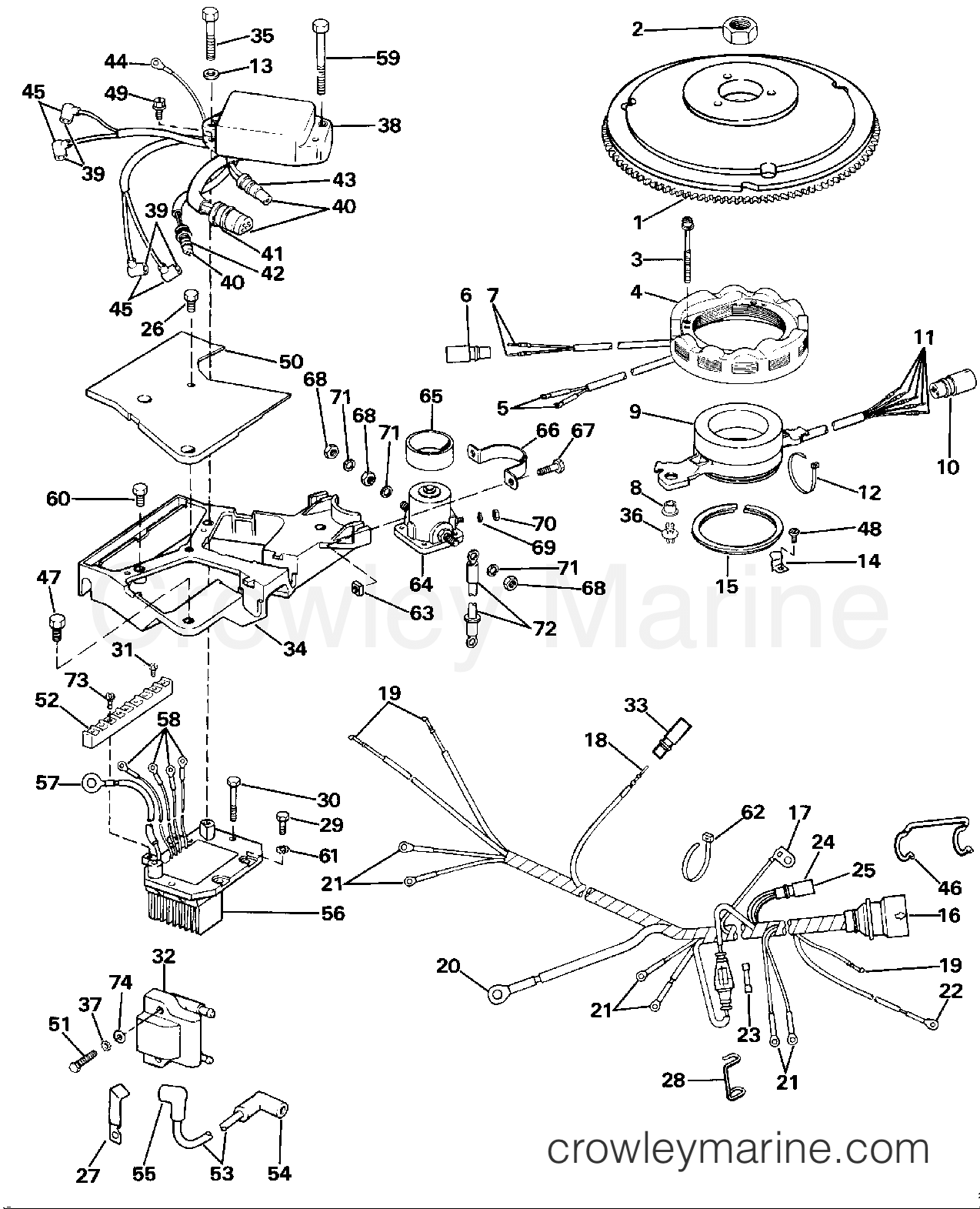

1986 Evinrude Outboards 120 - E120TLCDC IGNITION SYSTEM section
Use two fingers to zoom
and move the diagram
1986 Evinrude Outboards 120 - E120TLCDC - IGNITION SYSTEM section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

5
0511829 - Terminal Ring
0511829
0511829 ← 0511829

RING TERMINAL

RING TERMINAL
$.69
$.69
Leaves in 3-5 days
Required: 2
7
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 9%. $1.09
Ships Immediately
5+ Items in stock
Required: 2
10
0512754 - 5-Pin Connector
0512754
0512754 ← 0512754

CONNECTOR

CONNECTOR
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
11
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 9%. $1.09
Ships Immediately
5+ Items in stock
Required: 5
14
0326439 - Clamp
0326439
0326439 ← 0326439

CLAMP, TIMER BASE

CLAMP, TIMER BASE
$19.95
You save 5%. $20.89
Leaves in 6-8 days
Required: 4
16
0583145 - Motor Cable Assembly
0583145
0583145 ← 0583145

ENGINE CABLE ASSEMBLY.

ENGINE CABLE ASSEMBLY.
$304.95
You save $15.34. $320.29
Leaves in 6-8 days
Required: 1
18
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 9%. $1.09
Ships Immediately
5+ Items in stock
Required: 1
19
0308808 - Knife Disconnect
0308808
0308808 ← 0308808

KNIFE DISCONNECT

KNIFE DISCONNECT
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 3
21
0511829 - Terminal Ring
0511829
0511829 ← 0511829

RING TERMINAL

RING TERMINAL
$.69
$.69
Leaves in 3-5 days
Required: 6
22
0510780 - Ring Terminal
0510780
0510780 ← 0510780

RING TERMINAL

RING TERMINAL
$3.99
You save 5%. $4.19
Ships Immediately
5+ Items in stock
Required: 1
24
0512748 - Female 3 Pin Terminal Connector
0512748
0512748 ← 0512748

CONNECTOR

CONNECTOR
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
25
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 9%. $1.09
Ships Immediately
5+ Items in stock
Required: 4
33
0123405 - Pin Receptacle
0123405
0123405 ← 0123405

RECEPTACLE

RECEPTACLE
$11.88
You save 5%. $12.50
Leaves in 6-8 days
Required: 1
43
0123404 - Plug
0123404
0123404 ← 0123404

PLUG, IGNITION SWITCH

PLUG, IGNITION SWITCH
$24.95
You save $2.30. $27.25
Leaves in 3-5 days
Required: 1
44
0510818 - Terminal
0510818
0510818 ← 0510818

TERMINAL GROUND

TERMINAL GROUND
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 1
46
0315182 - Clamp
0315182
0315182 ← 0315182

CLAMP

CLAMP
$24.95
You save $1.80. $26.75
Leaves in 3-5 days
Required: 1
51
0328725 - Screw
0328725
0328725 ← 0328725

SCREW, COIL MOUNTING

SCREW, COIL MOUNTING
$5.95
You save 8%. $6.50
Ships Immediately
5+ Items in stock
Required: 8
52
0512656 - Terminal Block without Stud
0512656
0512656 ← 0512656

TERMINAL BLOCK

TERMINAL BLOCK
$5.95
$6.09
Leaves in 6-8 days
Required: 1
58
0511829 - Terminal Ring
0511829
0511829 ← 0511829

RING TERMINAL

RING TERMINAL
$.69
$.69
Leaves in 3-5 days
Required: 4
68
0311349 - Nut
0311349
0311349 ← 0311349

NUT, TERMINAL

NUT, TERMINAL
$5.75
$5.75
Leaves in 3-5 days
Required: 3
69
0304454 - Lockwasher
0304454
0304454 ← 0304454

LOCKWASHER, TERMINAL

LOCKWASHER, TERMINAL
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 2
