1986 Evinrude Outboards 120 - E120TLCDC

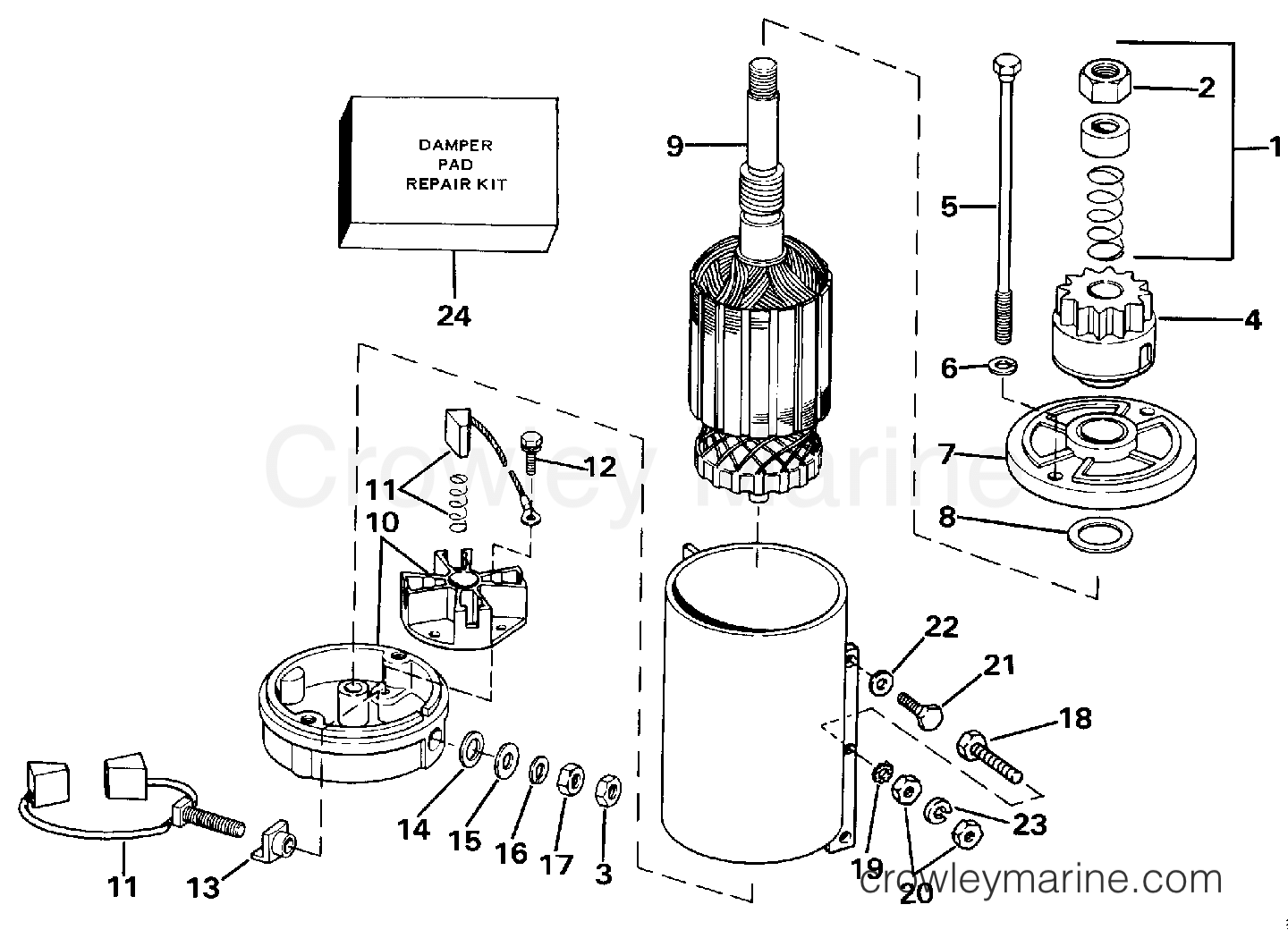

ELECTRIC STARTER AMERICAN BOSCH SM47309 section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1986 Evinrude Outboards 120 - E120TLCDC ELECTRIC STARTER AMERICAN BOSCH SM47309 section
Use two fingers to zoom
and move the diagram
1986 Evinrude Outboards 120 - E120TLCDC - ELECTRIC STARTER AMERICAN BOSCH SM47309 section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

3
0313022 - Lock Nut
0313022
0313022 ← 0313022

LOCKNUT, INPUT STUD

LOCKNUT, INPUT STUD
$7.99
You save 11%. $9.00
Ships Immediately
4 Items in stock
Required: 1
6
0318499 - Lockwasher
0318499
0318499 ← 0318499

LOCKWASHER

LOCKWASHER
$.99
$1.00
Ships Immediately
2 Items in stock
Required: 2
7
0386639 - Cap Assembly Drive
0386639
0386639 ← 0386639

CAP ASSEMBLY.

CAP ASSEMBLY.
$39.95
You save $2.34. $42.29
Leaves in 6-8 days
Required: 1
10
0328381 - END CAP ASSY
0328381
0328381 ← 0328381

END CAP ASSEMBLY.

END CAP ASSEMBLY.
$41.99
You save $18.01. $60.00
Ships Immediately
1 Items in stock
Required: 1
