1986 Evinrude Outboards 9.9 - E10ECDB

IGNITION section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

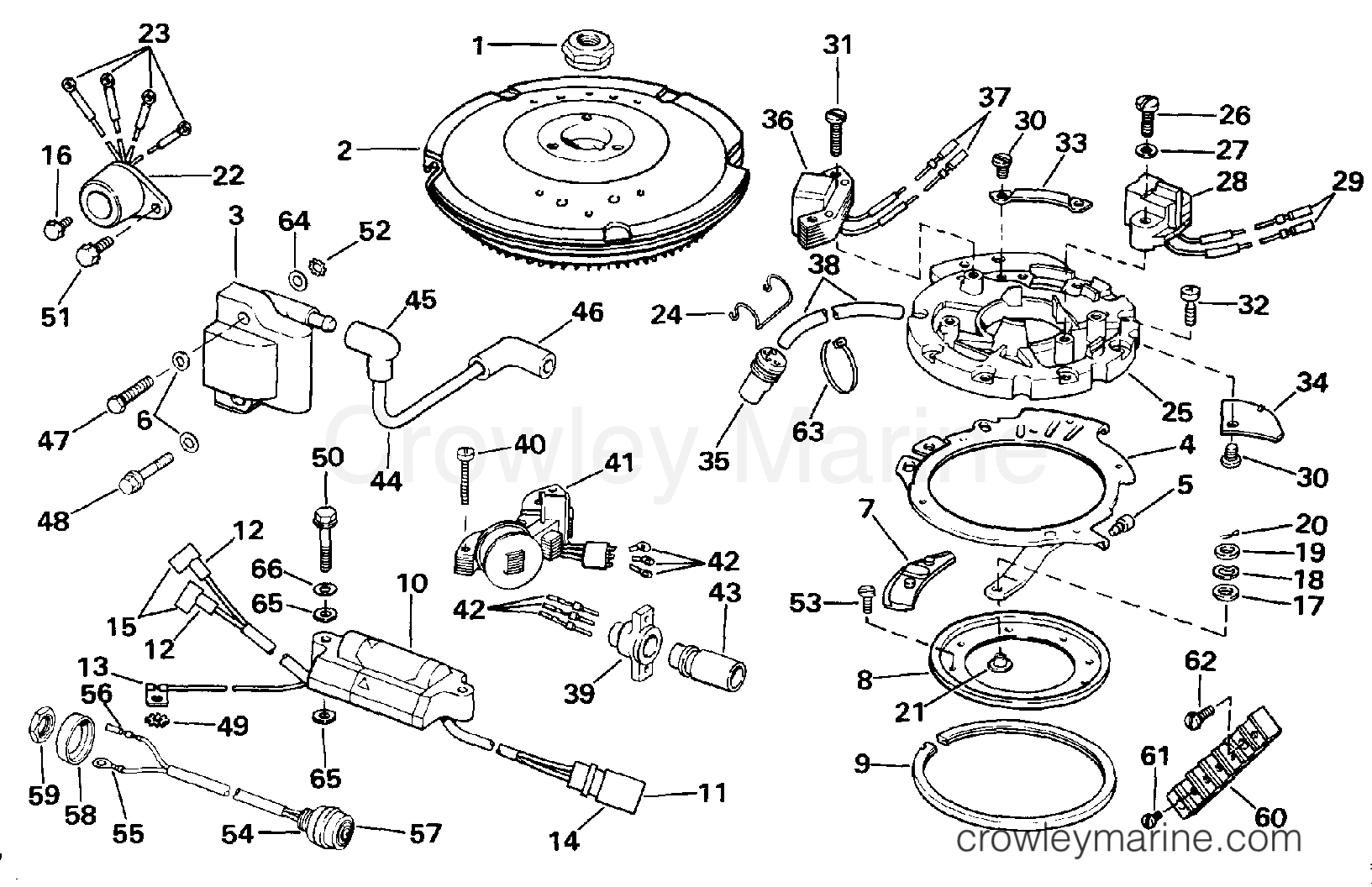

1986 Evinrude Outboards 9.9 - E10ECDB IGNITION section
Use two fingers to zoom
and move the diagram
1986 Evinrude Outboards 9.9 - E10ECDB - IGNITION section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

8
0322102 - Support
0322102
0322102 ← 0322102

SUPPORT, ARMATURE PLATE

SUPPORT, ARMATURE PLATE
$84.99
You save $36.01. $121.00
Ships Immediately
2 Items in stock
Required: 1
11
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 9%. $1.09
Ships Immediately
5+ Items in stock
Required: 3
14
0512754 - 5-Pin Connector
0512754
0512754 ← 0512754

CONNECTOR

CONNECTOR
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
16
0315260 - Screw
0315260
0315260 ← 0315260

SCREW, RECTIFIER, SHORT

SCREW, RECTIFIER, SHORT
$3.99
You save 31%. $5.75
Ships Immediately
3 Items in stock
Required: 1
17
0306358 - Washer
0306358
0306358 ← 0306358

WASHER, CONTROL SHAFT

WASHER, CONTROL SHAFT
$6.99
You save 9%. $7.69
Ships Immediately
3 Items in stock
Required: 1
19
0310540 - Washer
0310540
0310540 ← 0310540

NYLON WASHER

NYLON WASHER
$5.95
$6.00
Leaves in 6-8 days
Required: 1
23
0510780 - Ring Terminal
0510780 ← 0511733
0510780

TERMINAL

TERMINAL
Notes: Electric Start Models Only
$3.99
You save 5%. $4.19
Ships Immediately
5+ Items in stock
Required: 4
0583389
0583389 - Arm Plate Assembly
0583389
0583389 ← 0583389

PLATE ASSEMBLY COMPLETE

PLATE ASSEMBLY COMPLETE
Notes: Not Shown Electric Start Models Only
$359.95
You save $21.05. $381.00
Leaves in 3-5 days
Required: 1
31
0309545 - Screw
0309545
0309545 ← 0309545

SCREW, COIL ASSEMBLY

SCREW, COIL ASSEMBLY
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 2
32
0511460 - Retainer Screw
0511460
0511460 ← 0511460

SCREW, RETAINER

SCREW, RETAINER
$9.50
$9.50
Leaves in 3-5 days
Required: 5
33
0511458 - Leads Clamp
0511458
0511458 ← 0511458

CLAMP, LEADS

CLAMP, LEADS
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
34
0331626 - Leads Cover
0331626
0331626 ← 0331626

COVER, LEADS

COVER, LEADS
$12.53
You save 5%. $13.19
Leaves in 6-8 days
Required: 1
38
0511482 - Tubing
0511482
0511482 ← 0511482

TUBING

TUBING
$9.98
You save 5%. $10.50
Leaves in 3-5 days
Required: 1
42
0510780 - Ring Terminal
0510780 ← 0511733
0510780

TERMINAL

TERMINAL
Notes: Electric Start Models Only
$3.99
You save 5%. $4.19
Ships Immediately
5+ Items in stock
Required: 3
48
0323626 - Impeller housing Screw
0323626
0323626 ← 0323626

SCREW, COIL, LONG

SCREW, COIL, LONG
$2.99
$3.09
Ships Immediately
5+ Items in stock
Required: 1
58
0324066 - Shorting Switch Bushing
0324066
0324066 ← 0324066

MOUNTING RING

MOUNTING RING
$14.95
$15.00
Leaves in 6-8 days
Required: 1
60
0512762 - Terminal Block
0512762
0512762 ← 0512762

TERMINAL BLOCK

TERMINAL BLOCK
Notes: Electric Start Models Only
$12.63
You save 5%. $13.29
Leaves in 3-5 days
Required: 1
62
0510195 - SCREW
0510195
0510195 ← 0510195

SCREW, TERMINAL BLOCK

SCREW, TERMINAL BLOCK
Notes: Electric Start Models Only
$2.99
You save 25%. $3.96
Ships Immediately
1 Items in stock
Required: 2
