1986 Evinrude Outboards 9.9 - E10ECDB

ENGINE COVER - EVINRUDE section

Change Section

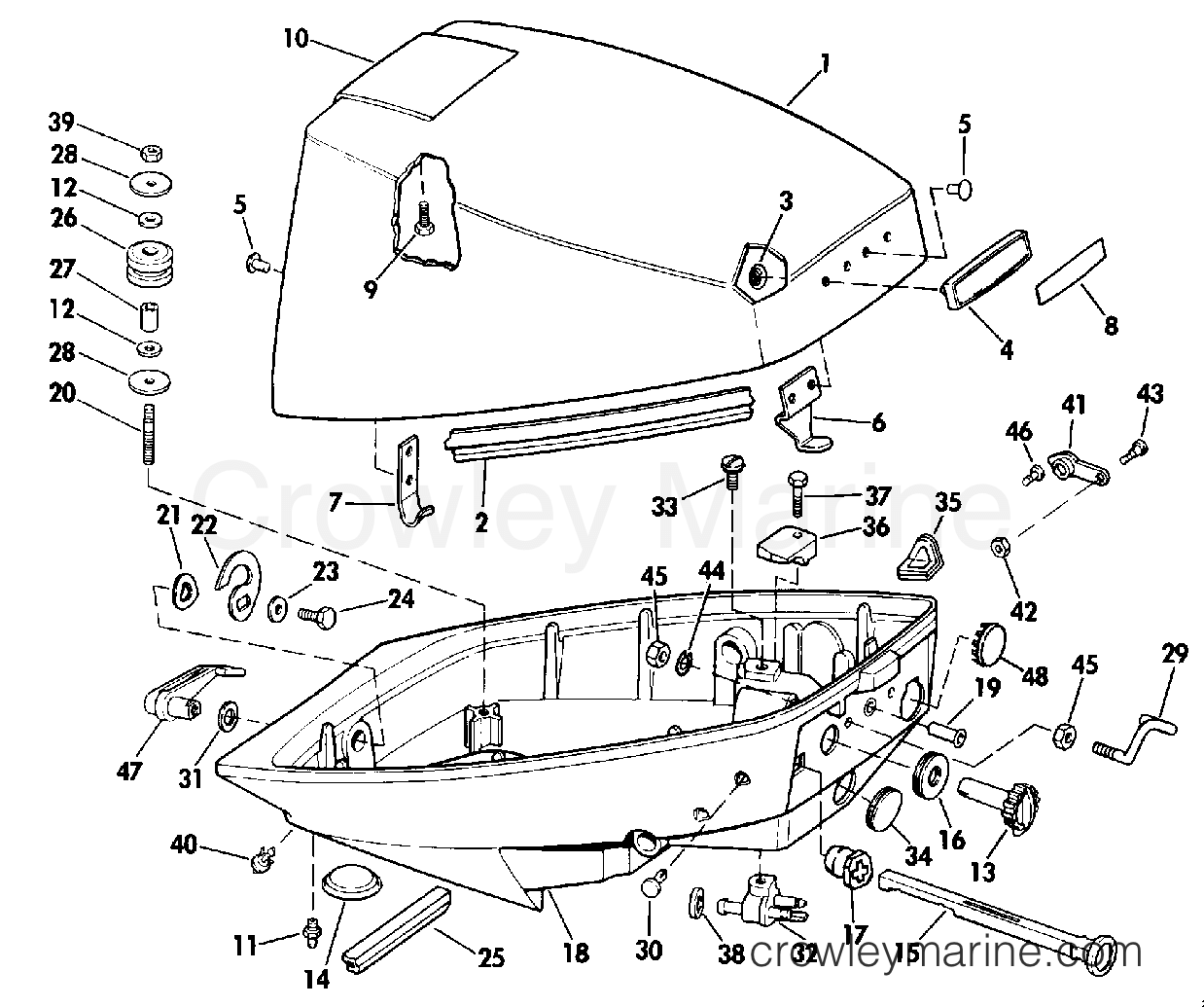

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1986 Evinrude Outboards 9.9 - E10ECDB ENGINE COVER - EVINRUDE section
Use two fingers to zoom
and move the diagram
1986 Evinrude Outboards 9.9 - E10ECDB - ENGINE COVER - EVINRUDE section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

4
0210347 - Front Applique
0210347
0210347 ← 0210347

APPLIQUE, FRONT

APPLIQUE, FRONT
$14.95
$15.00
Leaves in 6-8 days
Required: 1
5
0318836 - Rivet
0318836
0318836 ← 0318836

RIVET, HOOK TO COVER

RIVET, HOOK TO COVER
$9.95
You save 13%. $11.39
Leaves in 6-8 days
Required: 4
12
0331249 - Washer
0331249
0331249 ← 0331249

WASHER, MOUNT SMALL

WASHER, MOUNT SMALL
$5.99
You save 30%. $8.50
Ships Immediately
1 Items in stock
Required: 6
33
0329265 - SCREW, Fuel connector
0329265
0329265 ← 0329265

SCREW, BODY FUEL CONNECTOR

SCREW, BODY FUEL CONNECTOR
$2.99
You save 25%. $3.99
Ships Immediately
1 Items in stock
Required: 1
34
0319575 - Grommet
0319575
0319575 ← 0319575

GROMMET, BLANK, LOWER ENGINE COVER

GROMMET, BLANK, LOWER ENGINE COVER
Notes: Rope Start Models Only
$18.99
You save 30%. $27.19
Ships Immediately
1 Items in stock
Required: 1
34
0319608 - Grommet
0319608
0319608 ← 0319608

GROMMET, CABLE, LOWER ENGINE COVER

GROMMET, CABLE, LOWER ENGINE COVER
Notes: Electric Start Models Only
$5.99
You save 33%. $9.00
Ships Immediately
1 Items in stock
Required: 1
37
0319617 - Adaptor To Motor Screw
0319617
0319617 ← 0319617

SCREW, RETAINER

SCREW, RETAINER
$1.99
You save 34%. $3.00
Ships Immediately
1 Items in stock
Required: 1
44
0306546 - Lockwasher
0306546
0306546 ← 0306546

WASHER, ROPE GUIDE

WASHER, ROPE GUIDE
Notes: SEL Model Only
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
