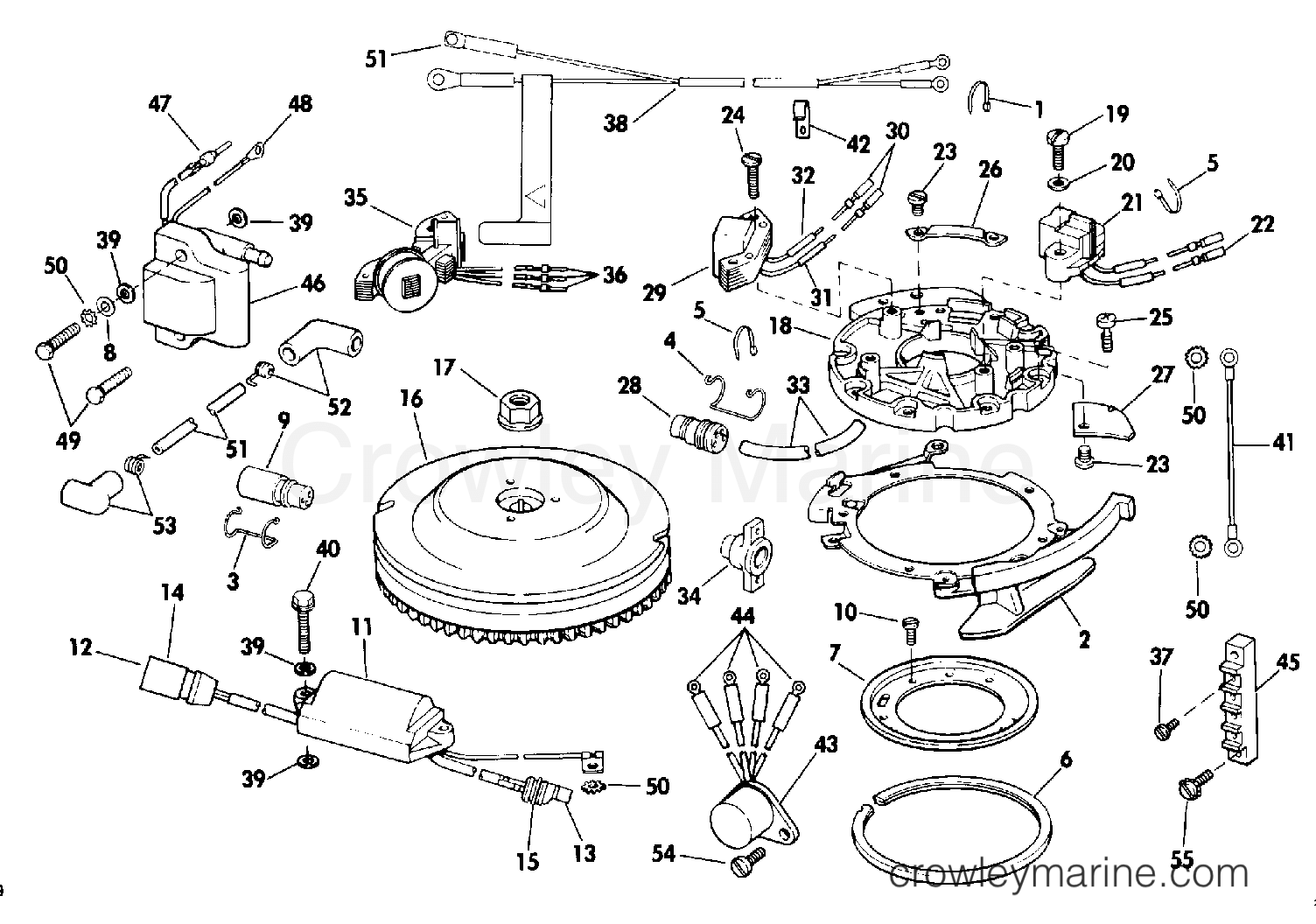

1984 Outboard 8 - E8RLCRM MAGNETO - 6/8 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1984 Outboard 8 - E8RLCRM - MAGNETO - 6/8 1984 Outboard 8 - E8RLCRM - MAGNETO - 6/8
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

26
Leads Clamp
0511458 ← 0511458

CLAMP, LEADS

$14.95
You save $1.04. $15.99
Cross Ship
31
Terminal
0315072 ← 0315072

SPLICE

$1.99
Ships immediately
5+ in stock
32
Tube
0510628 ← 0510628

TUBING

$7.59
You save 5%. $7.99
Cross Ship
33
Tubing
0511482 ← 0511482

TUBING

$12.34
You save 5%. $12.99
Cross Ship
34
Bracket
0511703 ← 0511703

BRACKET

Notes:AC Lighting Models Only
$1.90
You save 5%. $2.00
Cross Ship
36
Ring Terminal
0510780

TERMINAL

$4.99
$5.00
Ships immediately
1 in stock
36
Temperature Switch Pin
0511469 ← 0511469

PIN

Notes:AC Lighting Models Only
$0.95
You save 29%. $1.33
Product reviews (13)
Ships immediately
5+ in stock
38
Cable Assembly
Notes:8SRL & 6SL Models Only
$44.95
You save $3.04. $47.99
Cross Ship
44
Ring Terminal
0510780 ← 0510780

RING TERMINAL

$4.99
$5.00
Ships immediately
1 in stock
54
Screw
0305514 ← 0305514

SCREW, RECTIFIER

Notes:8SRL & 6SL Models Only
$3.99
You save 20%. $4.99
Ships immediately
5+ in stock
55
Screw
Notes:8SRL & 6SL Models Only
$1.95
You save 24%. $2.55
Ships immediately
5+ in stock

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
