Select Your Engine:

1983 Evinrude Outboards 75 - E75TRLCTE

MID-SECTION-15" TRANSOM section

Change Section

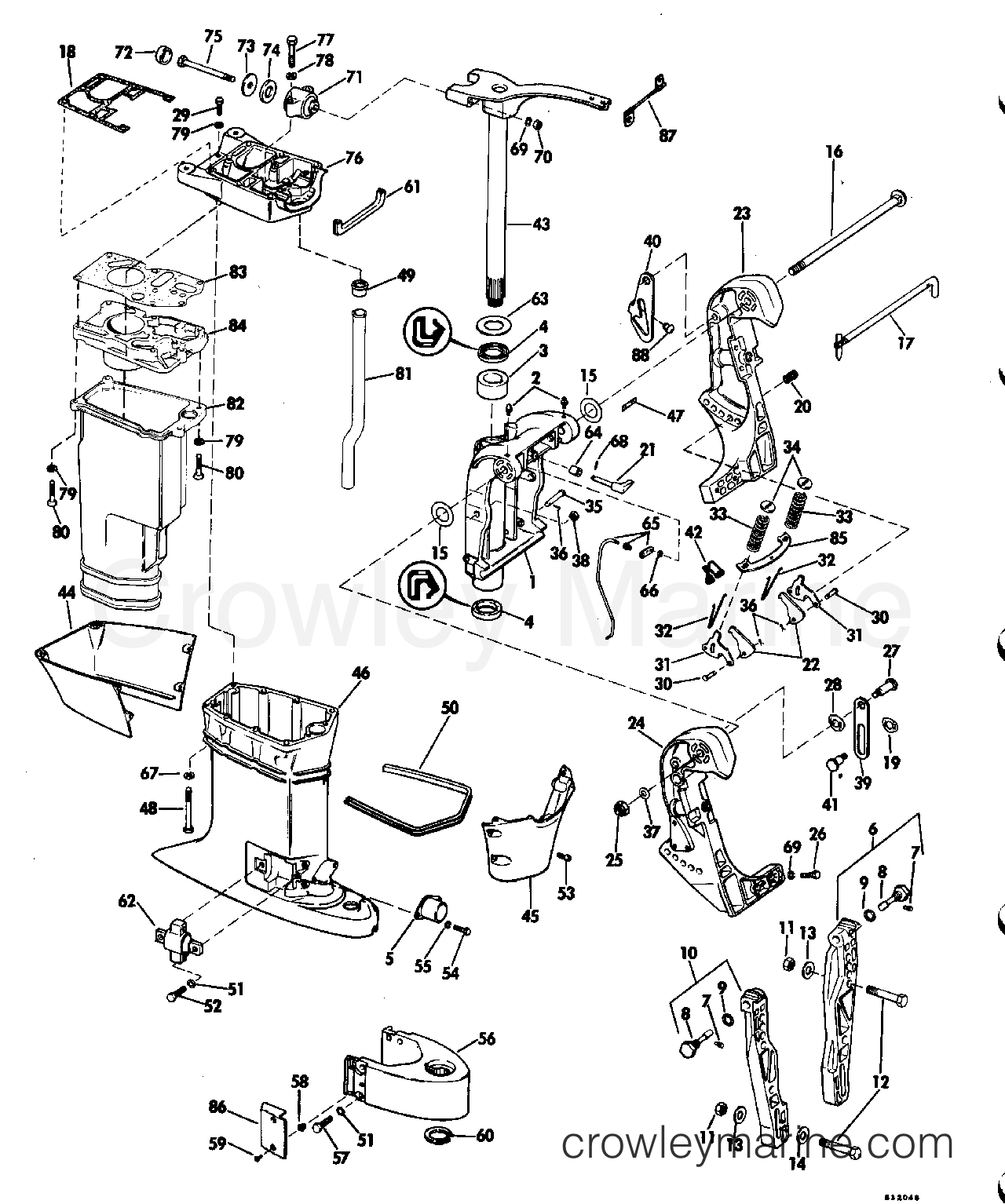

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1983 Evinrude Outboards 75 - E75TRLCTE MID-SECTION-15" TRANSOM section
Use two fingers to zoom
and move the diagram
1983 Evinrude Outboards 75 - E75TRLCTE - MID-SECTION-15" TRANSOM section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

0381836
0381836 - Transom Mounting Kit
0381836
0381836 0381836

TRANSOM MOUNT KIT

TRANSOM MOUNT KIT
Notes: Not Shown
$142.50
You save $7.50. $150.00
Leaves in 6-8 days
Required: 1
7
0307222 - Pin
0307222
0307222 0307222

PIN, LOCKBOLT

PIN, LOCKBOLT
$8.55
You save 5%. $9.00
Leaves in 6-8 days
Required: 1
8
0307236 - Lockbolt
0307236
0307236 0307236

LOCKBOLT, BRACKET

LOCKBOLT, BRACKET
$17.10
You save 5%. $18.00
Leaves in 6-8 days
Required: 1
12
0321577 - 6" ENG MTG BOLT
0321577
0321577 0321577

SCREW, CLAMP TO BOAT 6"

SCREW, CLAMP TO BOAT 6"
Notes: As required for special applications
$12.99
You save 32%. $19.20
Ships Immediately
3 Items in stock
Required: 4
17
0383568 - Thrust Rod And Retainer
0383568
0383568 0383568

THRUST ROD AND RETAINER

THRUST ROD AND RETAINER
$44.99
You save $20.01. $65.00
Ships Immediately
5+ Items in stock
Required: 1
22
0316608 - Locking Lever
0316608
0316608 0316608

LOCKING LEVER

LOCKING LEVER
$2.85
You save 5%. $3.00
Leaves in 6-8 days
Required: 2
23
0313824 - Port Stern Bracket
0313824
0313824 0313824

STERN BRACKET, PORT

STERN BRACKET, PORT
$118.75
You save $6.25. $125.00
Leaves in 6-8 days
Required: 1
30
0315962 - Pin
0315962
0315962 0315962

PIN, LINK

PIN, LINK
$19.95
$20.00
Leaves in 3-5 days
Required: 2
31
0316610 - Reverse Lock Link
0316610
0316610 0316610

LINK, REVERSE LOCK

LINK, REVERSE LOCK
$23.75
You save $1.25. $25.00
Leaves in 6-8 days
Required: 2
32
0315965 - Retainer
0315965
0315965 0315965

SPRING, RETAINER

SPRING, RETAINER
$78.99
You save $34.51. $113.50
Ships Immediately
1 Items in stock
Required: 2
33
0313817 - Spring
0313817
0313817 0313817

SPRING, REVERSE LOCK

SPRING, REVERSE LOCK
$22.09
You save $1.16. $23.25
Leaves in 3-5 days
Required: 2
35
0313821 - Link To Swivel Rod
0313821
0313821 0313821

ROD, LINK TO SWIVEL

ROD, LINK TO SWIVEL
$2.85
You save 5%. $3.00
Leaves in 6-8 days
Required: 2
36
0302858 - Cotter Pin
0302858
0302858 0302858

COTTER PIN

COTTER PIN
$5.59
$5.59
Leaves in 3-5 days
Required: 4
37
0306428 - Washer
0306428
0306428 0306428

WASHER, TILT BOLT

WASHER, TILT BOLT
$.99
You save 51%. $2.00
Ships Immediately
1 Items in stock
Required: 1
39
0315867 - Stop Link
0315867
0315867 0315867

STOP LINK, STARBOARD

STOP LINK, STARBOARD
$19.95
You save $2.05. $22.00
Leaves in 6-8 days
Required: 1
40
0315866 - Stop Link Port
0315866
0315866 0315866

STOP LINK, PORT

STOP LINK, PORT
$9.99
You save 33%. $15.00
Ships Immediately
2 Items in stock
Required: 1
42
0316611 - Link Spring
0316611
0316611 0316611

SPRING, LINK

SPRING, LINK
$5.95
$6.00
Leaves in 6-8 days
Required: 2
48
0321343 - Screw
0321343
0321343 0321343

SCREW

SCREW
$3.33
You save 5%. $3.50
Leaves in 6-8 days
Required: 6
58
0313785 - Grommet
0313785
0313785 0313785

GROMMET

GROMMET
$6.26
You save 5%. $6.59
Leaves in 6-8 days
Required: 4
59
0314245 - Screw
0314245
0314245 0314245

SCREW

SCREW
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 4
62
0384897 - Rubber Mount
0384897
0384897 0384897

RUBBER MOUNT

RUBBER MOUNT
$129.95
You save $8.05. $138.00
Leaves in 6-8 days
Required: 2
64
0314246 - Bushing
0314246
0314246 0314246

BUSHING

BUSHING
$5.95
$6.00
Leaves in 6-8 days
Required: 1
70
0314898 - Locknut
0314898
0314898 0314898

NUT, SCREW

NUT, SCREW
$5.95
$6.00
Leaves in 6-8 days
Required: 2
76
0321638 - Exhaust Housing Adapter
0321638
0321638 0321638

ADAPTER, EXHAUST HOUSING

ADAPTER, EXHAUST HOUSING
$42.99
You save $19.01. $62.00
Ships Immediately
1 Items in stock
Required: 1
88
0307947 - Bumper
0307947
0307947 0307947

BUMPER, STOP LINK

BUMPER, STOP LINK
$3.99
You save 20%. $5.00
Ships Immediately
5+ Items in stock
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
