Select Your Engine:

1983 Evinrude Outboards 55 - E55RSLN

MID-SECTION section

Change Section

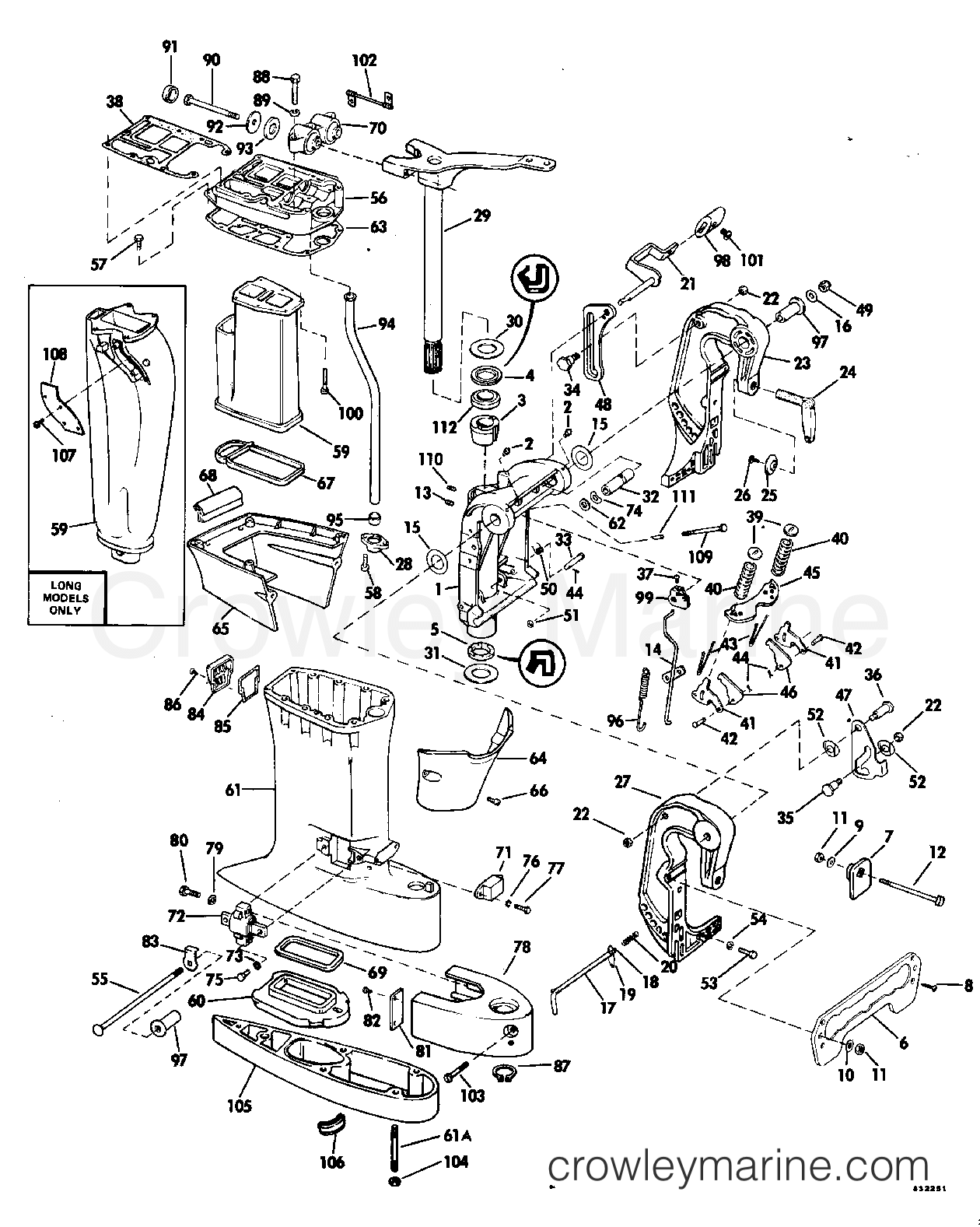

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1983 Evinrude Outboards 55 - E55RSLN - MID-SECTION section
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
0318229 - Swivel Bracket
0318229
0318229 0318229

SWIVEL BRACKET,LONG

SWIVEL BRACKET,LONG
$118.75
You save $6.25. $125.00
Leaves in 6-8 days
Required: 1
3
0317412 - Bushing
0317412
0317412 0317412

BUSHING,UPPER

BUSHING,UPPER
$29.95
You save $1.55. $31.50
Leaves in 3-5 days
Required: 1
5
0318298 - Seal
0318298
0318298 0318298

SEAL,LOWER

SEAL,LOWER
$12.99
You save 6%. $13.75
Ships Immediately
1 Items in stock
Required: 1
6
0357732 - PLATE, TRANSOM
0357732 0323539
0357732

PLATE

PLATE
$38.48
You save $2.02. $40.50
Leaves in 3-5 days
Required: 1
7
0315774 - Pad
0315774
0315774 0315774

PAD,BRACKET

PAD,BRACKET
$22.99
You save 30%. $32.79
Ships Immediately
5+ Items in stock
Required: 2
8
0303776 - Screw
0303776
0303776 0303776

SCREW

SCREW
$2.61
You save 5%. $2.75
Leaves in 3-5 days
Required: 4
9
0315776 - Washer
0315776
0315776 0315776

WASHER

WASHER
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 2
11
0310702 - Screw Nut
0310702
0310702 0310702

NUT

NUT
$7.36
You save 5%. $7.75
Leaves in 6-8 days
Required: 4
14
0387531 - Rod & Bracket Assembly
0387531
0387531 0387531

ROD & BRACKET

ROD & BRACKET
$19.99
You save 32%. $29.50
Ships Immediately
1 Items in stock
Required: 1
16
0314099 - Washer
0314099
0314099 0314099

WASHER,TILT BOLT

WASHER,TILT BOLT
$8.55
You save 5%. $9.00
Leaves in 3-5 days
Required: 1
19
0318386 - Retainer
0318386
0318386 0318386

RETAINER

RETAINER
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
26
0434757 - PLATE&SCREW AY
0434757 0321923
0434757

SCREW,PLATE

SCREW,PLATE
$34.99
You save $15.26. $50.25
Ships Immediately
2 Items in stock
Required: 1
28
0315860 - Water Tube Cover
0315860
0315860 0315860

COVER,WATER TUBE

COVER,WATER TUBE
$18.04
You save 5%. $18.99
Leaves in 6-8 days
Required: 1
30
0318295 - Thrust Washer
0318295
0318295 0318295

THRUST WASHER,UPPER

THRUST WASHER,UPPER
$9.99
You save 37%. $15.75
Ships Immediately
1 Items in stock
Required: 1
31
0318296 - Thrust Washer
0318296
0318296 0318296

THRUST WASHER,LOWER

THRUST WASHER,LOWER
$12.99
You save 6%. $13.75
Leaves in 3-5 days
Required: 1
32
0318168 - Bushing
0318168
0318168 0318168

BUSHING

BUSHING
$23.99
You save $1.26. $25.25
Leaves in 3-5 days
Required: 1
33
0315961 - Link Pin-
0315961
0315961 0315961

PIN,LINK TO BRACKET

PIN,LINK TO BRACKET
$9.99
You save 5%. $10.50
Ships Immediately
2 Items in stock
Required: 2
34
0318167 - Stop Link Screw
0318167
0318167 0318167

SCREW,STOP LINK

SCREW,STOP LINK
$34.95
You save $2.80. $37.75
Leaves in 3-5 days
Required: 1
37
0319108 - Screw
0319108
0319108 0319108

SET SCREW

SET SCREW
$5.99
You save 30%. $8.50
Ships Immediately
1 Items in stock
Required: 1
40
0313817 - Spring
0313817
0313817 0313817

SPRING,REVERSE LOCK

SPRING,REVERSE LOCK
$22.09
You save $1.16. $23.25
Leaves in 3-5 days
Required: 2
43
0315965 - Retainer
0315965
0315965 0315965

RETAINER,SPRING

RETAINER,SPRING
$78.99
You save $34.51. $113.50
Ships Immediately
1 Items in stock
Required: 2
44
0302858 - Cotter Pin
0302858
0302858 0302858

COTTER PIN

COTTER PIN
$5.59
$5.59
Leaves in 3-5 days
Required: 4
45
0321234 - Reverse Lock Plate
0321234
0321234 0321234

PLATE,REVERSE LOCK

PLATE,REVERSE LOCK
$14.99
You save 33%. $22.25
Ships Immediately
1 Items in stock
Required: 1
49
0313990 - Screw Nut
0313990
0313990 0313990

NUT,TILT BOLT

NUT,TILT BOLT
$8.55
You save 5%. $9.00
Leaves in 3-5 days
Required: 1
50
0315967 - Link Spring-
0315967
0315967 0315967

SPRING,LINK

SPRING,LINK
$33.25
You save $1.75. $35.00
Leaves in 3-5 days
Required: 2
55
0327997 - Tilting shaft Bolt
0327997
0327997 0327997

BOLT,TILTING SHAFT

BOLT,TILTING SHAFT
$36.19
You save $1.90. $38.09
Leaves in 6-8 days
Required: 1
63
0328283 - Gasket (Adaptor to housing)
0328283
0328283 0328283

GASKET,ADAPTER TO HOUSING

GASKET,ADAPTER TO HOUSING
$4.99
You save 33%. $7.50
Ships Immediately
5+ Items in stock
Required: 1
72
0388411 - Rubber Mount Assembly
0388411
0388411 0388411

RUBBER MOUNT,LOWER

RUBBER MOUNT,LOWER
$98.80
You save $5.20. $104.00
Leaves in 3-5 days
Required: 2
81
0316055 - Mount Bracket Cover
0316055
0316055 0316055

COVER,MOUNT BRACKET

COVER,MOUNT BRACKET
$11.99
You save 31%. $17.47
Ships Immediately
1 Items in stock
Required: 2
84
0315864 - Exhaust Relief Cover
0315864
0315864 0315864

COVER,EXHAUST RELIEF

COVER,EXHAUST RELIEF
$12.73
You save 5%. $13.40
Leaves in 6-8 days
Required: 1
86
0305143 - Screw
0305143
0305143 0305143

SCREW,COVER TO HOUSING

SCREW,COVER TO HOUSING
$3.99
You save 36%. $6.19
Ships Immediately
5+ Items in stock
Required: 2
90
0317648 - Screw
0317648
0317648 0317648

SCREW,UPPER MOUNT

SCREW,UPPER MOUNT
$9.98
You save 5%. $10.50
Leaves in 3-5 days
Required: 2
96
0321426 - Spring
0321426
0321426 0321426

SPRING,REVERSE LOCK

SPRING,REVERSE LOCK
$17.99
You save 10%. $20.00
Ships Immediately
1 Items in stock
Required: 1
99
0319904 - Bellcrank
0319904
0319904 0319904

BELLCRANK

BELLCRANK
$16.43
You save 5%. $17.29
Leaves in 6-8 days
Required: 1
101
0318238 - Knob tilt lock Screw
0318238
0318238 0318238

SCREW,KNOB

SCREW,KNOB
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
107
0306643 - Screw
0306643
0306643 0306643

SCREW,COVER

SCREW,COVER
$2.99
You save 17%. $3.59
Ships Immediately
2 Items in stock
Required: 4
110
0317416 - Thrust ring pivot Screw
0317416
0317416 0317416

SCREW,THRUST RING

SCREW,THRUST RING
$11.16
You save 5%. $11.75
Leaves in 3-5 days
Required: 1
111
0317418 - Pin
0317418
0317418 0317418

PIN,STEERING FRICTION

PIN,STEERING FRICTION
$19.95
You save $1.05. $21.00
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
