1981 Evinrude Outboards 150 - E150TRLCIA

EXHAUST HOUSING section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

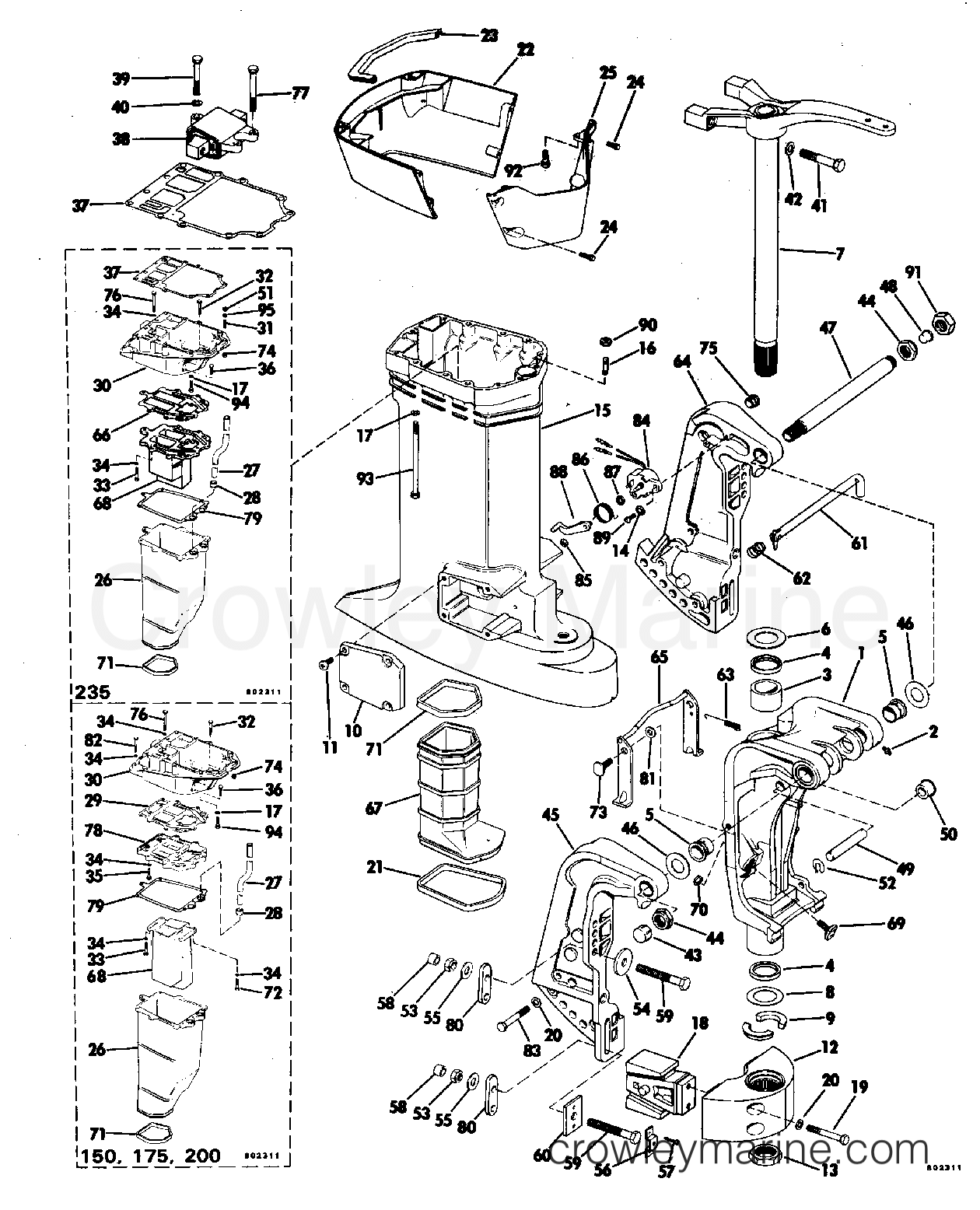

1981 Evinrude Outboards 150 - E150TRLCIA EXHAUST HOUSING section
Use two fingers to zoom
and move the diagram
1981 Evinrude Outboards 150 - E150TRLCIA - EXHAUST HOUSING section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

63
0323142 - Trail lock return Spring
0323142
0323142 ← 0323142

SPRING, TRAIL LOCK

SPRING, TRAIL LOCK
$11.88
You save 5%. $12.50
Leaves in 6-8 days
Required: 1
69
0321499 - Trim Rod Thrust Pad
0321499
0321499 ← 0321499

THRUST PAD

THRUST PAD
$72.91
You save $3.84. $76.75
Leaves in 3-5 days
Required: 2
73
0321389 - Shoulder Screw
0321389
0321389 ← 0321389

SHOULDER SCREW

SHOULDER SCREW
$.00
You save 100%. $.00
Ships Immediately
5+ Items in stock
Required: 2
80
0321735 - Stern Bracket Support
0321735
0321735 ← 0321735

SUPPORT, STERN BRACKET

SUPPORT, STERN BRACKET
$21.99
You save 29%. $30.79
Ships Immediately
5+ Items in stock
Required: 4
81
0121025 - Washer
0121025
0121025 ← 0121025

WASHER, SCREW TO BRACKET

WASHER, SCREW TO BRACKET
$2.99
You save 25%. $4.00
Ships Immediately
3 Items in stock
Required: 2
82
0600014 - Screw
0600014
0600014 ← 0600014

SCREW, 150, 175, 200

SCREW, 150, 175, 200
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 2
85
0511527 - Arm Retainer
0511527
0511527 ← 0511527

RETAINER

RETAINER
$7.99
You save 6%. $8.50
Ships Immediately
2 Items in stock
Required: 1
87
0320689 - Rotary switch Assembly Nut
0320689
0320689 ← 0320689

NUT

NUT
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
94
0302479 - Screw
0302479
0302479 ← 0302479

SCREW

SCREW
$5.75
$5.75
Leaves in 3-5 days
Required: 2
8
0320865 - Thrust Washer
0320865
0320865 ← 0320865

THRUST WASHER

THRUST WASHER
$19.95
You save $2.05. $22.00
Leaves in 6-8 days
Required: 1
11
0322000 - Starter to crankcase Screw
0322000
0322000 ← 0322000

SCREW, COVER

SCREW, COVER
$8.26
You save 5%. $8.69
Leaves in 6-8 days
Required: 8
19
0318612 - Screw
0318612 ← 0321737
0318612

SCREW, MOUNT

SCREW, MOUNT
Notes: MODELS WITH "H" MODEL NUMBER SUFFIX ONLY
$5.59
$5.59
Leaves in 3-5 days
Required: 4
19
0328078 - Mount Bracket Screw
0328078 ← 0327052
0328078

SCREW, MOUNT

SCREW, MOUNT
Notes: MODELS WITH "M", "A" OR "B" MODEL NUMBER SUFFIX ONLY
$19.95
$20.00
Leaves in 3-5 days
Required: 4
20
0307708 - LockWasher
0307708
0307708 ← 0307708

LOCKWASHER, MOUNT

LOCKWASHER, MOUNT
Notes: MODELS WITH "H" MODEL NUMBER SUFFIX ONLY
$2.99
You save 20%. $3.75
Ships Immediately
3 Items in stock
Required: 10
20
0306314 - LockWasher
0306314
0306314 ← 0306314

LOCKWASHER, MOUNT

LOCKWASHER, MOUNT
Notes: MODELS WITH "M", "A" OR "B" MODEL NUMBER SUFFIX ONLY
$2.99
You save 20%. $3.75
Ships Immediately
1 Items in stock
Required: 4
31
0301185 - Stud
0301185
0301185 ← 0301185

STUD, 235 ONLY

STUD, 235 ONLY
$2.85
You save 5%. $3.00
Leaves in 6-8 days
Required: 3
39
0301431 - Upper Mount Screw
0301431
0301431 ← 0301431

SCREW, UPPER MOUNT

SCREW, UPPER MOUNT
$2.99
You save 34%. $4.50
Ships Immediately
5+ Items in stock
Required: 1
52
0321054 - Spring Clip 2Pk
0321054
0321054 ← 0321054

SPRING CLIP

SPRING CLIP
$22.99
You save $2.26. $25.25
Ships Immediately
5+ Items in stock
Required: 2
57
0319886 - Screw
0319886
0319886 ← 0319886

SCREW

SCREW
$2.99
You save 20%. $3.75
Ships Immediately
4 Items in stock
Required: 4

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
