1981 Evinrude Outboards 140 - E140MLCIH

IGNITION SYSTEM section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

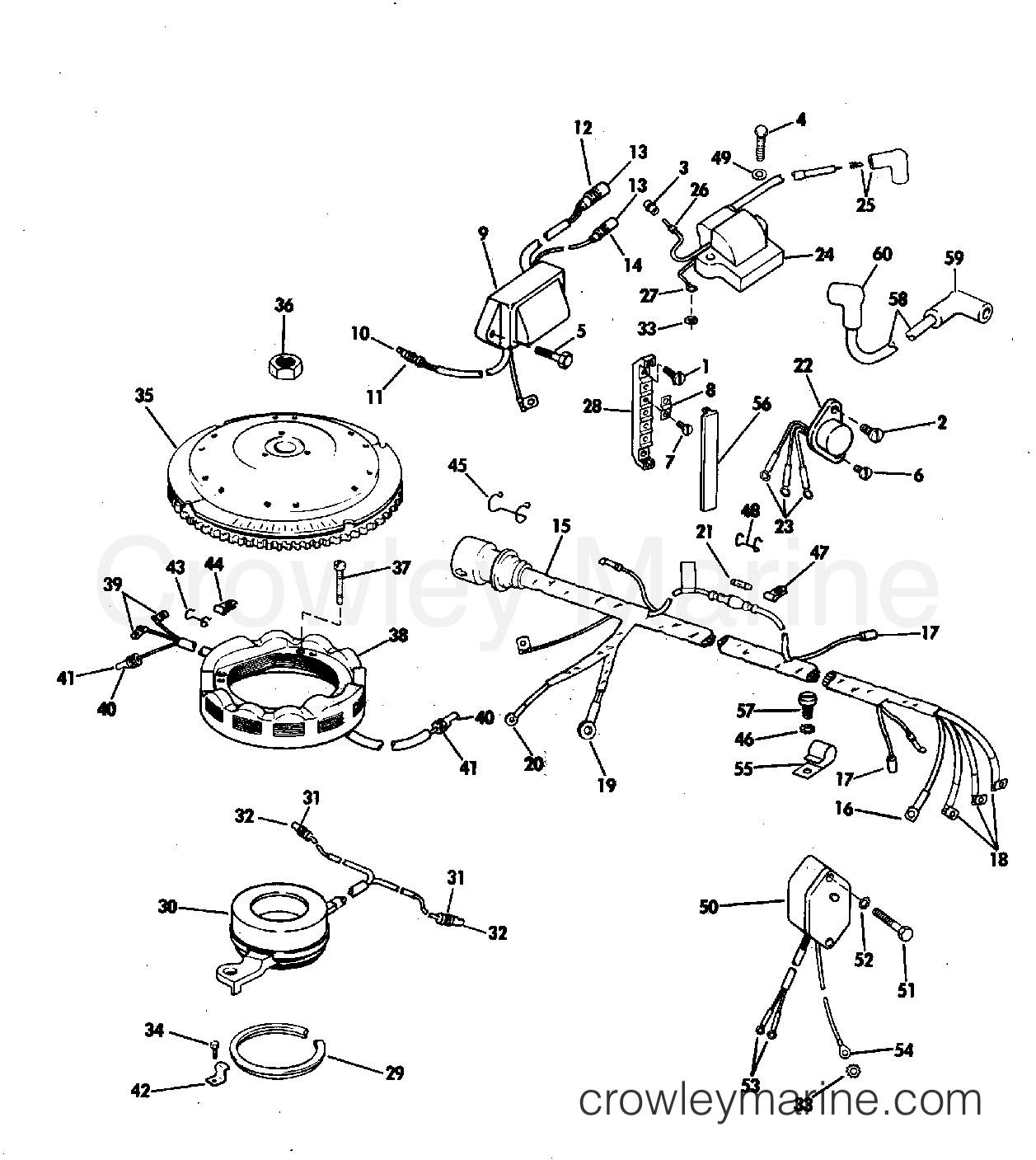

1981 Evinrude Outboards 140 - E140MLCIH IGNITION SYSTEM section
Use two fingers to zoom
and move the diagram
1981 Evinrude Outboards 140 - E140MLCIH - IGNITION SYSTEM section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

10
0511989 - Male Connector Pin, 2 Terminal
0511989
0511989 ← 0511989

CONNECTOR

CONNECTOR
$9.99
You save 34%. $15.25
Ships Immediately
1 Items in stock
Required: 1
13
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 9%. $1.09
Ships Immediately
5+ Items in stock
Required: 6
16
0510780 - Ring Terminal
0510780
0510780 ← 0510780

TERMINAL

TERMINAL
$3.99
You save 5%. $4.19
Ships Immediately
5+ Items in stock
Required: 1
25
0581027 - Spark Plug Boot
0581027
0581027 ← 0581027

COVER & SPRING

COVER & SPRING
Notes: MODELS WITH "H" MODEL NUMBER SUFFIX
$5.99
You save 16%. $7.09
Ships Immediately
5+ Items in stock
Required: 1
31
0511991 - Leads connector
0511991
0511991 ← 0511991

CONNECTOR

CONNECTOR
$19.95
You save $1.05. $21.00
Leaves in 3-5 days
Required: 2
41
0511989 - Male Connector Pin, 2 Terminal
0511989
0511989 ← 0511989

CONNECTOR PLUG

CONNECTOR PLUG
$9.99
You save 34%. $15.25
Ships Immediately
1 Items in stock
Required: 2
42
0326439 - Clamp
0326439
0326439 ← 0326439

CLAMP, TIMER BASE

CLAMP, TIMER BASE
$19.95
You save 5%. $20.89
Leaves in 6-8 days
Required: 4
45
0511618 - Retainer
0511618
0511618 ← 0511618

RETAINER, CABLE

RETAINER, CABLE
$3.99
You save 20%. $5.00
Ships Immediately
5+ Items in stock
Required: 4
51
0304913 - Screw
0304913
0304913 ← 0304913

SCREW, MOUNTING

SCREW, MOUNTING
Notes: USED ONLY ON MODELS WITH POWER TILT & TRIM
$4.99
You save 24%. $6.59
Ships Immediately
4 Items in stock
Required: 2
52
0306488 - LockWasher
0306488
0306488 ← 0306488

LOCKWASHER

LOCKWASHER
Notes: USED ONLY ON MODELS WITH POWER TILT & TRIM
$3.99
$4.00
Ships Immediately
5+ Items in stock
Required: 2
53
0510780 - Ring Terminal
0510780
0510780 ← 0510780

TERMINAL

TERMINAL
Notes: USED ONLY ON MODELS WITH POWER TILT & TRIM
$3.99
You save 5%. $4.19
Ships Immediately
5+ Items in stock
Required: 2
54
0510818 - Terminal
0510818
0510818 ← 0510818

TERMINAL

TERMINAL
Notes: USED ONLY ON MODELS WITH POWER TILT & TRIM
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 1
59
0581027 - Spark Plug Boot
0581027
0581027 ← 0581027

COVER & TERMINAL

COVER & TERMINAL
Notes: MODELS WITH "M" MODEL NUMBER SUFFIX
$5.99
You save 16%. $7.09
Ships Immediately
5+ Items in stock
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
