1981 Evinrude Outboards 70 - E70ELCIH

GEARCASE-15" TRANSOM section

Change Section

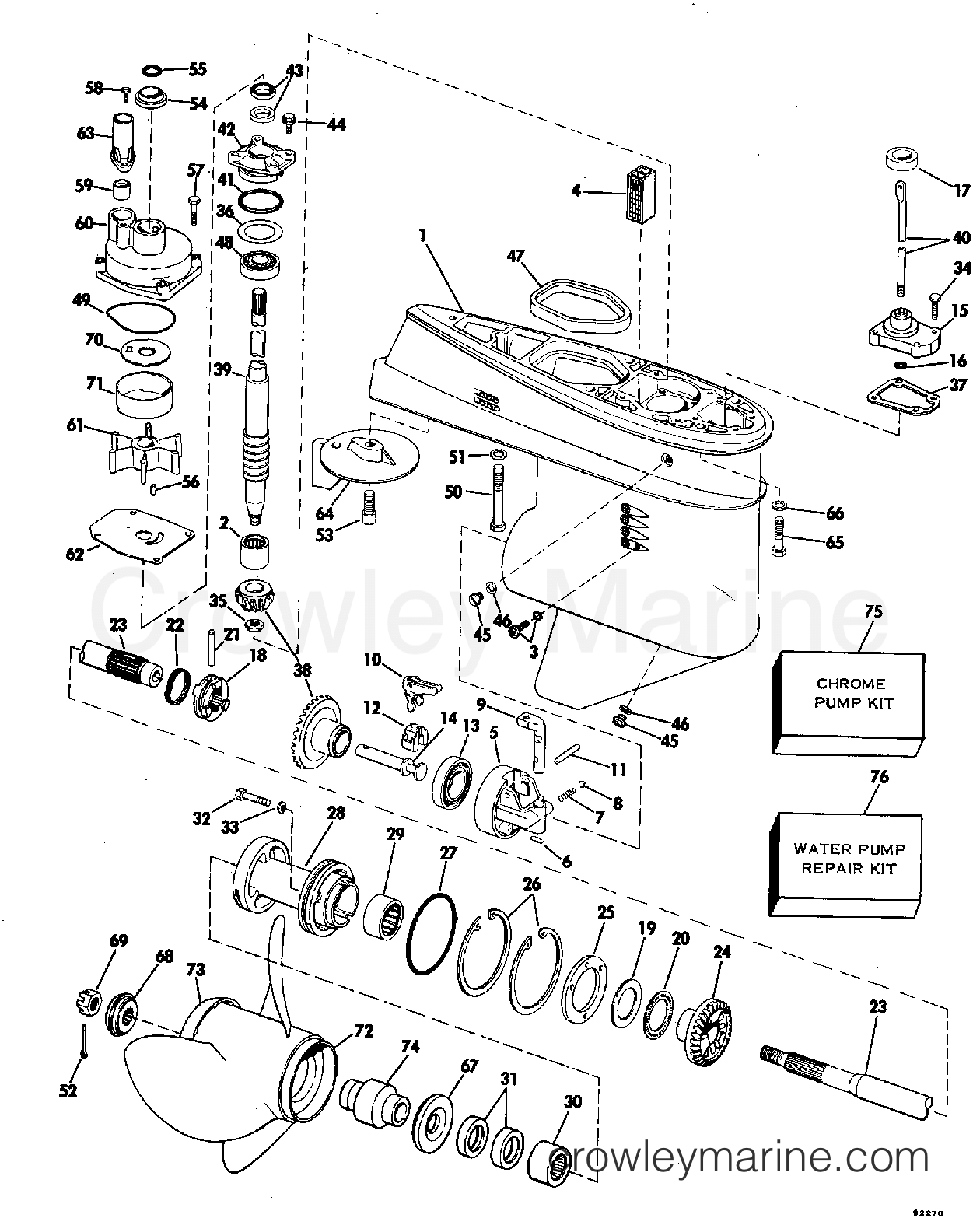

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1981 Evinrude Outboards 70 - E70ELCIH GEARCASE-15" TRANSOM section
Use two fingers to zoom
and move the diagram
1981 Evinrude Outboards 70 - E70ELCIH - GEARCASE-15" TRANSOM section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

6
0202136 - Pin
0202136
0202136 ← 0202136

. PIN, LOCATING

. PIN, LOCATING
$2.85
You save 5%. $3.00
Leaves in 6-8 days
Required: 1
9
0322636 - Detent-Shifter
0322636
0322636 ← 0322636

DETENT, SHIFTER

DETENT, SHIFTER
$94.95
You save $5.05. $100.00
Leaves in 6-8 days
Required: 1
14
0320172 - Shaft Shifter
0320172
0320172 ← 0320172

SHAFT, SHIFTER

SHAFT, SHIFTER
$54.99
You save 10%. $60.99
Ships Immediately
1 Items in stock
Required: 1
18
0319895 - Clutch Dog Shifter
0319895
0319895 ← 0319895

SHIFTER, CLUTCH DOG

SHIFTER, CLUTCH DOG
$174.95
You save $9.34. $184.29
Leaves in 3-5 days
Required: 1
19
0320115 - Thrust Washer
0320115
0320115 ← 0320115

THRUST WASHER

THRUST WASHER
$26.60
You save $1.40. $28.00
Leaves in 6-8 days
Required: 1
23
0386659 - Propeller Shaft Assembly
0386659
0386659 ← 0386659

PROPELLER SHAFT ASSEMBLY.

PROPELLER SHAFT ASSEMBLY.
$422.99
You save $181.50. $604.49
Ships Immediately
1 Items in stock
Required: 1
48
0385175 - Roller Bearing Assembly
0385175
0385175 ← 0385175

CONE & ROLLER ASSEMBLY.

CONE & ROLLER ASSEMBLY.
$29.99
You save 11%. $33.75
Ships Immediately
1 Items in stock
Required: 1
49
0324981 - Impeller Housing Seal
0324981
0324981 ← 0324981

SEAL, IMPRELLER HOUSING

SEAL, IMPRELLER HOUSING
Notes: Also included in WATER PUMP REPAIR KIT, ( includes impeller hsg) 391634
$9.99
You save 11%. $11.19
Ships Immediately
3 Items in stock
Required: 1
55
0326649 - Crankshaft to driveshaft O-Ring
0326649
0326649 ← 0326649

O-RING, DRIVESHAFT

O-RING, DRIVESHAFT
Notes: PART NUMBERS NEW FOR THIS MODEL YEAR Also included in WATER PUMP REPAIR KIT, ( includes impeller hsg) 391634
$2.95
You save 5%. $3.09
Ships Immediately
5+ Items in stock
Required: 1
56
0323950 - Impeller Key
0323950
0323950 ← 0323950

KEY, DRIVESHAFT TO IMPELLER

KEY, DRIVESHAFT TO IMPELLER
Notes: Also included in WATER PUMP REPAIR KIT, ( includes impeller hsg) 391634
$14.95
You save 11%. $16.75
Leaves in 3-5 days
Required: 1
57
0324334 - Screw
0324334
0324334 ← 0324334

SCREW, IMPELLER HOUSING

SCREW, IMPELLER HOUSING
Notes: Also included in WATER PUMP REPAIR KIT, ( includes impeller hsg) 391634
$3.99
You save 11%. $4.49
Ships Immediately
5+ Items in stock
Required: 4
58
0319292 - Screw
0319292
0319292 ← 0319292

SCREW, GUIDE TO HOUSING

SCREW, GUIDE TO HOUSING
Notes: Also included in WATER PUMP REPAIR KIT, ( includes impeller hsg) 391634
$1.90
You save 5%. $2.00
Leaves in 6-8 days
Required: 1
59
0314008 - Water tube to exhaust Housing Grommet
0314008
0314008 ← 0314008

GROMMET, WATER TUBE

GROMMET, WATER TUBE
Notes: Also included in WATER PUMP REPAIR KIT, ( includes impeller hsg) 391634
$2.95
You save 13%. $3.39
Ships Immediately
5+ Items in stock
Required: 1
60
0391049 - IMP HSG
0391049
0391049 ← 0391049

IMPELLER HOUSING ASSEMBLY.

IMPELLER HOUSING ASSEMBLY.
$.00
You save 100%. $.00
Ships Immediately
3 Items in stock
Required: 1
70
0321940 - Impeller Housing Plate
0321940
0321940 ← 0321940

PLATE, IMPELLER HOUSING

PLATE, IMPELLER HOUSING
Notes: Also included in WATER PUMP REPAIR KIT, ( includes impeller hsg) 391634
$19.95
$20.19
Leaves in 3-5 days
Required: 1
71
0324980 - Impeller Housing Liner
0324980
0324980 ← 0324980

LINER, IMPELLER HOUSING

LINER, IMPELLER HOUSING
Notes: Also included in WATER PUMP REPAIR KIT, ( includes impeller hsg) 391634
$23.99
You save $1.26. $25.25
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
