1981 Evinrude Outboards 70 - E70ELCIH

CARBURETOR 15 INCH TRANSOM section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1981 Evinrude Outboards 70 - E70ELCIH CARBURETOR 15 INCH TRANSOM section
Use two fingers to zoom
and move the diagram

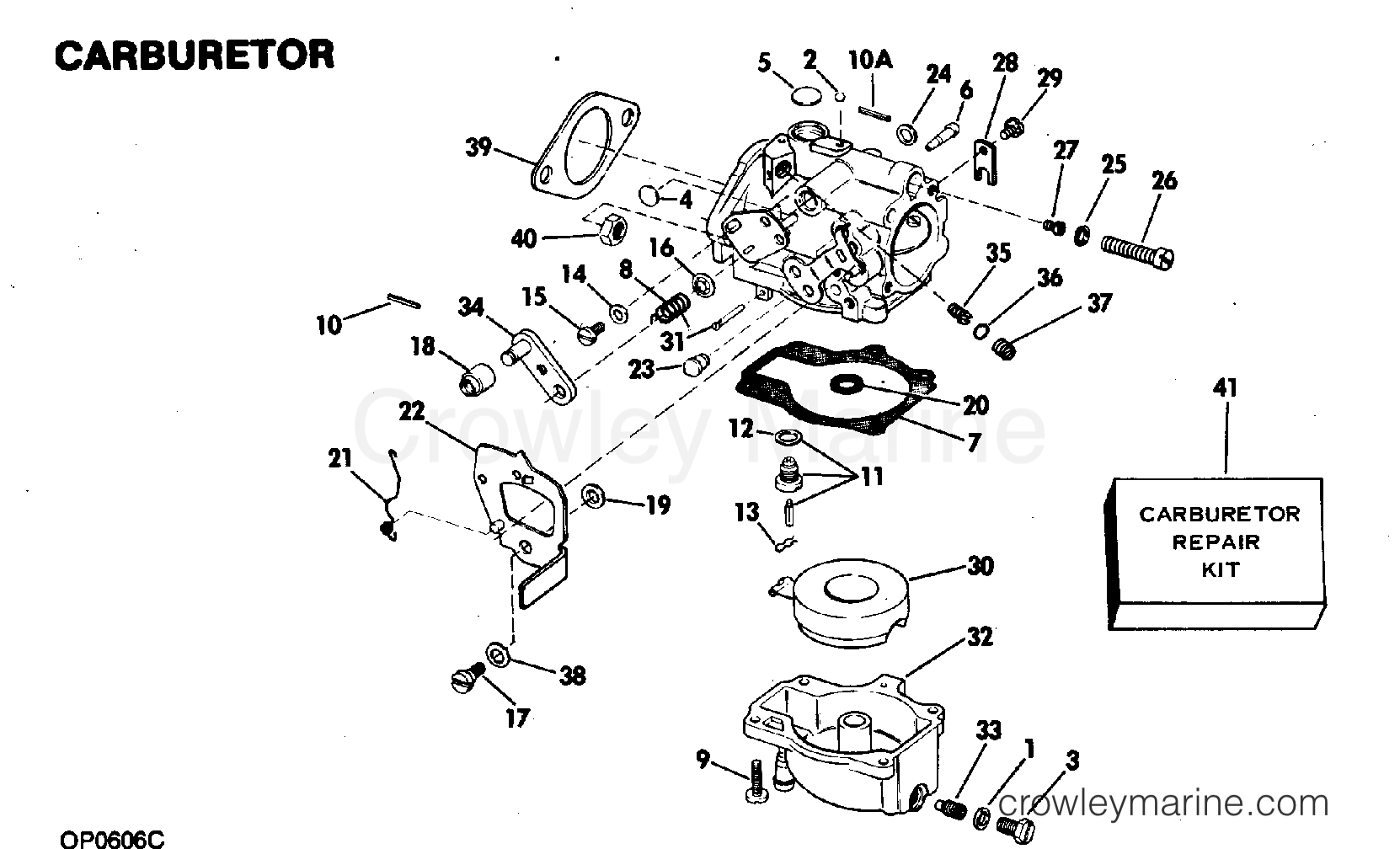

1981 Evinrude Outboards 70 - E70ELCIH - CARBURETOR 15 INCH TRANSOM section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

10A
0314575 - Roll Pin
0314575
0314575 ← 0314575

ROLL PIN

ROLL PIN
Notes: USED ON UPPER AND LOWER CARBURETOR
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
14
0306547 - Follower Screw Washer
0306547
0306547 ← 0306547

WASHER, SCREW

WASHER, SCREW
Notes: USED ON MIDDLE CARBURETOR PART NUMBERS NEW FOR THIS MODEL YEAR
$3.33
You save 5%. $3.50
Leaves in 6-8 days
Required: 1
16
0313973 - Applique Fastener (side and rear)
0313973
0313973 ← 0313973

RETAINER

RETAINER
$5.75
$5.75
Leaves in 3-5 days
Required: 1
17
0307382 - Shoulder Screw
0307382
0307382 ← 0307382

SHOULDER SCREW

SHOULDER SCREW
Notes: USED ON MIDDLE CARBURETOR
$8.55
You save 5%. $9.00
Leaves in 6-8 days
Required: 1
23
0314301 - Detent Pin
0314301
0314301 ← 0314301

PIN, DETENT

PIN, DETENT
Notes: USED ON MIDDLE CARBURETOR
$1.43
You save 5%. $1.50
Leaves in 6-8 days
Required: 1
27
0318832 - Orifice No. 35
0318832
0318832 ← 0318832

ORIFICE, NO. 35

ORIFICE, NO. 35
Notes: EARLY PRODUCTION WITH PART # 389239,389240,391532,391533 STA 70 MODELS ONLY
$14.96
You save 5%. $15.75
Leaves in 6-8 days
Required: 1
27
0327745 - Orifice # 40
0327745
0327745 ← 0327745

ORIFICE, NO. 40

ORIFICE, NO. 40
Notes: LATE PRODUCTION WITH PART NO. 391608, 391609 STAMPED ON BODY 70 MODELS ONLY
$13.06
You save 5%. $13.75
Leaves in 6-8 days
Required: 1
27
0325829 - Idle Orifice -
0325829
0325829 ← 0325829

ORIFICE, NO 42

ORIFICE, NO 42
Notes: 70 MODELS ONLY LATE PRODUCTION WITH PART NO. 392578 STAMPED ON CARB BODY PART NUMBERS NEW FOR THIS MODEL YEAR
$22.09
You save $1.16. $23.25
Leaves in 6-8 days
Required: 1
27
0325829 - Idle Orifice -
0325829
0325829 ← 0325829

ORIFICE, NO. 42, 20 INCH TRANSOM

ORIFICE, NO. 42, 20 INCH TRANSOM
Notes: 70 MODELS ONLY LATE PRODUCTION WITH PART NO. 392578 STAMPED ON CARB BODY PART NUMBERS NEW FOR THIS MODEL YEAR
$22.09
You save $1.16. $23.25
Leaves in 6-8 days
Required: 1
27
0327689 - Orifice
0327689
0327689 ← 0327689

ORIFICE, NO. 67, 20 INCH TRANSOM

ORIFICE, NO. 67, 20 INCH TRANSOM
Notes: 75 MODELS ONLY LATE PRODUCTION WITH PART NO. 392579 STAMPED ON BODY PART NUMBERS NEW FOR THIS MODEL YEAR
$14.99
You save 17%. $18.00
Ships Immediately
5+ Items in stock
Required: 1
28
0314906 - Choke shaft Clip
0314906
0314906 ← 0314906

CLIP, CHOKE SHAFT

CLIP, CHOKE SHAFT
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 1
29
0311516 - Screw
0311516
0311516 ← 0311516

SCREW, CLIP

SCREW, CLIP
$.99
You save 34%. $1.50
Ships Immediately
1 Items in stock
Required: 1
33
0318684 - No. 56d Orifice Plug
0318684
0318684 ← 0318684

ORIFICE PLUG, 56D

ORIFICE PLUG, 56D
Notes: 75 MODELS ONLY LATE PRODUCTION WITH PART NO. 392579 STAMPED ON BODY PART NUMBERS NEW FOR THIS MODEL YEAR
$12.99
You save 6%. $13.75
Ships Immediately
2 Items in stock
Required: 1
34
0382370 - Lower Carburetor Lever & Pin Assembly
0382370
0382370 ← 0382370

LEVER ARM & PIN ASSEMBLY.

LEVER ARM & PIN ASSEMBLY.
Notes: USED ON MIDDLE CARBURETOR
$9.99
You save 33%. $15.00
Ships Immediately
2 Items in stock
Required: 1
35
0326928 - Orifice #55
0326928
0326928 ← 0326928

ORIFICE, NO. 55

ORIFICE, NO. 55
Notes: LATE PRODUCTION WITH PART NO. 391608, 391609 STAMPED ON BODY 70 MODELS ONLY
$13.06
You save 5%. $13.75
Leaves in 6-8 days
Required: 1
35
0327739 - Orifice
0327739
0327739 ← 0327739

ORIFICE, NO. 59, 20 INCH TRANSOM

ORIFICE, NO. 59, 20 INCH TRANSOM
Notes: 75 MODELS ONLY LATE PRODUCTION WITH PART NO. 392579 STAMPED ON BODY PART NUMBERS NEW FOR THIS MODEL YEAR
$9.95
You save 10%. $11.00
Leaves in 6-8 days
Required: 1
35
0324977 - Orifice-Idle 61
0324977
0324977 ← 0324977

ORIFICE, NO. 61, 20 INCH TRANSOM

ORIFICE, NO. 61, 20 INCH TRANSOM
Notes: LATE PRODUCTION WITH PART #391632,391633 STAMPED ON BODY USED ON UPPER AND LOWER CARBURETOR 75 MODELS ONLY
$7.60
You save 5%. $8.00
Leaves in 6-8 days
Required: 1
35
0326856 - Orifice No. 62
0326856
0326856 ← 0326856

ORIFICE, NO. 62

ORIFICE, NO. 62
Notes: EARLY PRODUCTION WITH PART # 389239,389240,391532,391533 STA 70 MODELS ONLY
$14.95
You save $1.05. $16.00
Leaves in 6-8 days
Required: 1
35
0327740 - Orifice
0327740
0327740 ← 0327740

ORIFICE, O. 68

ORIFICE, O. 68
Notes: 70 MODELS ONLY LATE PRODUCTION WITH PART NO. 392578 STAMPED ON CARB BODY PART NUMBERS NEW FOR THIS MODEL YEAR
$17.10
You save 5%. $18.00
Leaves in 6-8 days
Required: 1
38
0315074 - Upper Carburetor Bow Washer
0315074
0315074 ← 0315074

BOW WASHER

BOW WASHER
Notes: USED ON MIDDLE CARBURETOR
$6.65
You save 5%. $7.00
Leaves in 6-8 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
