1980 Johnson Outboards 25 - J25RLCSA

MOTOR COVER section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

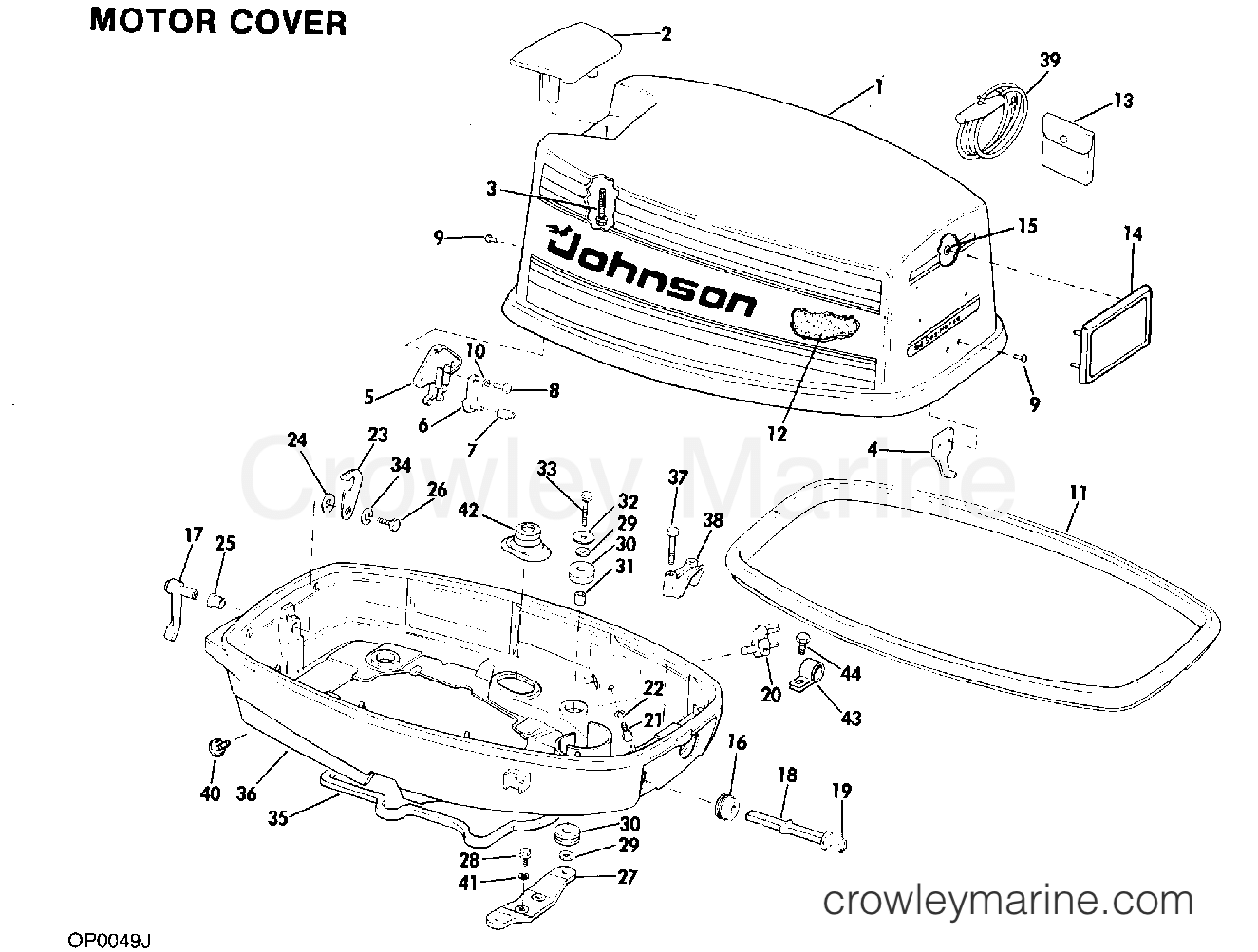

1980 Johnson Outboards 25 - J25RLCSA MOTOR COVER section
Use two fingers to zoom
and move the diagram
1980 Johnson Outboards 25 - J25RLCSA - MOTOR COVER section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

4
0320400 - Engine cover Hook, front
0320400
0320400 ← 0320400

HOOK,MOTOR COVER

HOOK,MOTOR COVER
$36.19
You save $1.90. $38.09
Leaves in 6-8 days
Required: 1
6
0384332 - Slide & Pin
0384332
0384332 ← 0384332

SLIDE&PIN

SLIDE&PIN
$29.95
You save $2.05. $32.00
Leaves in 6-8 days
Required: 1
9
0554355 - Rivet
0554355
0554355 ← 0554355

RIVET

RIVET
$6.99
You save 9%. $7.69
Ships Immediately
3 Items in stock
Required: 5
15
0204476 - 140 Hp Appliques Fastener (Port/Starboard)
0204476
0204476 ← 0204476

FASTENER

FASTENER
$3.99
You save 16%. $4.75
Ships Immediately
2 Items in stock
Required: 4
26
0306487 - Screw
0306487
0306487 ← 0306487

SCREW

SCREW
$5.99
You save 14%. $7.00
Ships Immediately
3 Items in stock
Required: 1
27
0325868 - Mount Bracket
0325868
0325868 ← 0325868

BRACKET,COVER MOUNT

BRACKET,COVER MOUNT
$47.12
You save $2.48. $49.60
Leaves in 6-8 days
Required: 1
28
0306487 - Screw
0306487
0306487 ← 0306487

SCREW,BRACKET

SCREW,BRACKET
$5.99
You save 14%. $7.00
Ships Immediately
3 Items in stock
Required: 2
29
0306482 - Washer
0306482
0306482 ← 0306482

WASHER,GROMMET TO COVER

WASHER,GROMMET TO COVER
$4.99
You save 25%. $6.69
Ships Immediately
5+ Items in stock
Required: 8
32
0203622 - Washer
0203622
0203622 ← 0203622

WASHER

WASHER
$7.31
You save 5%. $7.69
Leaves in 6-8 days
Required: 6
42
0304019 - Grommet
0304019
0304019 ← 0304019

GROMMET,CONTROL SHAFT

GROMMET,CONTROL SHAFT
$34.95
You save $2.05. $37.00
Leaves in 3-5 days
Required: 1
44
0306487 - Screw
0306487
0306487 ← 0306487

SCREW,BATTERY CABLE CLAMP

SCREW,BATTERY CABLE CLAMP
Notes: 25 TE Models
$5.99
You save 14%. $7.00
Ships Immediately
3 Items in stock
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
