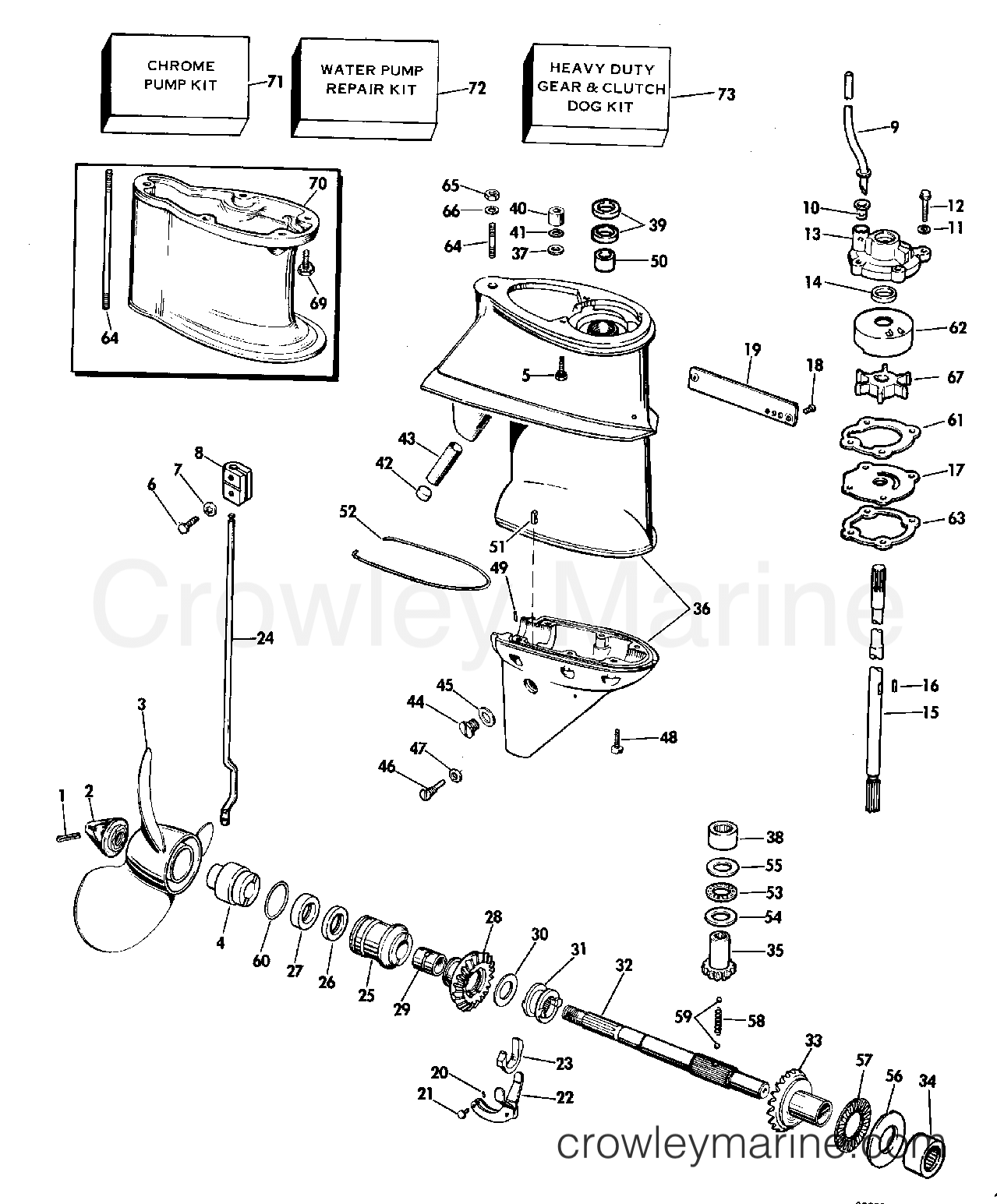

1979 Outboard 35 - 35EL79A GEARCASE - 25 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1979 Outboard 35 - 35EL79A - GEARCASE - 25

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

0306394 ← 0306394

COTTER PIN,POPELLER NUT

$0.95

You save 14%. ~~$1.10~~

Product reviews (90)

Ships immediately

5+ in stock

0390294

NUT,PROPELLER

$32.95

You save $3.04. ~~$35.99~~

Product reviews (16)

Ships immediately

5+ in stock

0389067 ← 0389067

PROPELLER,9-1/4 X 7

$124.95

~~$125.00~~

No longer available

Search Nationwide Inventory

0763585

PROPELLER,9 X 9

$169.99

You save $6.00. ~~$175.99~~

Ships immediately

1 in stock

0763589

PROPELLER,9 X 10

$169.95

You save $8.04. ~~$177.99~~

Cross Ship

Aluminum Prop - 3 Blade 9.25x11RH Aluminum

0763584

PROPELLER,9-1/4 X 11

$167.19

You save $8.80. ~~$175.99~~

Product reviews (8)

Ships immediately

1 in stock

0389321 ← 0389321

PROPELLER,9-1/4 X 12 STAINLESS STEEL

$259.80

No longer available

Search Nationwide Inventory

0389393 ← 0389393

PROPELLER,9-1/4 X 9 STAINLESS STEEL

$124.95

~~$125.00~~

No longer available

Search Nationwide Inventory

0389281 ← 0389281

PROPELLER BUSHING ASSEMBLY

$48.00

Product reviews (1)

No longer available

Search Nationwide Inventory

0308743 ← 0308743

SCREW,GEARCASE TO HOUSING

$7.79

Product reviews (7)

Ships immediately

5+ in stock

0304024

SCREW,CONNECTOR

$9.95

You save 13%. ~~$11.49~~

Product reviews (93)

Ships immediately

5+ in stock

0301551 ← 0301551

LOCKWASHER

$6.95

You save 11%. ~~$7.79~~

Product reviews (25)

Ships immediately

5+ in stock

0303794 ← 0303794

CONNECTOR,SHIFT ROD

$23.95

You save $1.54. ~~$25.49~~

Product reviews (93)

Ships immediately

5+ in stock

0322077 ← 0322077

WATER TUBE,STANDARD

$32.00

No longer available

Search Nationwide Inventory

0302497 ← 0302497

GROMMET,WATER TUBE

$4.95

~~$5.00~~

Product reviews (106)

Ships immediately

5+ in stock

0328702

WASHER,SCREW,IMPELLER HOUSING

$3.99

You save 10%. ~~$4.44~~

Product reviews (14)

Ships immediately

5+ in stock

0324960 ← 0324960

SCREW,IMPELLER HOUSING

$1.99

~~$2.00~~

Product reviews (1)

Ships immediately

4 in stock

0330560

HOUSING,IMPELLER

$17.99

Product reviews (1)

Ships immediately

1 in stock

0321786 ← 0321786

SEAL,IMPELLER HOUSING

$12.95

You save $1.04. ~~$13.99~~

Product reviews (26)

Ships immediately

5+ in stock

0341650

DRIVERSHAFT,STANDARD

$329.95

You save $16.54. ~~$346.49~~

Product reviews (2)

Cross Ship

0300611 ← 0300611

PIN,IMPELLER

$1.95

You save 13%. ~~$2.23~~

Product reviews (28)

Ships immediately

5+ in stock

0765642

PLATE,IMPELLER HOUSING

$11.87

You save 5%. ~~$12.49~~

Product reviews (1)

Cross Ship

0389638

0432811

GEARCASE ASSEMBLY,LESS DRIVE SHAFT AND PUMP

Notes:Not Shown

Cross Ship

Possible delays

0303587

SCREW,BY-PASSEMBLY COVER

$3.95

You save 6%. ~~$4.18~~

Product reviews (9)

Ships immediately

5+ in stock

0302505 ← 0302505

COVER,WATER BY-PASSEMBLY

$22.00

Product reviews (3)

No longer available

Search Nationwide Inventory

0306376 ← 0306376

COTTER PIN,SHIFT ROD PIN

$0.99

You save 25%. ~~$1.32~~

Product reviews (7)

Ships immediately

5+ in stock

0302504 ← 0302504

PIN,LEVER TO SHIFT ROD

$8.99

You save 5%. ~~$9.46~~

Product reviews (2)

Ships immediately

1 in stock

0375755 ← 0375755

LEVER,SHIFTER

$62.53

Product reviews (1)

No longer available

Search Nationwide Inventory

0325014 ← 0325014

CRADLE

$63.99

You save $1.50. ~~$65.49~~

Product reviews (4)

Ships immediately

4 in stock

0303098 ← 0303098

SHIFT ROD,LOWER,STANDARD

$64.95

You save $5.04. ~~$69.99~~

Product reviews (2)

Cross Ship

0389045 ← 0389045

GEARCASE HEAD ASSEMBLY

$164.95

~~$165.00~~

Product reviews (1)

No longer available

Search Nationwide Inventory

0321786 ← 0321786

SEAL,PROPELLER SHAFT,INNER

$12.95

You save $1.04. ~~$13.99~~

Product reviews (26)

Ships immediately

5+ in stock

0321787 ← 0321787

SEAL,PROPELLER SHAFT,OUTER

$17.95

You save $1.54. ~~$19.49~~

Product reviews (16)

Ships immediately

5+ in stock

0316504 ← 0316504

GEAR,REVERSE

$127.99

You save $32.00. ~~$159.99~~

Ships immediately

1 in stock

0303997 ← 0303997

BUSHING,REVERSE GEAR

$38.94

You save $2.05. ~~$40.99~~

Cross Ship

0301884 ← 0301884

WASHER,THRUST

$43.69

You save $2.30. ~~$45.99~~

Product reviews (1)

Cross Ship

0325013 ← 0325013

SHIFTER,CLUTCH DOG

$174.95

You save $9.54. ~~$184.49~~

Cross Ship

0344231

SHAFT,PROPELLER

$274.98

~~$275.98~~

Cross Ship

Possible delays

0389469 ← 0389469

GEAR AND BUSHING,FORWARD

$442.99

You save $110.50. ~~$553.49~~

Ships immediately

3 in stock

0389472 ← 0389472

BEARING,FRONT

$47.99

Product reviews (1)

No longer available

Search Nationwide Inventory

0324457 ← 0324457

PINION,DRIVE SHAFT

$198.39

No longer available

Search Nationwide Inventory

0432810

GEARCASE AND BEARING ASSEMBLY

$1,190.00

You save $88.99. ~~$1,278.99~~

Cross Ship

0304764 ← 0304764

GASKET,BUSHING

$3.77

Product reviews (24)

Ships immediately

5+ in stock

0376856 ← 0376856

PINION BEARING ASSEMBLY

$17.99

Product reviews (14)

Ships immediately

5+ in stock

0321786 ← 0321786

SEAL,DRIVE SHAFT

$12.95

You save $1.04. ~~$13.99~~

Product reviews (26)

Ships immediately

5+ in stock

0304765 ← 0304765

BUSHING,SHIFT ROD

$18.95

You save $1.04. ~~$19.99~~

Product reviews (35)

Ships immediately

5+ in stock

0301877 ← 0301877

O-RING,SHIFT ROD

$3.95

You save 13%. ~~$4.56~~

Product reviews (87)

Ships immediately

5+ in stock

0300314 ← 0300314

PLUG,INTAKE SCREEN

$17.09

You save 5%. ~~$17.99~~

Product reviews (2)

Cross Ship

0302757 ← 0302757

SCREEN,WATER INTAKE

$9.50

Product reviews (3)

No longer available

Search Nationwide Inventory

0307551 ← 0307551

PLUG AND WASHER

$6.95

You save 5%. ~~$7.34~~

Product reviews (134) Questions answered (2)

Ships immediately

5+ in stock

0311598 ← 0311598

WASHER

$0.95

You save 40%. ~~$1.58~~

Product reviews (366) Questions answered (10)

Ships immediately

5+ in stock

0308376 ← 0308376

PIVOT PIN ASSEMBLY

$14.95

You save $1.04. ~~$15.99~~

Product reviews (16)

Ships immediately

5+ in stock

0307853 ← 0307853

SEAL,PIN

$2.99

You save 13%. ~~$3.44~~

Product reviews (35)

Ships immediately

5+ in stock

0330562

SCREW,GEARCASE

$4.99

You save 6%. ~~$5.29~~

Product reviews (10)

Ships immediately

5+ in stock

0300611 ← 0300611

DOWEL,BEARING

$1.95

You save 13%. ~~$2.23~~

Product reviews (28)

Ships immediately

5+ in stock

0386473 ← 0386473

BEARING,DRIVE SHAFT

$19.99

Product reviews (14)

Ships immediately

5+ in stock

0317728 ← 0317728

MAGNET,GEARCASE

$16.50

Product reviews (1)

Cross Ship

Possible delays

← 0

SEAL,GEARCASE

Notes:CUT FROM 309044-50FT ROLL,CUTTING LENGTH 12-7/8"

Cross Ship

0388027 ← 0388027

THRUST BEARING ASSEMBLY,PINION

$22.99

~~$23.49~~

Product reviews (3)

Ships immediately

1 in stock

0322688 ← 0322688

THRUST WASHER,PINION LOWER 5 INCH LONGER PARTS

$29.95

You save $2.54. ~~$32.49~~

Product reviews (1)

Cross Ship

0319667 ← 0319667

THRUST WASHER,PINION UPPER

$49.95

You save $4.04. ~~$53.99~~

Product reviews (1)

Cross Ship

0324459 ← 0324459

THRUST WASHER,FOREWARD GEAR

$22.32

You save $1.17. ~~$23.49~~

Product reviews (2)

Cross Ship

0389470 ← 0389470

THRUST BEARING

$99.99

Cross Ship

Possible delays

0325053 ← 0325053

SPRING,DETENT

$9.95

You save $1.04. ~~$10.99~~

Cross Ship

0316506 ← 0316506

BALL,DETENT

$5.95

You save 5%. ~~$6.23~~

Product reviews (23)

Ships immediately

5+ in stock

0321921 ← 0321921

O-RING,GEARCASE HEAD

$2.99

You save 13%. ~~$3.44~~

Product reviews (12)

Ships immediately

5+ in stock

0329390

GASKET,IMPELLER HOUSING

$5.67

Product reviews (7)

Ships immediately

5+ in stock

0360633

CUP,IMPELLER HOUSING

$19.99

Product reviews (3)

Ships immediately

4 in stock

0324449 ← 0324449

GASKET,IMPELLER HOUSING PLATE

$3.99

You save 13%. ~~$4.56~~

Product reviews (4)

Ships immediately

5+ in stock

0330060

STUD,HOUSING TO GEARCASE

$34.99

You save $1.50. ~~$36.49~~

Ships immediately

2 in stock

0552938 ← 0552938

NUT,GEARCASE TO HOUSING

$7.79

Product reviews (1)

Ships immediately

5+ in stock

0763982

IMPELLER,WATER PUMP

$33.99

~~$34.49~~

Product reviews (12)

Ships immediately

5+ in stock

Rod, Shift, Lower, Long 5 Inch Longer Pa

0303257 ← 0303257

SHIFT ROD,LOWER,LONG

$52.00

Cross Ship

Possible delays

0389695

0392442

EXTENSION KIT ASSEMBLY

Notes:Not Shown

$419.01

No longer available

Search Nationwide Inventory

0324455

0324455 ← 0324455

SPACER,IMPELLER HOUSING

Notes:Not Shown

$14.99

Cross Ship

Possible delays

0301967

0301967 ← 0301967

O-RING,SPACER

Notes:Not Shown

$5.67

Product reviews (23)

Ships immediately

5+ in stock

0304081 ← 0304081

CONNECTOR,SHIFT ROD

$94.99

You save $5.00. ~~$99.99~~

Product reviews (1)

Cross Ship

0322078 ← 0322078

WATER TUBE,LONG

$24.97

No longer available

Search Nationwide Inventory

0341649

DRIVESHAFT,LONG

$344.95

You save $19.04. ~~$363.99~~

Cross Ship

0330558

STUD,HOUSING TO GEARCASE

$33.96

Questions answered (2)

No longer available

Search Nationwide Inventory

0308743 ← 0308743

SCREW EXTENSION

$7.79

Product reviews (7)

Ships immediately

5+ in stock

0327563

EXTENSION,GEARCASE

$149.99

You save $10.00. ~~$159.99~~

Product reviews (2)

Cross Ship

0394392

CHROME PUMP KIT

$59.95

~~$60.00~~

Cross Ship

Possible delays

0389980

WATER PUMP REPAIR KIT

$68.79

Product reviews (11)

No longer available

Search Nationwide Inventory

0391019 ← 0391019

HEAVY DUTY GEAR AND CLUTCH DOG KIT

$199.95

~~$200.00~~

Cross Ship

Possible delays

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
