Select Your Engine:

1994 OMC Stern Drive 7.4 - 744DJPMDA

CRANKCASE section

Change Section

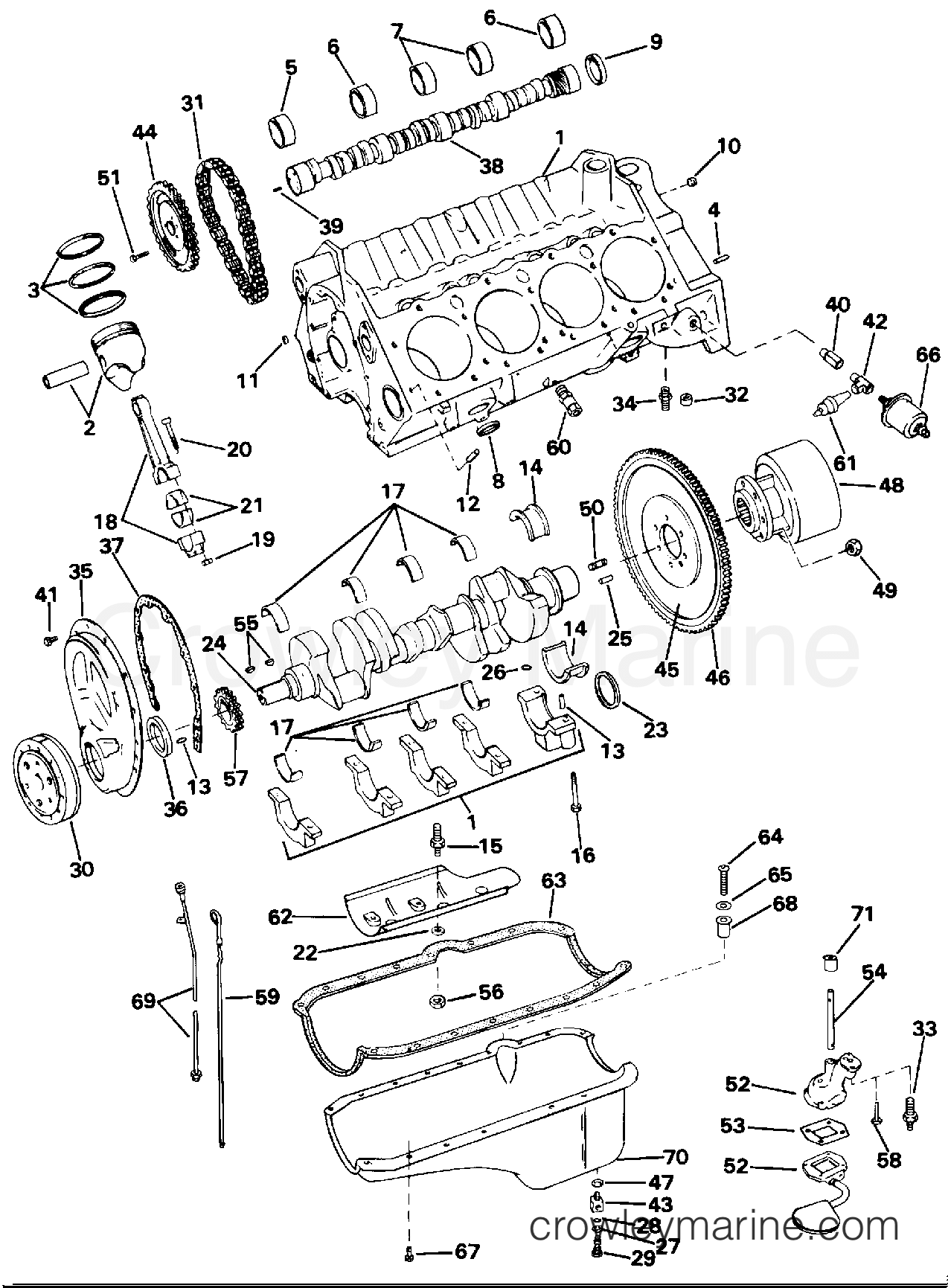

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1994 OMC Stern Drive 7.4 - 744DJPMDA - CRANKCASE 1994 OMC Stern Drive 7.4 - 744DJPMDA - CRANKCASE
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2
3853517 - Piston & Pin
3853517
3853517 3853517

PISTON & PIN, STANDARD

PISTON & PIN, STANDARD
Notes: "A" Suffix Models Only
$74.95
You save $4.05. $79.00
Leaves in 6-8 days
Required: 8
2
3853518 - Piston & Pin
3853518
3853518 3853518

PISTON & PIN, 0.001 OVERSIZE

PISTON & PIN, 0.001 OVERSIZE
Notes: "A" Suffix Models Only
$54.95
You save $4.05. $59.00
Leaves in 6-8 days
Required: 0
2
3853519 - Piston & Pin
3853519
3853519 3853519

PISTON & PIN, 0.030 OVERSIZE

PISTON & PIN, 0.030 OVERSIZE
Notes: "A" Suffix Models Only
$54.95
You save $4.05. $59.00
Leaves in 6-8 days
Required: 0
3
3854119 - Piston Ring Set
3854119
3854119 3854119

PISTON RING SET, 0.030 OVERSIZE

PISTON RING SET, 0.030 OVERSIZE
Notes: "A" Suffix Models Only
$11.40
You save 5%. $12.00
Leaves in 6-8 days
Required: 0
3
3855040 - Ring Set
3855040
3855040 3855040

PISTON RING SET, 0.030 OVERSIZE

PISTON RING SET, 0.030 OVERSIZE
Notes: "M" Suffix Models Only
$18.05
You save 5%. $19.00
Leaves in 6-8 days
Required: 0
19
3853148 - Connecting rod Nut
3853148
3853148 3853148

NUT, ROD BOLT

NUT, ROD BOLT
$1.90
You save 5%. $2.00
Leaves in 6-8 days
Required: 16
26
3853538 - O-Ring
3853538
3853538 3853538

O-RING, REAR MAIN CAP

O-RING, REAR MAIN CAP
$1.19
You save 5%. $1.25
Leaves in 6-8 days
Required: 1
28
3853674 - O-Ring
3853674
3853674 3853674

O-RING, RETAINER

O-RING, RETAINER
$2.27
You save 5%. $2.39
Leaves in 3-5 days
Required: 1
41
3852441 - Timing cover Bolt
3852441
3852441 3852441

SCREW, TIMING COVER

SCREW, TIMING COVER
$1.43
You save 5%. $1.50
Leaves in 6-8 days
Required: 10
55
3853527 - Woodruff Key
3853527
3853527 3853527

KEY, WOODRUFF

KEY, WOODRUFF
$1.19
You save 5%. $1.25
Leaves in 6-8 days
Required: 2
58
3853359 - Oil Pump & Screen Stud
3853359
3853359 3853359

BOLT, PUMP TO BLOCK

BOLT, PUMP TO BLOCK
$1.90
You save 5%. $2.00
Leaves in 6-8 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
