Select Your Engine:

1994 OMC Stern Drive 5.8 - 58FBDPMDA

UPPER GEAR HOUSING section

Change Section

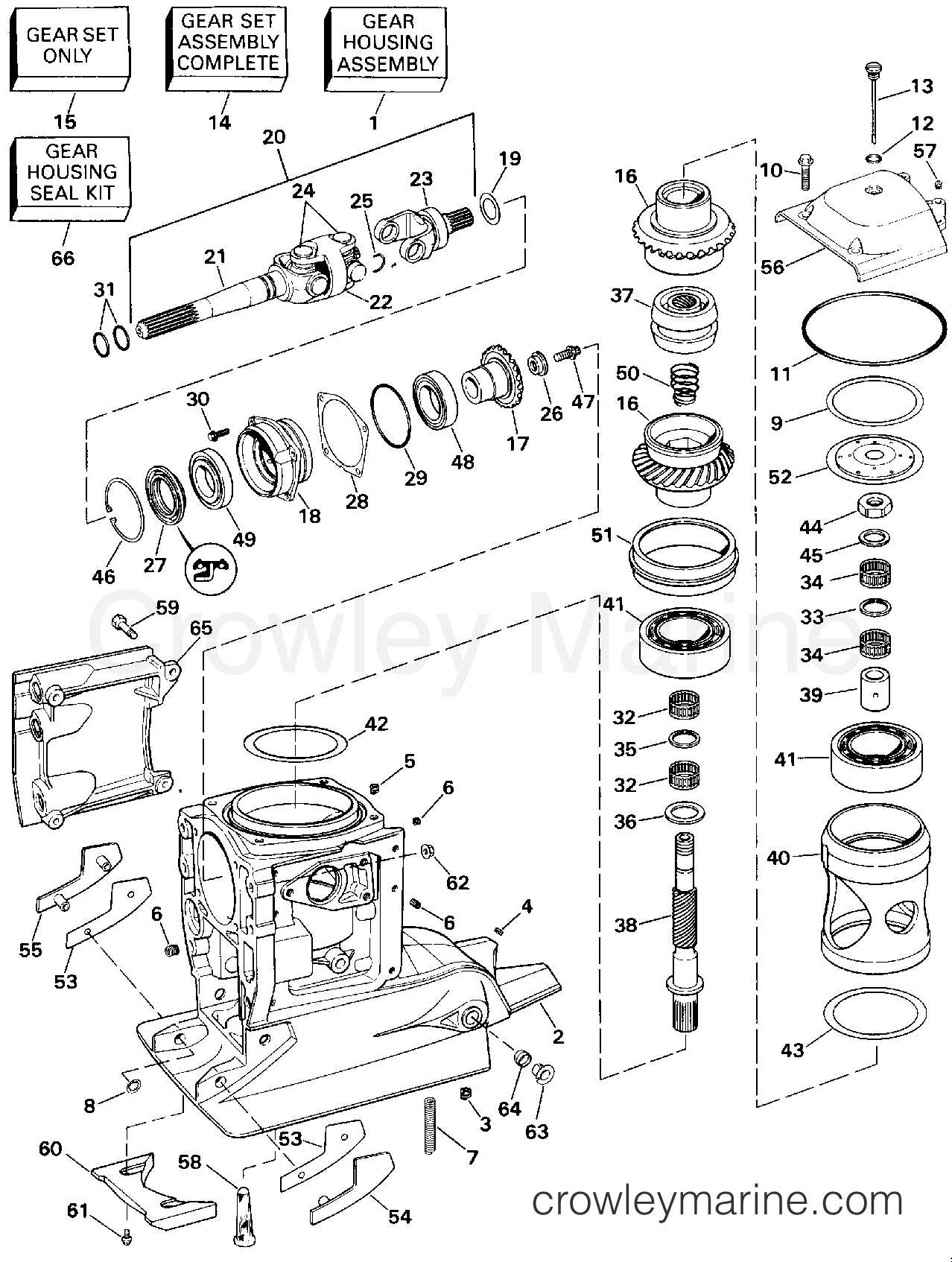

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1994 OMC Stern Drive 5.8 - 58FBDPMDA - UPPER GEAR HOUSING 1994 OMC Stern Drive 5.8 - 58FBDPMDA - UPPER GEAR HOUSING
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

16
 -
0

DRIVE GEAR

DRIVE GEAR
Notes: Service with Next Higher Assembly (Reference #15, #14 or #1)
Not available for purchase
Required: 2
17
 -
0

PINION GEAR

PINION GEAR
Notes: Service with Next Higher Assembly (Reference #15, #14 or #1)
Not available for purchase
Required: 1
20
3853937 - U-Joint Assembly
3853937
3853937 3853937

U-JOINT ASSEMBLY

U-JOINT ASSEMBLY
$174.95
You save $9.82. $184.77
Leaves in 3-5 days
Required: 1
24
3850812 - Universal Joint Assembly
3850812
3850812 3850812

U-JOINT

U-JOINT
$59.95
You save $3.54. $63.49
Leaves in 3-5 days
Required: 2
25
3850757 - Snap Ring
3850757
3850757 3850757

RETAINER, U-JOINT

RETAINER, U-JOINT
$1.99
You save 17%. $2.39
Ships Immediately
4 Items in stock
Required: 4
26
3852897 - Retainer
3852897
3852897 3852897

RETAINER, PINION GEAR

RETAINER, PINION GEAR
$7.60
You save 5%. $8.00
Leaves in 6-8 days
Required: 1
29
3852531 - O-RING
3852531
3852531 3852531

O-RING, BEARING CARRIER

O-RING, BEARING CARRIER
$1.99
You save 20%. $2.50
Ships Immediately
5+ Items in stock
Required: 1
30
3852454 - SCREW
3852454
3852454 3852454

SCREW, RETAINER

SCREW, RETAINER
$3.99
You save 20%. $4.99
Ships Immediately
1 Items in stock
Required: 4
37
3853450 - Cone Clutch
3853450
3853450 3853450

CLUTCH CONE

CLUTCH CONE
$434.95
You save $24.54. $459.49
Leaves in 3-5 days
Required: 1
41
3853938 - Ball Bearing Assembly
3853938
3853938 3853938

BEARING, DRIVE GEAR

BEARING, DRIVE GEAR
$164.95
You save $10.04. $174.99
Leaves in 3-5 days
Required: 2
52
3852899 - Deflector
3852899
3852899 3852899

DEFLECTOR, OIL

DEFLECTOR, OIL
$2.84
You save 5%. $2.99
Leaves in 6-8 days
Required: 1
54
3852919 - Thrust Plate, port
3852919
3852919 3852919

PLATE, THRUST, PORT

PLATE, THRUST, PORT
$11.40
You save 5%. $12.00
Leaves in 6-8 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
