Select Your Engine:

1994 OMC Stern Drive 5.8 - 58FAGPMDM

UPPER GEAR HOUSING section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

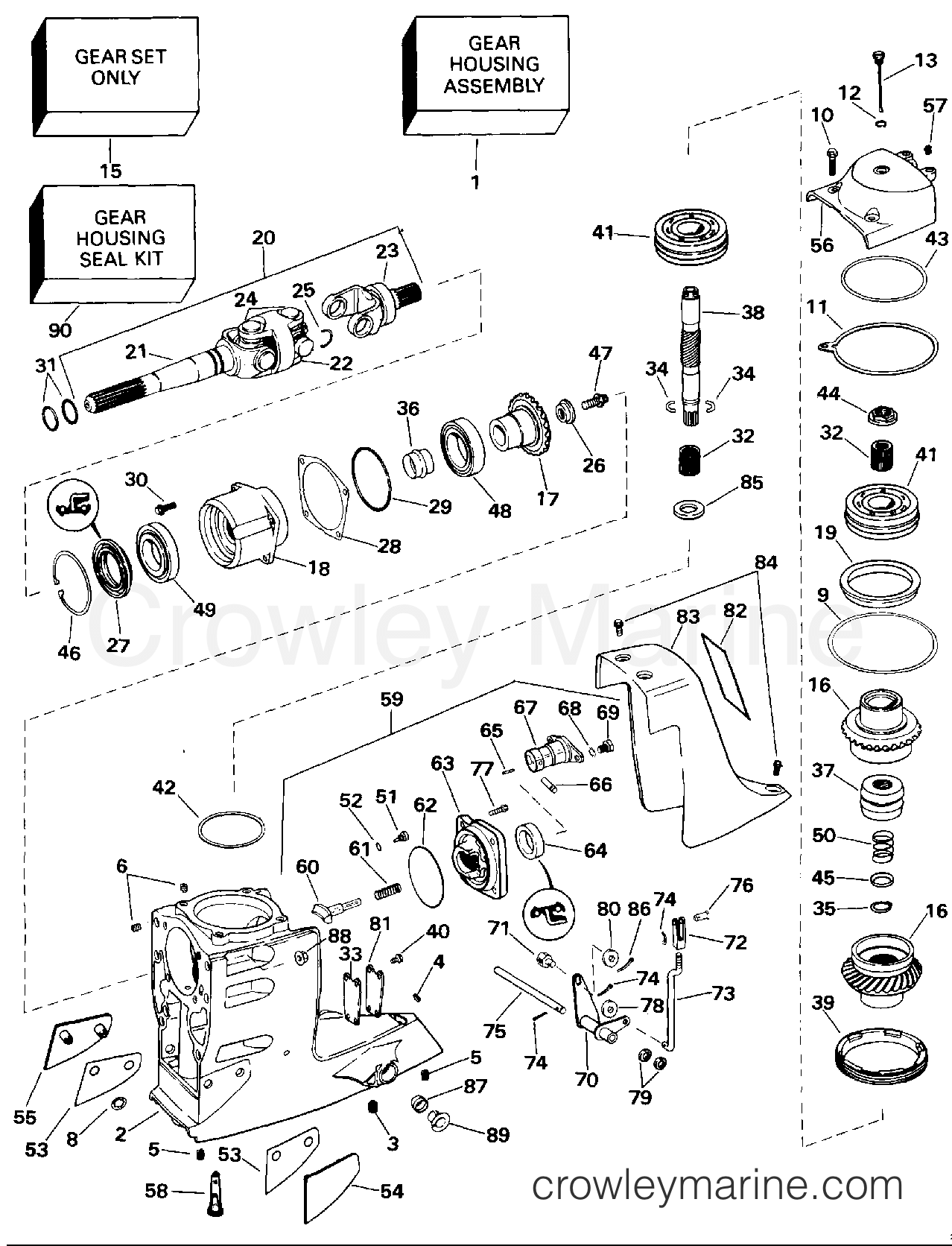

1994 OMC Stern Drive 5.8 - 58FAGPMDM - UPPER GEAR HOUSING 1994 OMC Stern Drive 5.8 - 58FAGPMDM - UPPER GEAR HOUSING
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2
3854389 - Gear Housing & Insert Assembly
3854389
3854389 3854389

GEAR HOUSING & INSERTS

GEAR HOUSING & INSERTS
$154.95
You save $10.05. $165.00
Leaves in 6-8 days
Required: 1
16
 -
0

DRIVE GEAR

DRIVE GEAR
Notes: Service with Next Higher Assembly (Reference #15, #1)
Not available for purchase
Required: 2
17
 -
0

PINION GEAR

PINION GEAR
Notes: Service with Next Higher Assembly (Reference #15, #1)
Not available for purchase
Required: 1
24
3850812 - Universal Joint Assembly
3850812
3850812 3850812

U-JOINT

U-JOINT
$59.95
You save $3.54. $63.49
Leaves in 3-5 days
Required: 2
25
3850757 - Snap Ring
3850757
3850757 3850757

RETAINER, U-JOINT

RETAINER, U-JOINT
$1.99
You save 17%. $2.39
Ships Immediately
4 Items in stock
Required: 4
30
3852454 - SCREW
3852454
3852454 3852454

SCREW, BEARING CARRIER

SCREW, BEARING CARRIER
$3.99
You save 20%. $4.99
Ships Immediately
1 Items in stock
Required: 4
65
0951924 - Roll Pin
0951924
0951924 0951924

PIN, TENSION

PIN, TENSION
$1.99
You save 33%. $2.99
Ships Immediately
1 Items in stock
Required: 1
68
0897871 - Shim
0897871
0897871 0897871

SHIM, SHIFT SHOE STOP

SHIM, SHIFT SHOE STOP
$3.41
You save 5%. $3.59
Leaves in 6-8 days
Required: 0
72
3852328 - Shift Link Fork
3852328
3852328 3852328

FORK, SHIFT LINK

FORK, SHIFT LINK
$5.95
$5.99
Leaves in 6-8 days
Required: 1
85
3852294 - Spacer Ring
3852294
3852294 3852294

RING, SPACER

RING, SPACER
$19.95
You save $1.04. $20.99
Leaves in 6-8 days
Required: 1
90
3850594 - Gear Housing Kit Assembly
3850594
3850594 3850594

GEAR HOUSING SEAL KIT

GEAR HOUSING SEAL KIT
$59.95
You save $2.54. $62.49
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
