Select Your Engine:

1994 OMC Stern Drive 5.8 - 58FAGPMDM

CRANKCASE - 5.8 LITRE section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

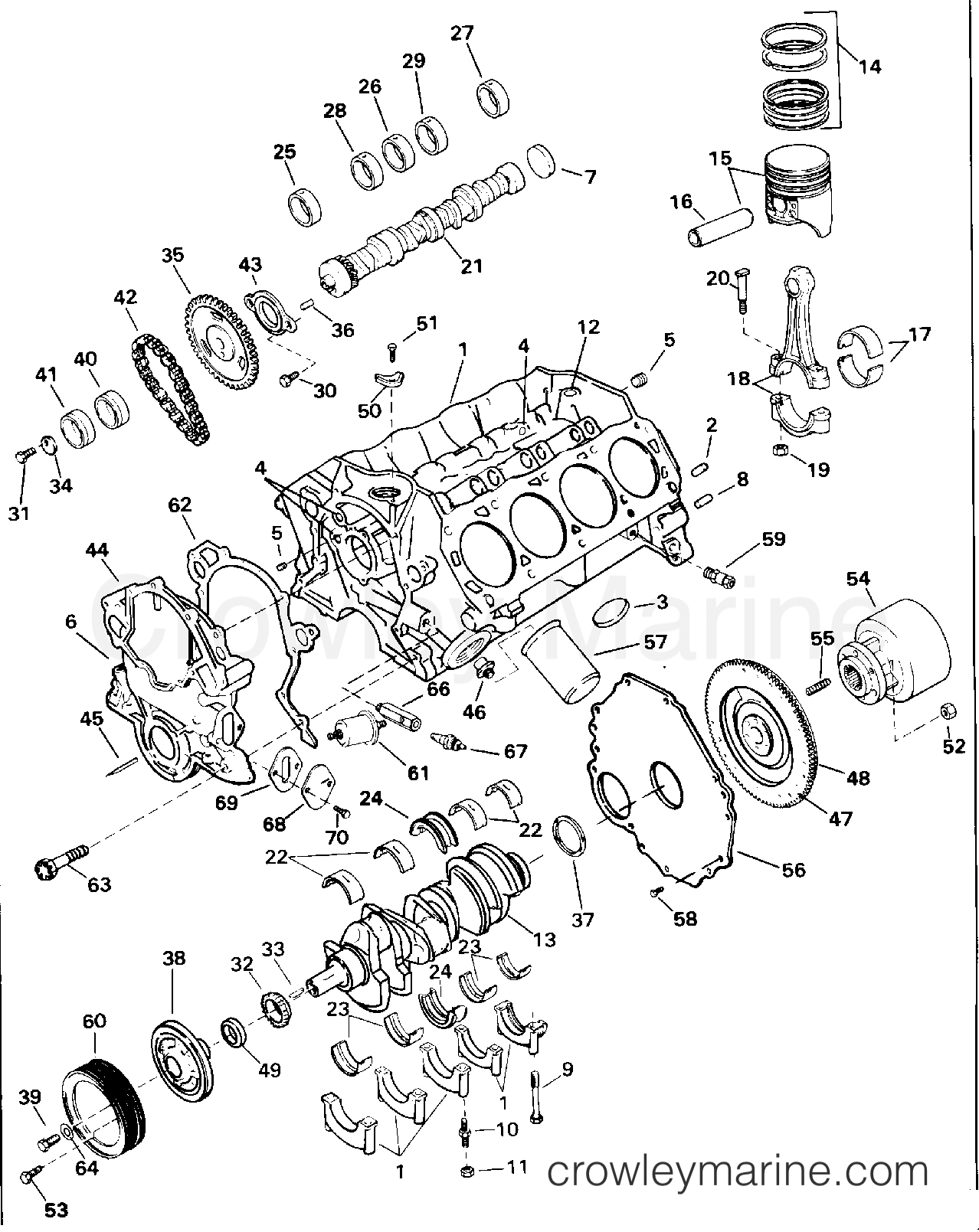

1994 OMC Stern Drive 5.8 - 58FAGPMDM - CRANKCASE - 5.8 LITRE 1994 OMC Stern Drive 5.8 - 58FAGPMDM - CRANKCASE - 5.8 LITRE
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
3854235 - PARTIAL ENGINE
3854235
3854235 3854235

PARTIAL ENGINE

PARTIAL ENGINE
Notes: Includes Cylinder Block with All Internal Parts of the Engine, but Does not Include: Cylinder Heads, Oil Pan or Cylinder Front Cover.
$4,790.00
You save $6.00. $4,796.00
No Longer Available
Search Nationwide Inventory
Required: 1
2
3853007 - Sleeves
3853007
3853007 3853007

DOWEL, CYLINDER HEAD

DOWEL, CYLINDER HEAD
$1.43
You save 5%. $1.50
Leaves in 6-8 days
Required: 4
4
3853008 - Plug
3853008
3853008 3853008

PLUG, OIL PASSAGE

PLUG, OIL PASSAGE
$1.19
You save 5%. $1.25
Leaves in 6-8 days
Required: 2
6
3853008 - Plug
3853008
3853008 3853008

PLUG, OIL LEVEL HOLE

PLUG, OIL LEVEL HOLE
$1.19
You save 5%. $1.25
Leaves in 6-8 days
Required: 2
9
3853101 - Main Cap Bolt
3853101
3853101 3853101

BOLT, MAIN CAP

BOLT, MAIN CAP
$1.19
You save 5%. $1.25
Leaves in 6-8 days
Required: 9
11
3853026 - Main cap Nut
3853026
3853026 3853026

NUT, MAIN CAP

NUT, MAIN CAP
$1.19
You save 5%. $1.25
Leaves in 6-8 days
Required: 1
12
3853010 - Plug
3853010
3853010 3853010

PLUG, OIL GALLERY

PLUG, OIL GALLERY
$1.19
You save 5%. $1.25
Leaves in 6-8 days
Required: 1
14
3853269 - Ring Set
3853269
3853269 3853269

RING SET, 0.020 IN. OVERSIZE

RING SET, 0.020 IN. OVERSIZE
Notes: Contains Rings for 2 Pistons
$18.05
You save 5%. $19.00
Leaves in 6-8 days
Required: 0
16
3852773 - Piston Pin
3852773
3852773 3852773

PIN, PISTON, STANDARD

PIN, PISTON, STANDARD
$1.99
$2.00
Ships Immediately
1 Items in stock
Required: 8
19
3852675 - Connecting rod Nut
3852675
3852675 3852675

NUT, CONNECTING ROD

NUT, CONNECTING ROD
$1.19
You save 5%. $1.25
Leaves in 6-8 days
Required: 16
30
3852788 - Oil pump to block Bolt
3852788
3852788 3852788

BOLT, THRUST PLATE

BOLT, THRUST PLATE
$1.19
You save 5%. $1.25
Leaves in 6-8 days
Required: 2
31
3852791 - Eccentric Bolt
3852791
3852791 3852791

BOLT, ECCENTRIC

BOLT, ECCENTRIC
$1.19
You save 5%. $1.25
Leaves in 6-8 days
Required: 1
33
3852796 - Key
3852796
3852796 3852796

KEY, SPROCKET

KEY, SPROCKET
$1.19
You save 5%. $1.25
Leaves in 6-8 days
Required: 1
43
3852787 - Plate
3852787
3852787 3852787

PLATE, STANDARD

PLATE, STANDARD
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 1
48
3852804 - RING GEAR, Flywheel
3852804
3852804 3852804

RING GEAR, FLYWHEEL

RING GEAR, FLYWHEEL
$123.49
You save $6.50. $129.99
Leaves in 6-8 days
Required: 1
51
3853077 - Screw
3853077
3853077 3853077

SCREW & WASHER, CLAMP

SCREW & WASHER, CLAMP
$1.19
You save 5%. $1.25
Leaves in 6-8 days
Required: 1
56
3853003 - Flywheel Cover
3853003
3853003 3853003

COVER, FLYWHEEL

COVER, FLYWHEEL
$37.99
You save $2.00. $39.99
Leaves in 6-8 days
Required: 1
58
3852421 - Screw
3852421
3852421 3852421

SCREW, COVER TO HOUSING

SCREW, COVER TO HOUSING
$3.99
You save 13%. $4.59
Ships Immediately
5+ Items in stock
Required: 5
64
3853075 - Washer
3853075
3853075 3853075

WASHER, DAMPER

WASHER, DAMPER
$1.19
You save 5%. $1.25
Leaves in 6-8 days
Required: 1
69
3852600 - Gasket
3852600
3852600 3852600

GASKET, FUEL PUMP OPENING

GASKET, FUEL PUMP OPENING
$5.99
You save 22%. $7.69
Ships Immediately
4 Items in stock
Required: 1
70
3853266 - Screw
3853266
3853266 3853266

SCREW, COVER

SCREW, COVER
$3.51
You save 5%. $3.69
Leaves in 6-8 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
