1969 Johnson Outboards 55 - 55ES69A

CARBURETOR GROUP section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

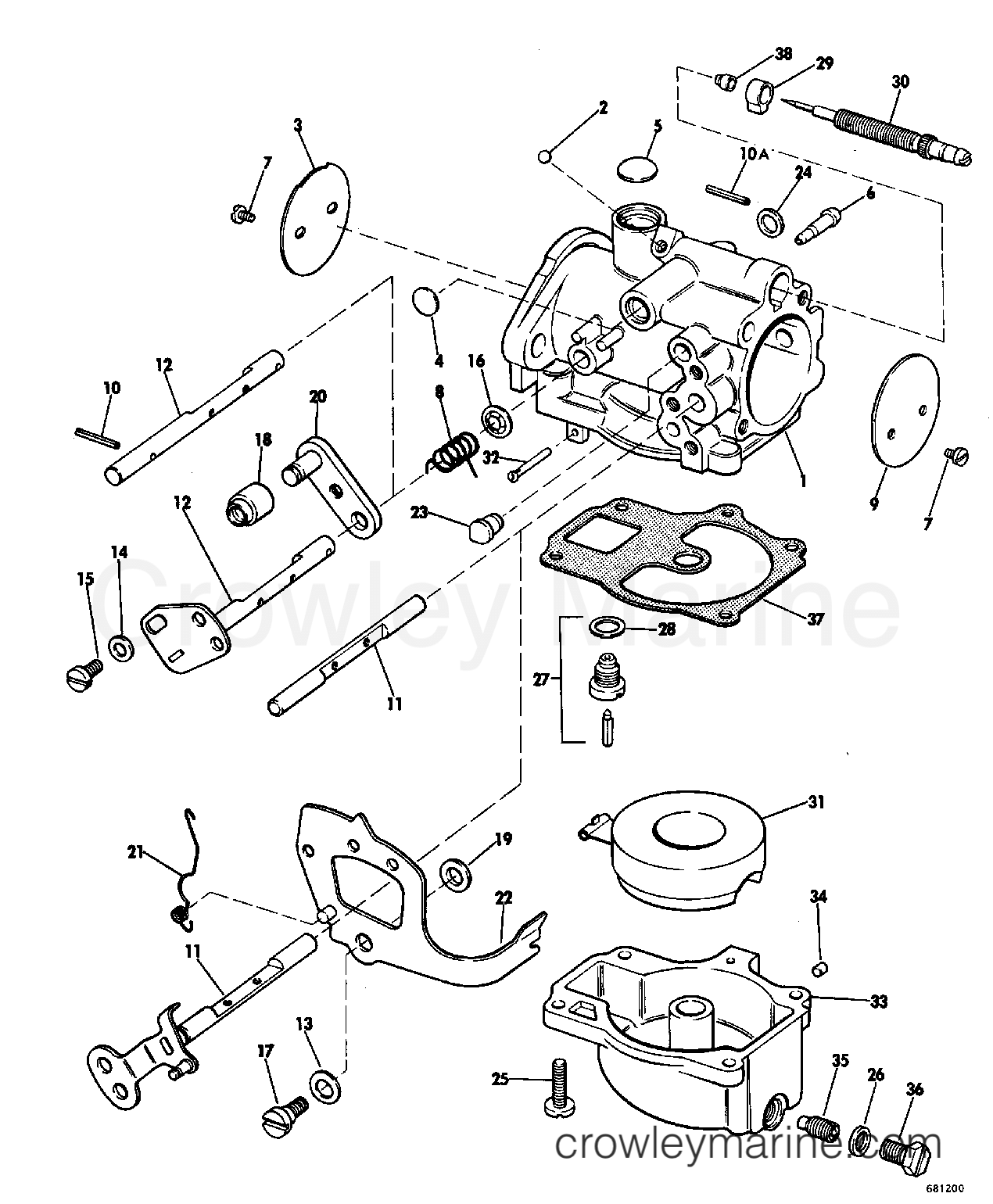

1969 Johnson Outboards 55 - 55ES69A CARBURETOR GROUP section
Use two fingers to zoom
and move the diagram
1969 Johnson Outboards 55 - 55ES69A - CARBURETOR GROUP section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
0383628 - Carburetor Body Assembly
0383628
0383628 ← 0383628

CARBURETOR BODY ASSEMBLY

CARBURETOR BODY ASSEMBLY
Notes: USED ON UPPER AND LOWER CARBURETOR ONLY
$14.95
You save $1.05. $16.00
Leaves in 6-8 days
Required: 1
1
0383627 - Carburetor Body Assembly
0383627
0383627 ← 0383627

CARBURETOR BODY ASSEMBLY

CARBURETOR BODY ASSEMBLY
Notes: USED ON MIDDLE CARBURETOR ONLY
$89.95
You save $5.05. $95.00
Leaves in 6-8 days
Required: 1
3
0313365 - Throttle Valve
0313365
0313365 ← 0313365

THROTTLE VALVE

THROTTLE VALVE
$6.65
You save 5%. $7.00
Leaves in 6-8 days
Required: 1
7
0312852 - Screw
0312852
0312852 ← 0312852

SCREW, VALVES

SCREW, VALVES
$5.99
You save 30%. $8.50
Ships Immediately
1 Items in stock
Required: 4
8
0313357 - Spring
0313357
0313357 ← 0313357

SPRING, THROTTLE

SPRING, THROTTLE
$14.95
$15.00
Leaves in 6-8 days
Required: 1
10A
0314575 - Roll Pin
0314575
0314575 ← 0314575

ROLL PIN

ROLL PIN
Notes: USED ON UPPER AND LOWER CARBURETOR ONLY
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
11
0321798 - Choke Shaft
0321798 ← 0313358
0321798

CHOKE SHAFT

CHOKE SHAFT
Notes: USED ON UPPER AND LOWER CARBURETOR ONLY
$18.05
You save 5%. $19.00
Leaves in 6-8 days
Required: 1
13
0315074 - Upper Carburetor Bow Washer
0315074
0315074 ← 0315074

BOW WASHER

BOW WASHER
Notes: USED ON MIDDLE CARBURETOR ONLY
$6.65
You save 5%. $7.00
Leaves in 6-8 days
Required: 1
16
0313973 - Applique Fastener (side and rear)
0313973
0313973 ← 0313973

RETAINER

RETAINER
$5.75
$5.75
Leaves in 3-5 days
Required: 1
17
0307382 - Shoulder Screw
0307382
0307382 ← 0307382

SHOULDER SCREW

SHOULDER SCREW
$8.55
You save 5%. $9.00
Leaves in 6-8 days
Required: 1
20
0382370 - Lower Carburetor Lever & Pin Assembly
0382370
0382370 ← 0382370

LEVER ARM & PIN ASSEMBLY

LEVER ARM & PIN ASSEMBLY
Notes: USED ON MIDDLE CARBURETOR ONLY
$13.99
You save $1.01. $15.00
Ships Immediately
3 Items in stock
Required: 1
23
0314301 - Detent Pin
0314301
0314301 ← 0314301

PIN, DETENT

PIN, DETENT
Notes: USED ON MIDDLE CARBURETOR ONLY
$1.43
You save 5%. $1.50
Leaves in 6-8 days
Required: 1
31
0382363 - Float & Arm Assembly
0382363
0382363 ← 0382363

FLOAT AND ARM ASSEMBLY

FLOAT AND ARM ASSEMBLY
Notes: ALSO AVAILABLE IN CARBURETOR REPAIR KIT 383317
$12.99
You save $1.20. $14.19
Ships Immediately
2 Items in stock
Required: 1
32
0302661 - Hinge Pin
0302661
0302661 ← 0302661

PIN, FLOAT HINGE

PIN, FLOAT HINGE
Notes: ALSO AVAILABLE IN CARBURETOR REPAIR KIT 383317
$8.99
You save 5%. $9.50
Ships Immediately
2 Items in stock
Required: 1
34
0309781 - Plug
0309781
0309781 ← 0309781

PLUG, FUEL PASSAGE

PLUG, FUEL PASSAGE
$6.65
You save 5%. $7.00
Leaves in 6-8 days
Required: 4
38
0314166 - Bearing Needle Valve
0314166
0314166 ← 0314166

BEARING, NEEDLE VALVE

BEARING, NEEDLE VALVE
Notes: ALSO AVAILABLE IN CARBURETOR REPAIR KIT 383317
$9.95
You save 13%. $11.50
Ships Immediately
5+ Items in stock
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
