Select Your Engine:

1969 OMC Stern Drive 80 - NUE-10S

STARTER MOTOR GROUP 80 HP section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

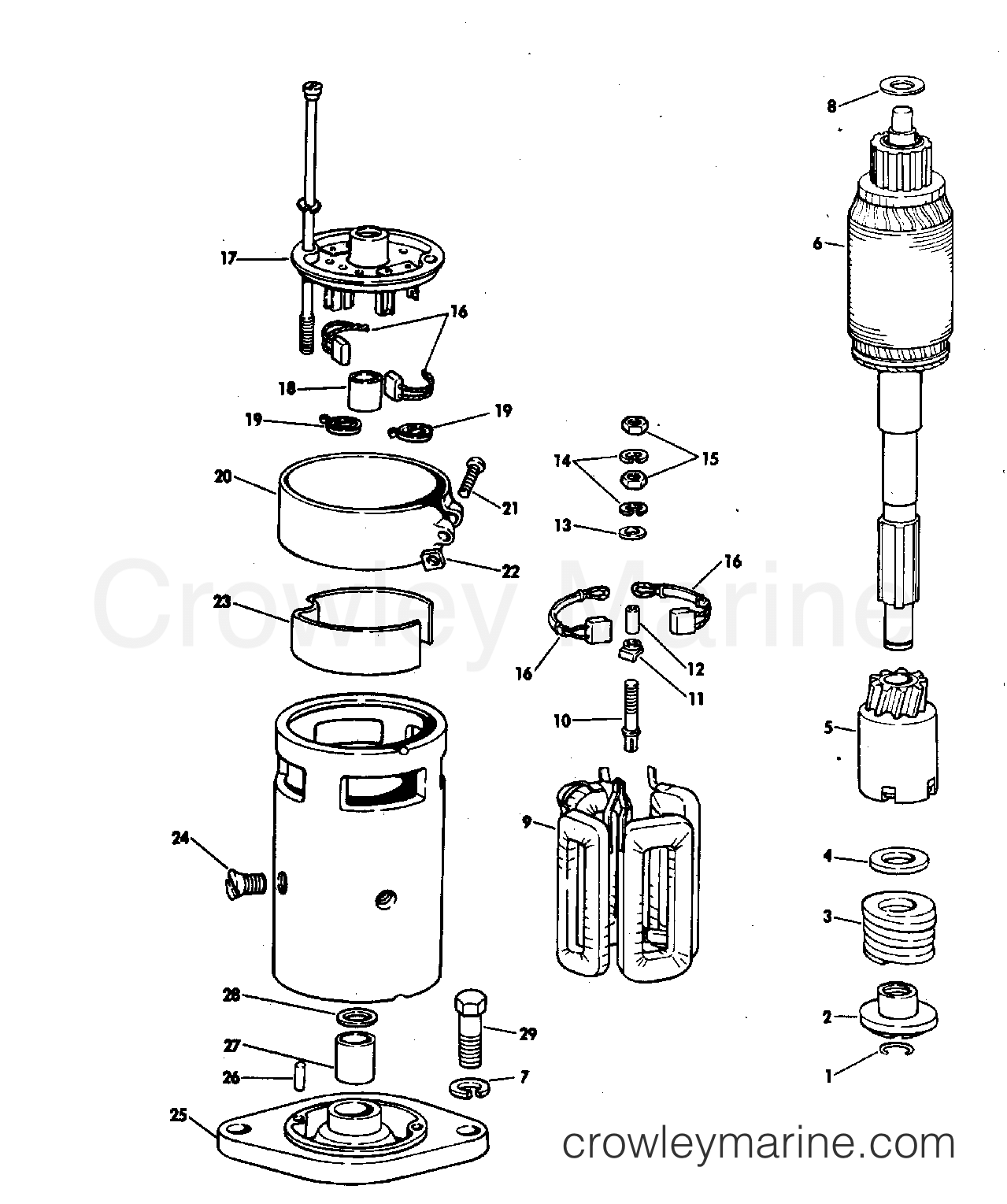

1969 OMC Stern Drive 80 - NUE-10S - STARTER MOTOR GROUP 80 HP 1969 OMC Stern Drive 80 - NUE-10S - STARTER MOTOR GROUP 80 HP
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2
0314983 - Drive Spring Cup
0314983
0314983 0314983

CUP,DRIVE SRPING.

CUP,DRIVE SRPING.
$1.43
You save 5%. $1.50
Leaves in 6-8 days
Required: 1
3
0314984 - Starter Drive Spring
0314984
0314984 0314984

SPRING,STARTER DRIVE

SPRING,STARTER DRIVE
$11.40
You save 5%. $12.00
Leaves in 6-8 days
Required: 1
5
0383518 - Pinion Assembly
0383518
0383518 0383518

PINION ASSEMBLY

PINION ASSEMBLY
$6.65
You save 5%. $7.00
Leaves in 6-8 days
Required: 1
7
0306405 - Washer
0306405
0306405 0306405

WASHER,MOUNTING BOLT

WASHER,MOUNTING BOLT
$4.99
You save 15%. $5.89
Ships Immediately
3 Items in stock
Required: 2
8
 -
105E-11036

THRUST WASHER,ARMATURE

THRUST WASHER,ARMATURE
Not available for purchase
Required: 1
9
 -
204E-11081

FIELD COIL ASSEMBLY

FIELD COIL ASSEMBLY
Not available for purchase
Required: 1
10
 -
105E-11102

TERMINAL

TERMINAL
Not available for purchase
Required: 1
11
 -
105E-11107-B

INSULATING BUSHING,TERMINAL

INSULATING BUSHING,TERMINAL
Not available for purchase
Required: 1
12
 -
E281-CQ-1

SPACER

SPACER
Not available for purchase
Required: 1
13
 -
118153-ES7/8

WASHER,FLAT

WASHER,FLAT
Not available for purchase
Required: 0
14
 -
34825-S7/8

LOCKWASHER

LOCKWASHER
Not available for purchase
Required: 0
15
 -
105E-11108

NUT,FIELD TERMINAL

NUT,FIELD TERMINAL
Not available for purchase
Required: 2
16
 -
105E-11057

BRUSH KIT

BRUSH KIT
Not available for purchase
Required: 1
17
 -
105E-11049

PLATE ASSEMBLY,BRUSH END

PLATE ASSEMBLY,BRUSH END
Not available for purchase
Required: 1
18
 -
105E-11052

BUSHING,PLATE

BUSHING,PLATE
Not available for purchase
Required: 1
19
 -
EOTA-11059-C

SPRING,BRUSH

SPRING,BRUSH
Not available for purchase
Required: 4
20
 -
EOTA-11125

BANK ASSEMBLY

BANK ASSEMBLY
Not available for purchase
Required: 1
21
 -
118676-ES

SCREW

SCREW
Not available for purchase
Required: 1
22
 -
117511-ES

NUT

NUT
Not available for purchase
Required: 1
23
 -
106E-11089

INSULATOR FIELD COIL

INSULATOR FIELD COIL
Not available for purchase
Required: 1
24
 -
118861-ES

SCREW,POLE SHOE

SCREW,POLE SHOE
Not available for purchase
Required: 4
25
 -
105E-11130-B

PLATE ASSEMBLY,DRIVE END

PLATE ASSEMBLY,DRIVE END
Not available for purchase
Required: 1
26
 -
7W-10088

DOWEL,PLATE

DOWEL,PLATE
Not available for purchase
Required: 2
27
 -
105E-11135

BUSHING,PLATE

BUSHING,PLATE
Not available for purchase
Required: 1
28
 -
116142-ES

THRUST WASHER

THRUST WASHER
Not available for purchase
Required: 1
29
0310896 - Screw
0310896
0310896 0310896

SCREW,STARTER MOUNTING

SCREW,STARTER MOUNTING
$.99
You save 21%. $1.25
Ships Immediately
5+ Items in stock
Required: 2

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
