1968 OMC Stern Drive 90 - DU-15S

TILT MOTOR GROUP PRESTOLITE MODEL ETK-4102 section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

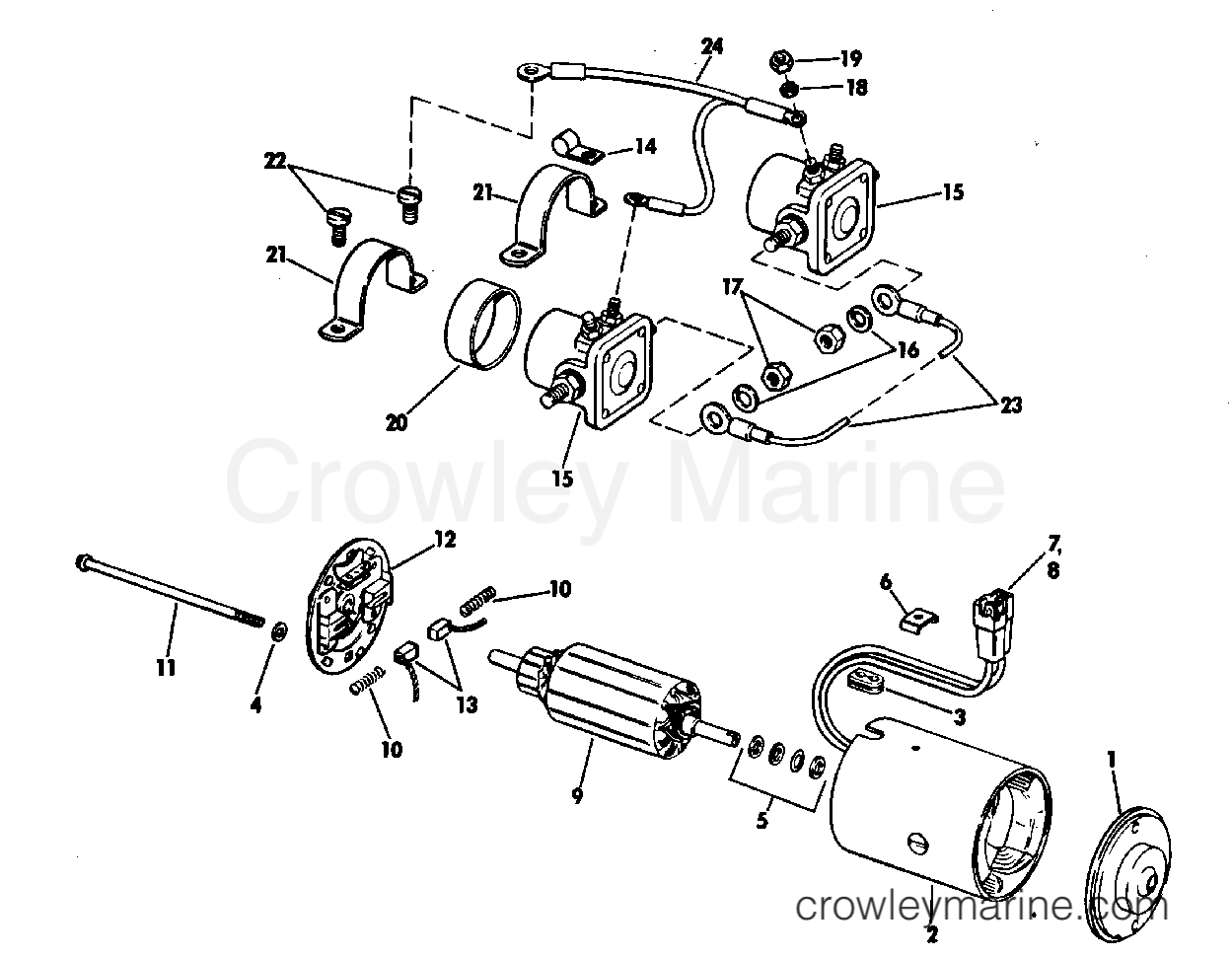

1968 OMC Stern Drive 90 - DU-15S TILT MOTOR GROUP PRESTOLITE MODEL ETK-4102 section
Use two fingers to zoom
and move the diagram
1968 OMC Stern Drive 90 - DU-15S - TILT MOTOR GROUP PRESTOLITE MODEL ETK-4102 section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

0382138
0382138 - Tilt Motor Assembly
0382138
0382138 ← 0382138

TILT MOTOR ASSEMBLY

TILT MOTOR ASSEMBLY
Notes: Not Shown
$267.42
You save $14.07. $281.49
Leaves in 3-5 days
Required: 1
6
0312014 - Clamp
0312014
0312014 ← 0312014

CLAMP

CLAMP
$.95
You save 5%. $1.00
Leaves in 6-8 days
Required: 1
7
0510472 - Terminal Housing
0510472
0510472 ← 0510472

TERMINAL HOUSING

TERMINAL HOUSING
$1.99
You save 34%. $3.00
Ships Immediately
2 Items in stock
Required: 1
8
0510470 - Terminal
0510470
0510470 ← 0510470

TERMINAL

TERMINAL
$4.95
$4.99
Leaves in 3-5 days
Required: 2
9
0382544 - Armature
0382544
0382544 ← 0382544

ARMATURE ASSEMBLY

ARMATURE ASSEMBLY
$23.75
You save $1.25. $25.00
Leaves in 6-8 days
Required: 1
17
0303783 - Nut
0303783
0303783 ← 0303783

NUT

NUT
$2.99
You save 37%. $4.75
Ships Immediately
1 Items in stock
Required: 4

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
