1968 OMC Stern Drive 90 - DU-15S

SINGLE LEVER REMOTE CONTROL GROUP section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

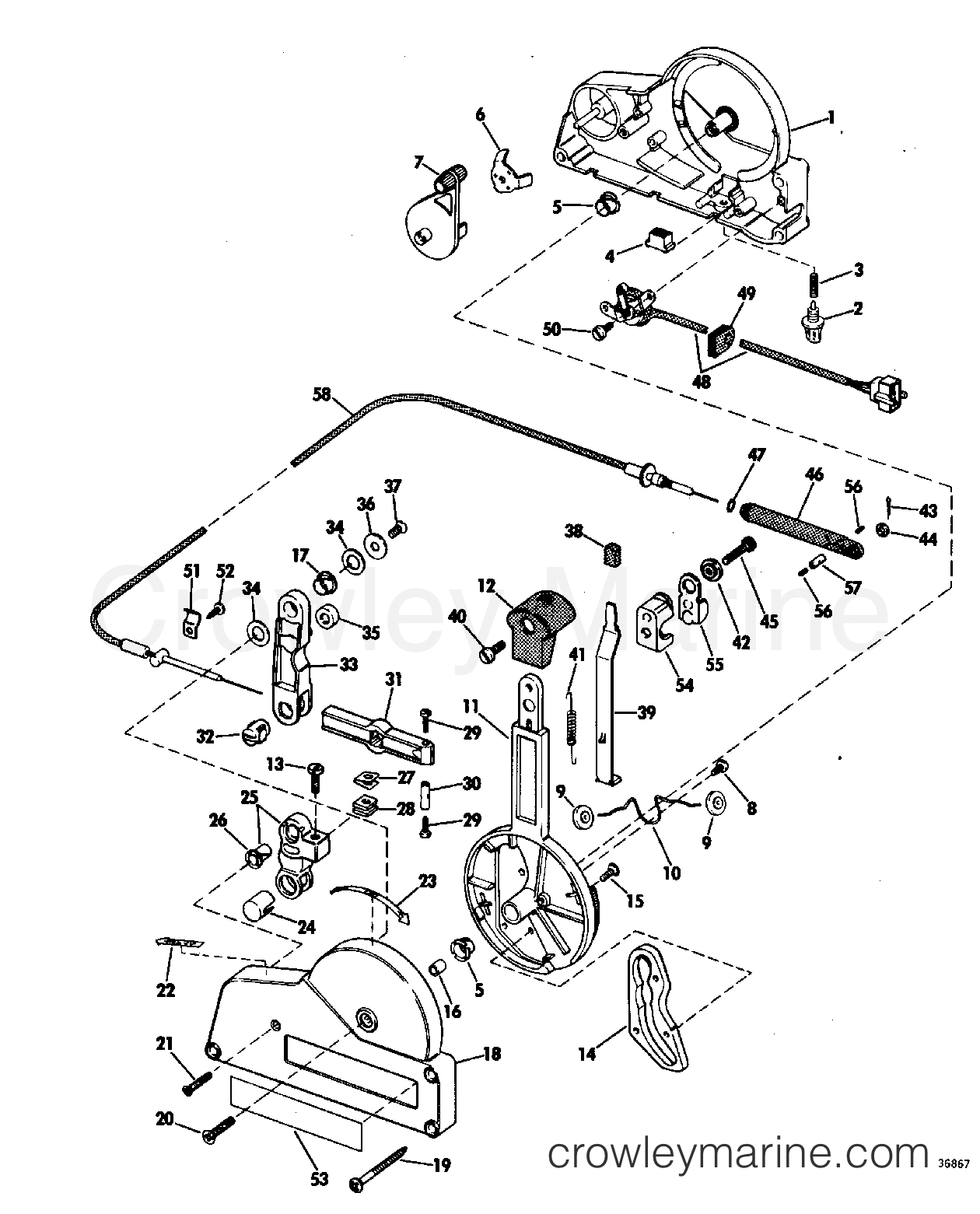

1968 OMC Stern Drive 90 - DU-15S SINGLE LEVER REMOTE CONTROL GROUP section
Use two fingers to zoom
and move the diagram
1968 OMC Stern Drive 90 - DU-15S - SINGLE LEVER REMOTE CONTROL GROUP section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

4
0308515 - Detent
0308515
0308515 ← 0308515

DETENT,THROTTLE FRICTION

DETENT,THROTTLE FRICTION
$16.99
You save 29%. $24.00
Ships Immediately
1 Items in stock
Required: 1
8
0309072 - Knob To Lever Screw
0309072
0309072 ← 0309072

SCREW,SELF TAPPING

SCREW,SELF TAPPING
$.99
You save 21%. $1.25
Ships Immediately
4 Items in stock
Required: 1
10
0308513 - Roller Spring
0308513
0308513 ← 0308513

SPRING,ROLLER

SPRING,ROLLER
$9.98
You save 5%. $10.50
Leaves in 6-8 days
Required: 1
11
0311622 - Control Housing Lever
0311622
0311622 ← 0311622

LEVER,CONTROL HOUSING

LEVER,CONTROL HOUSING
$41.80
You save $2.20. $44.00
Leaves in 6-8 days
Required: 1
13
0313776 - Adjustment Screw
0313776
0313776 ← 0313776

SCREW,LINK

SCREW,LINK
$2.99
You save 25%. $4.00
Ships Immediately
1 Items in stock
Required: 1
14
0310745 - Lever Cam
0310745
0310745 ← 0310745

CAM,LEVER

CAM,LEVER
$7.99
You save 33%. $12.00
Ships Immediately
1 Items in stock
Required: 1
15
0310747 - Cam To Lever Screw
0310747
0310747 ← 0310747

SCREW,CAM TO LEVER

SCREW,CAM TO LEVER
$1.43
You save 5%. $1.50
Leaves in 6-8 days
Required: 3
17
0310691 - Lever Bushing
0310691
0310691 ← 0310691

BUSHING,LEVER

BUSHING,LEVER
$7.60
You save 5%. $8.00
Leaves in 6-8 days
Required: 1
18
0311016 - Cable Half Housing
0311016
0311016 ← 0311016

HOUSING,CABLE HALF

HOUSING,CABLE HALF
$9.99
You save 33%. $15.00
Ships Immediately
1 Items in stock
Required: 1
19
0308056 - Screw
0308056
0308056 ← 0308056

SCREW

SCREW
Notes: DUEL INSTALLATION,ORDER THREE (3) PART NO.308827 SCREW.
$8.99
You save 29%. $12.75
Ships Immediately
5+ Items in stock
Required: 3
20
0308527 - Mounting Bracket Screw
0308527
0308527 ← 0308527

SCREW,PIVOT

SCREW,PIVOT
$5.95
$6.00
Leaves in 6-8 days
Required: 1
32
0308035 - Casing Guide Insert
0308035
0308035 ← 0308035

INSERT,CASING GUIDE

INSERT,CASING GUIDE
$9.95
You save 10%. $11.00
Leaves in 6-8 days
Required: 1
33
0379650 - Link
0379650
0379650 ← 0379650

LINK

LINK
$24.99
You save $11.01. $36.00
Ships Immediately
2 Items in stock
Required: 1
35
0310693 - Control Lever Roller
0310693
0310693 ← 0310693

ROLLER,CONTROL LEVER

ROLLER,CONTROL LEVER
$14.95
You save $1.05. $16.00
Leaves in 6-8 days
Required: 1
36
0310690 - Link Washer
0310690
0310690 ← 0310690

WASHER,LINK

WASHER,LINK
$.99
You save 18%. $1.20
Ships Immediately
2 Items in stock
Required: 1
38
0311618 - Cap
0311618
0311618 ← 0311618

CAP

CAP
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 0
40
0311621 - Knob Screw
0311621
0311621 ← 0311621

SCREW,KNOB

SCREW,KNOB
$1.14
You save 5%. $1.20
Leaves in 6-8 days
Required: 1
41
0311620 - Spring
0311620
0311620 ← 0311620

SPRING,LOCKING LEVER

SPRING,LOCKING LEVER
$9.95
You save 10%. $11.00
Leaves in 6-8 days
Required: 1
42
0310688 - Spacer
0310688
0310688 ← 0310688

SPACER

SPACER
$19.99
You save 32%. $29.25
Ships Immediately
4 Items in stock
Required: 1
44
0303887 - Washer
0303887
0303887 ← 0303887

WASHER

WASHER
$4.75
$4.75
Leaves in 3-5 days
Required: 1
45
0308238 - Anchor Block Screw
0308238
0308238 ← 0308238

SCREW,ANCHOR BLOCK

SCREW,ANCHOR BLOCK
$.99
You save 51%. $2.00
Ships Immediately
5+ Items in stock
Required: 1
47
0307063 - O-Ring
0307063
0307063 ← 0307063

"O"RING

"O"RING
$6.99
You save 26%. $9.50
Ships Immediately
5+ Items in stock
Required: 1
49
0307994 - Grommet
0307994
0307994 ← 0307994

GROMMET

GROMMET
$11.16
You save 5%. $11.75
Leaves in 3-5 days
Required: 1
50
0308519 - Screw
0308519
0308519 ← 0308519

SCREW

SCREW
$.95
You save 5%. $1.00
Leaves in 6-8 days
Required: 2
51
0120001 - Clamp-Speedo
0120001
0120001 ← 0120001

CLAMP

CLAMP
$5.75
$5.75
Leaves in 3-5 days
Required: 5
52
0310115 - Screw
0310115
0310115 ← 0310115

SCREW

SCREW
$2.99
You save 30%. $4.25
Ships Immediately
5+ Items in stock
Required: 5
55
0310687 - Spring
0310687
0310687 ← 0310687

SPRING,LOCK

SPRING,LOCK
$11.99
You save 10%. $13.29
Ships Immediately
1 Items in stock
Required: 1
58
 -
← 0

THROTTLE CABLE ASSEMBLY.,5 FT THRU 50 FT

THROTTLE CABLE ASSEMBLY.,5 FT THRU 50 FT
Notes: LONGER CABLES ARE AVAILABLE IN TWO FOOT INCREMENTS UP TO 50ft.. SEE YOUR DEALER FOR MORE INFORMATION.
Items in stock
Required: 0
58
0377372 - CABLE 12FT
0377372
0377372 ← 0377372

THROTTLE CABLE,12'

THROTTLE CABLE,12'
$34.99
You save $15.00. $49.99
Ships Immediately
1 Items in stock
Required: 0
58
0377376 - CABLE ASSEMBLY, 16 ft. LONG LIFE CABLES
0377376
0377376 ← 0377376

THROTTLE CABLE,16'

THROTTLE CABLE,16'
$44.99
You save 10%. $50.09
Ships Immediately
2 Items in stock
Required: 0
58
0377377 - CABLE ASSEMBLY,17 ft. LONG LIFE CABLES
0377377
0377377 ← 0377377

THROTTLE CABLE,17'

THROTTLE CABLE,17'
$34.99
You save $16.10. $51.09
Ships Immediately
1 Items in stock
Required: 0

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
