1968 OMC Stern Drive 90 - DU-15S

LOWER GEARCASE GROUP section

Change Section

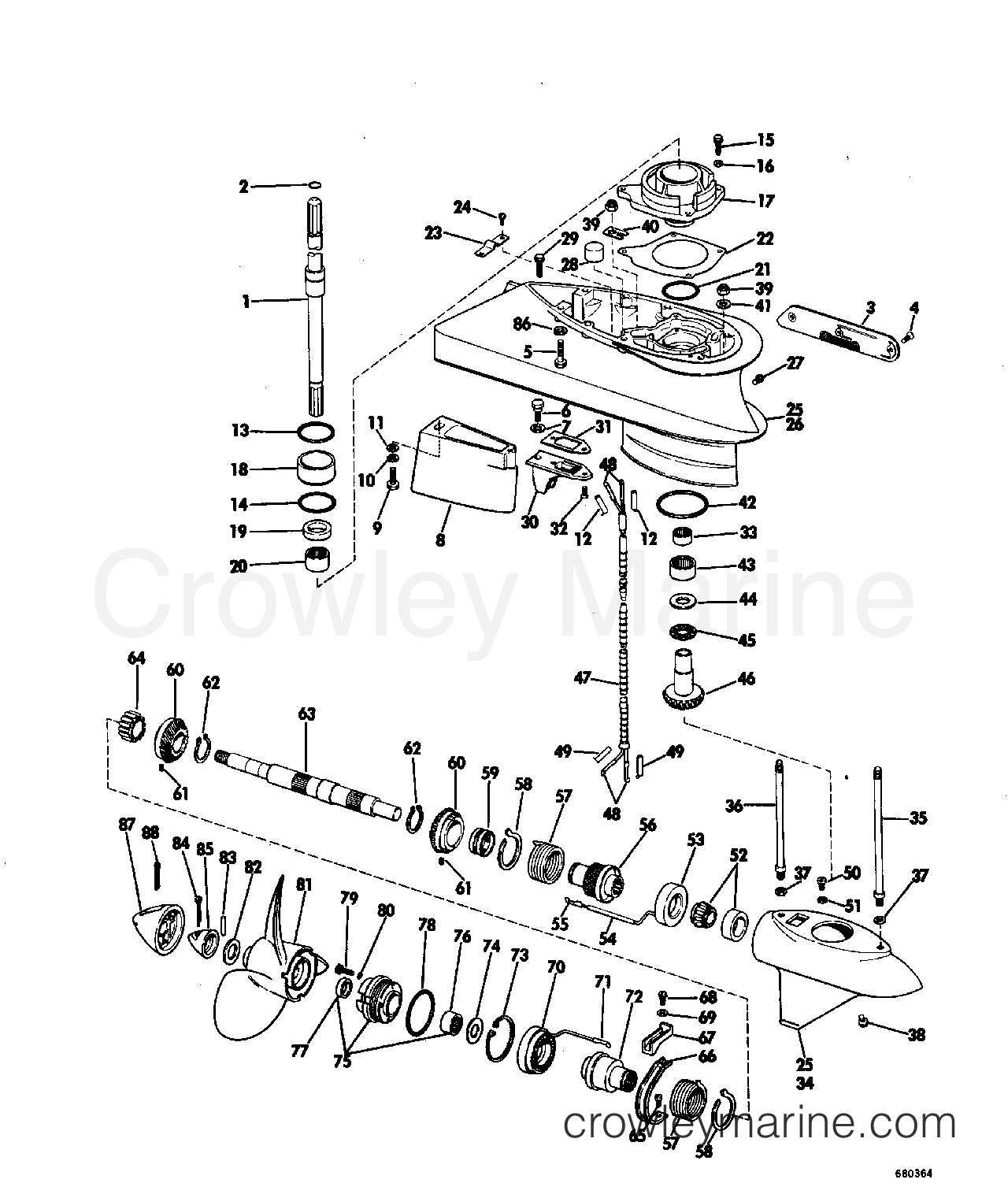

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1968 OMC Stern Drive 90 - DU-15S LOWER GEARCASE GROUP section
Use two fingers to zoom
and move the diagram
1968 OMC Stern Drive 90 - DU-15S - LOWER GEARCASE GROUP section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

3
0378971 - Cover & Screen Assembly
0378971
0378971 ← 0378971

COVER & SCREEN ASSEMBLY

COVER & SCREEN ASSEMBLY
$14.99
You save 32%. $22.00
Ships Immediately
1 Items in stock
Required: 1
4
0307112 - Screw
0307112
0307112 ← 0307112

SCREW..1/4-20

SCREW..1/4-20
$3.99
You save 20%. $5.00
Ships Immediately
2 Items in stock
Required: 3
6
0308605 - Screw
0308605
0308605 ← 0308605

SCREW..5/16-18

SCREW..5/16-18
$.99
$1.00
Ships Immediately
2 Items in stock
Required: 1
7
0308681 - Washer
0308681
0308681 ← 0308681

WASHER

WASHER
$.99
$1.00
Ships Immediately
2 Items in stock
Required: 1
8
0308474 - Rudder
0308474
0308474 ← 0308474

RUDDER

RUDDER
$11.99
You save 33%. $17.79
Ships Immediately
1 Items in stock
Required: 1
9
0309222 - Screw
0309222
0309222 ← 0309222

SCREW..5/16-18

SCREW..5/16-18
$.95
You save 5%. $1.00
Leaves in 6-8 days
Required: 1
10
0309293 - Lockwasher
0309293
0309293 ← 0309293

LOCKWASHER

LOCKWASHER
$.95
You save 5%. $1.00
Leaves in 6-8 days
Required: 1
11
0309543 - Washer
0309543
0309543 ← 0309543

WASHER

WASHER
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
15
0308707 - Screw
0308707
0308707 ← 0308707

SCREW..1/4-20

SCREW..1/4-20
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 4
18
0381142 - Bushing Assembly
0381142
0381142 ← 0381142

BUSHING ASSEMBLY

BUSHING ASSEMBLY
$3.99
You save 34%. $6.00
Ships Immediately
4 Items in stock
Required: 1
19
0308715 - Oil Retainer
0308715
0308715 ← 0308715

OIL RETAINER

OIL RETAINER
$.00
You save 100%. $.00
Ships Immediately
4 Items in stock
Required: 1
23
0308599 - Clamp
0308599
0308599 ← 0308599

CLAMP

CLAMP
$2.38
You save 5%. $2.50
Leaves in 6-8 days
Required: 2
24
0308691 - Screw
0308691
0308691 ← 0308691

SCREW..10-24

SCREW..10-24
$1.14
You save 5%. $1.20
Leaves in 6-8 days
Required: 2
28
0308604 - Plug
0308604
0308604 ← 0308604

PLUG

PLUG
$7.13
You save 5%. $7.50
Leaves in 6-8 days
Required: 1
29
0308707 - Screw
0308707
0308707 ← 0308707

SCREW..1/4-20

SCREW..1/4-20
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 1
31
0309340 - Gasket
0309340
0309340 ← 0309340

GASKET

GASKET
$4.99
You save 29%. $7.00
Ships Immediately
5+ Items in stock
Required: 1
32
0307112 - Screw
0307112
0307112 ← 0307112

SCREW..1/4-20

SCREW..1/4-20
$3.99
You save 20%. $5.00
Ships Immediately
2 Items in stock
Required: 1
36
0308217 - Rear Stud
0308217
0308217 ← 0308217

STUD-REAR

STUD-REAR
$34.99
You save $15.01. $50.00
Ships Immediately
3 Items in stock
Required: 1
37
0307086 - Gasket (Metal)
0307086
0307086 ← 0307086

GASKET

GASKET
$17.99
You save 28%. $25.00
Ships Immediately
5+ Items in stock
Required: 2
39
0307160 - Nut
0307160
0307160 ← 0307160

NUT

NUT
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 2
40
0308277 - Retainer
0308277
0308277 ← 0308277

RETAINER

RETAINER
$2.99
You save 25%. $4.00
Ships Immediately
1 Items in stock
Required: 1
42
0307103 - Seal
0307103
0307103 ← 0307103

SEAL

SEAL
$3.99
You save 11%. $4.50
Ships Immediately
1 Items in stock
Required: 1
44
0307836 - Thrust Washer
0307836
0307836 ← 0307836

THRUST WASHER

THRUST WASHER
$24.95
You save $1.05. $26.00
Leaves in 6-8 days
Required: 1
45
0378262 - Thrust Bearing
0378262
0378262 ← 0378262

THRUST BEARING

THRUST BEARING
$54.99
You save $25.01. $80.00
Ships Immediately
3 Items in stock
Required: 1
46
0308561 - Driveshaft Pinion Gear
0308561
0308561 ← 0308561

PINION

PINION
$83.99
You save $36.01. $120.00
Ships Immediately
2 Items in stock
Required: 1
48
0308808 - Knife Disconnect
0308808
0308808 ← 0308808

KNIFE DISCONNECT

KNIFE DISCONNECT
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
50
0307019 - Screw
0307019
0307019 ← 0307019

SCREW,SEMS..10-24

SCREW,SEMS..10-24
$2.99
You save 25%. $4.00
Ships Immediately
5+ Items in stock
Required: 1
52
0377874 - Roller Bearing
0377874
0377874 ← 0377874

ROLLER BEARING

ROLLER BEARING
$39.99
You save $18.01. $58.00
Ships Immediately
1 Items in stock
Required: 1
54
0308317 - Tubing
0308317
0308317 ← 0308317

TUBING

TUBING
$7.13
You save 5%. $7.50
Leaves in 6-8 days
Required: 1
55
0308808 - Knife Disconnect
0308808
0308808 ← 0308808

KNIFE DISCONNECT

KNIFE DISCONNECT
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
56
0378519 - Forward Clutch Hub Assembly
0378519
0378519 ← 0378519

CLUTCH HUB ASSEMBLY-FRONT

CLUTCH HUB ASSEMBLY-FRONT
$117.99
You save $50.01. $168.00
Ships Immediately
2 Items in stock
Required: 1
57
0311030 - Clutch Spring
0311030
0311030 ← 0311030

SPRING

SPRING
$174.95
You save $11.05. $186.00
Leaves in 6-8 days
Required: 2
59
0308276 - Bushing
0308276
0308276 ← 0308276

BUSHING

BUSHING
$24.99
You save $10.01. $35.00
Ships Immediately
5+ Items in stock
Required: 1
60
0308274 - Gear
0308274
0308274 ← 0308274

GEAR

GEAR
$52.99
You save $22.01. $75.00
Ships Immediately
3 Items in stock
Required: 2
62
0308213 - Ring
0308213
0308213 ← 0308213

RETAINING RING

RETAINING RING
$6.99
You save 33%. $10.50
Ships Immediately
5+ Items in stock
Required: 2
71
0308808 - Knife Disconnect
0308808
0308808 ← 0308808

KNIFE DISCONNECT

KNIFE DISCONNECT
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
72
0378625 - Rear Clutch Hub
0378625
0378625 ← 0378625

CLUTCH HUB ASSY-REAR

CLUTCH HUB ASSY-REAR
$74.99
You save $33.01. $108.00
Ships Immediately
2 Items in stock
Required: 1
73
0307080 - Gearcase head Retaining Ring
0307080
0307080 ← 0307080

RETAINING RING

RETAINING RING
$11.40
You save 5%. $12.00
Leaves in 6-8 days
Required: 1
74
0308216 - Thrust Washer
0308216
0308216 ← 0308216

THRUST WASHER

THRUST WASHER
$14.99
You save 32%. $22.00
Ships Immediately
5+ Items in stock
Required: 1
76
0377868 - Bearing Assembly
0377868
0377868 ← 0377868

BEARING ASSEMBLY

BEARING ASSEMBLY
$23.99
You save $1.26. $25.25
Leaves in 3-5 days
Required: 1
82
0901217 - Thrust Washer
0901217
0901217 ← 0901217

THRUST WASHER

THRUST WASHER
Notes: USED WITH #379260 PROPELLER (10" X 9-1/4") AND 381446 PROPELLER (10" X 11" MICH.WHEEL)
$2.23
You save 5%. $2.35
Leaves in 6-8 days
Required: 1
83
0307217 - Drive Pin
0307217
0307217 ← 0307217

DRIVE PIN

DRIVE PIN
$7.99
You save 31%. $11.50
Ships Immediately
5+ Items in stock
Required: 1
83
0309954 - Drive Pin
0309954
0309954 ← 0309954

DRIVE PIN

DRIVE PIN
Notes: USED WITH #379260 PROPELLER (10" X 9-1/4") AND 381446 PROPELLER (10" X 11" MICH.WHEEL)
$7.99
You save 31%. $11.50
Ships Immediately
2 Items in stock
Required: 1
84
0309955 - Prop Nut Cotter Pin
0309955
0309955 ← 0309955

COTTER PIN

COTTER PIN
Notes: USED WITH #379260 PROPELLER (10" X 9-1/4") AND 381446 PROPELLER (10" X 11" MICH.WHEEL)
$.99
You save 17%. $1.19
Ships Immediately
2 Items in stock
Required: 1
85
0309947 - Propeller Nut
0309947
0309947 ← 0309947

PROPELLER NUT

PROPELLER NUT
Notes: USED WITH #379260 PROPELLER (10" X 9-1/4") AND 381446 PROPELLER (10" X 11" MICH.WHEEL)
$31.99
You save $3.01. $35.00
Ships Immediately
1 Items in stock
Required: 1
87
0380610 - Nut Key & Pin
0380610
0380610 ← 0380610

PROPELLER NUT ASSEMBLY

PROPELLER NUT ASSEMBLY
$42.99
You save $19.01. $62.00
Ships Immediately
5+ Items in stock
Required: 1
88
0307244 - Cotter Pin
0307244
0307244 ← 0307244

COTTER PIN

COTTER PIN
$2.75
$2.75
Ships Immediately
5+ Items in stock
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
