1979 Evinrude Outboards 4 - 4904D

GEARCASE-WEEDLESS DRIVE section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

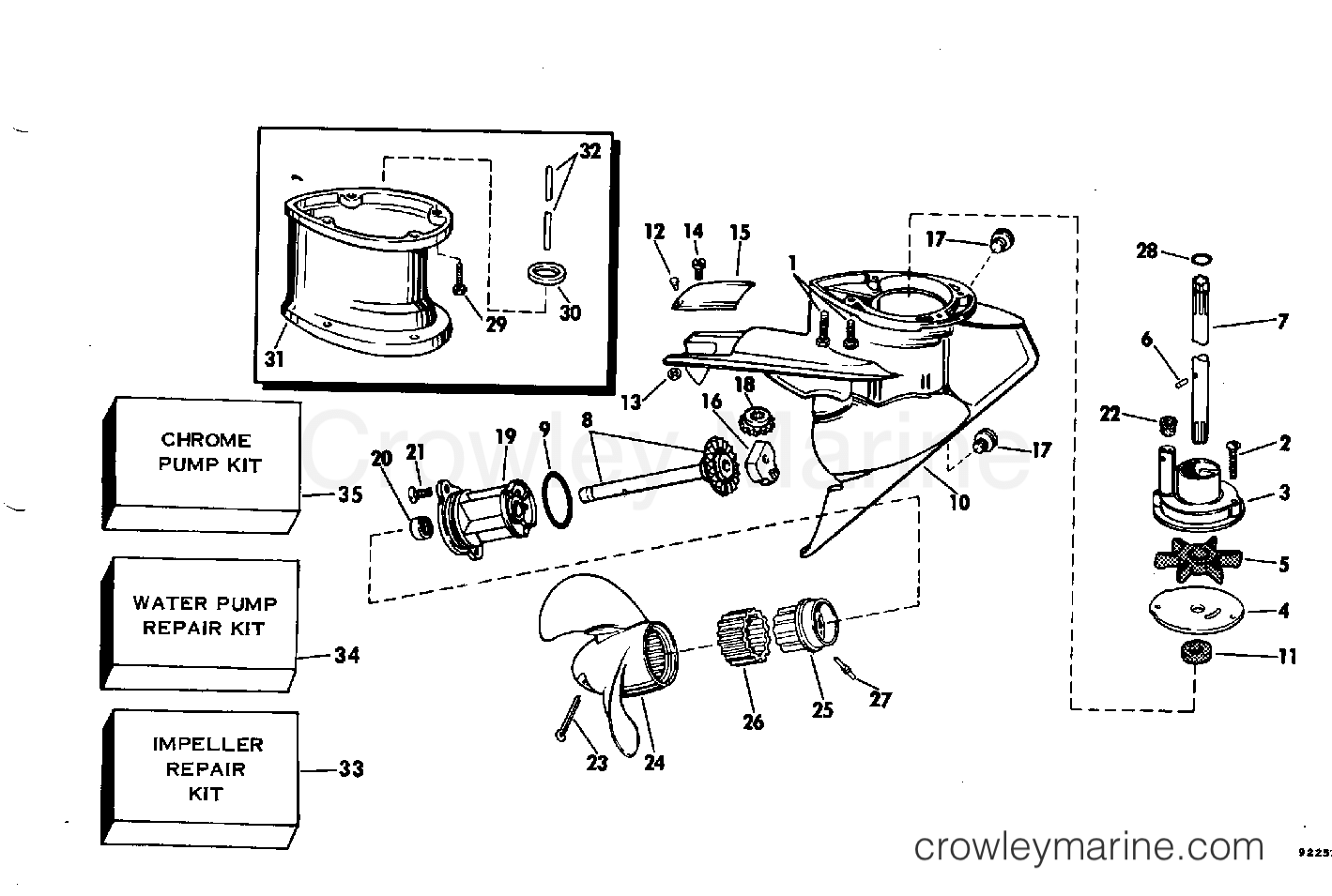

1979 Evinrude Outboards 4 - 4904D GEARCASE-WEEDLESS DRIVE section
Use two fingers to zoom
and move the diagram
1979 Evinrude Outboards 4 - 4904D - GEARCASE-WEEDLESS DRIVE section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
0308707 - Screw
0308707
0308707 ← 0308707

SCREW, 13/16" LONG

SCREW, 13/16" LONG
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 2
3
0310344 - Water Pump Housing
0310344
0310344 ← 0310344

HOUSING, IMPELLER

HOUSING, IMPELLER
$134.95
You save $7.80. $142.75
Leaves in 3-5 days
Required: 1
8
0386179 - Propeller Shaft Assembly
0386179
0386179 ← 0386179

PROPELLER SHAFT ASSEMBLY.

PROPELLER SHAFT ASSEMBLY.
$64.99
You save $31.01. $96.00
Ships Immediately
1 Items in stock
Required: 1
13
0303068 - Cover Rivet Washer
0303068
0303068 ← 0303068

WASHER, COVER RIVET

WASHER, COVER RIVET
$1.99
You save 20%. $2.50
Ships Immediately
5+ Items in stock
Required: 1
14
0203342 - Exhaust Cover Screw
0203342
0203342 ← 0203342

SCREW, EXHAUST COVER

SCREW, EXHAUST COVER
$1.89
You save 5%. $1.99
Leaves in 6-8 days
Required: 1
16
0203140 - Thrust Bearing
0203140
0203140 ← 0203140

BEARING, THRUST

BEARING, THRUST
$17.10
You save 5%. $18.00
Leaves in 6-8 days
Required: 1
18
0203648 - Driveshaft Pinion
0203648
0203648 ← 0203648

PINION, DRIVESHAFT

PINION, DRIVESHAFT
$24.99
You save $10.01. $35.00
Ships Immediately
1 Items in stock
Required: 1
21
0302974 - Bearing Housing Screw
0302974
0302974 ← 0302974

SCREW, BEARING HOUSING

SCREW, BEARING HOUSING
$3.99
You save 34%. $6.00
Ships Immediately
2 Items in stock
Required: 2

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
