Select Your Engine:

1974 Evinrude Outboards 25 - 25403M

CARBURETOR section

Change Section

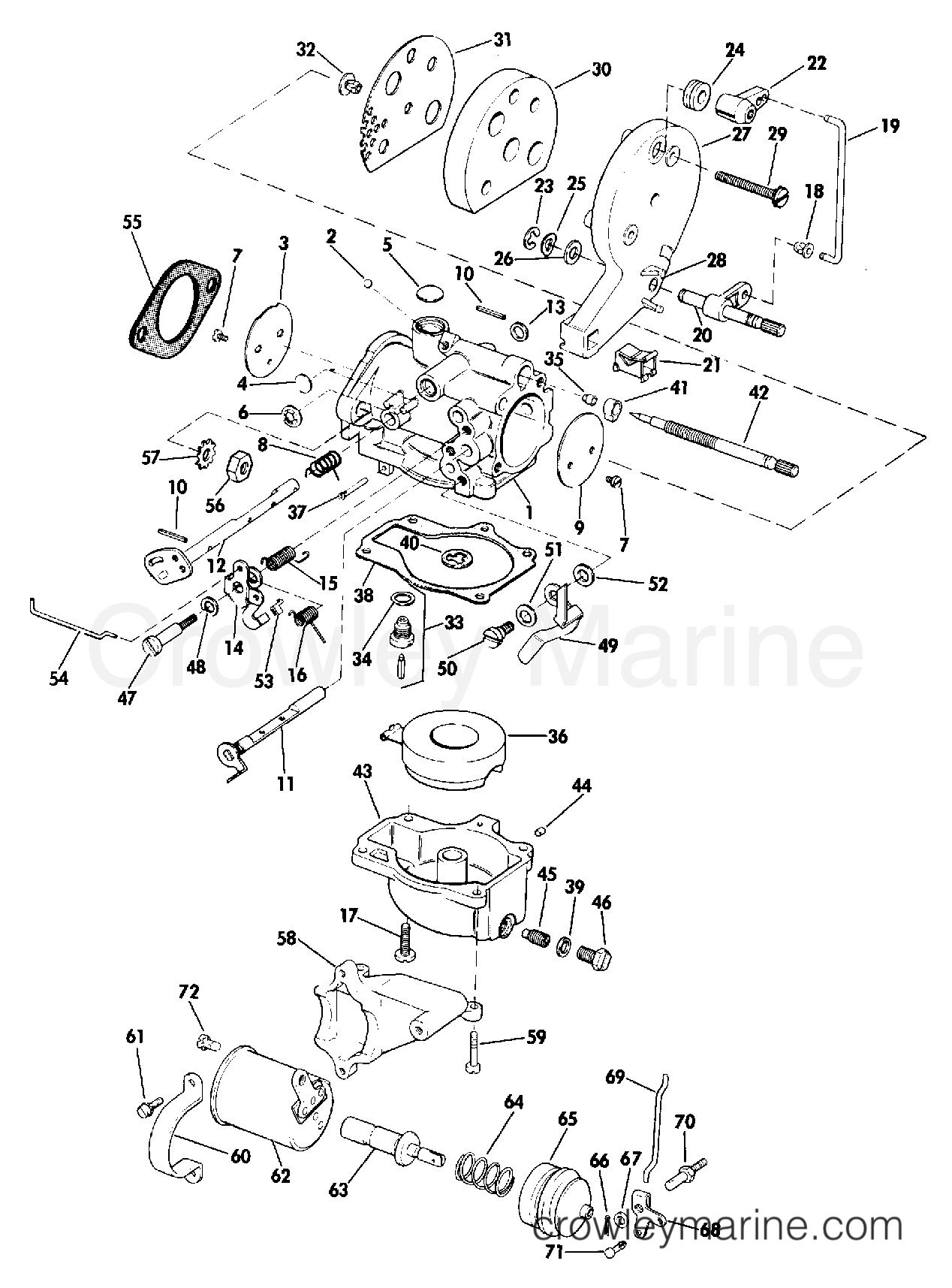

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1974 Evinrude Outboards 25 - 25403M - CARBURETOR 1974 Evinrude Outboards 25 - 25403M - CARBURETOR
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

3
0318442 - Throttle Valve
0318442
0318442 0318442

VALVE, THROTTLE

VALVE, THROTTLE
$5.99
You save 25%. $7.99
Ships Immediately
2 Items in stock
Required: 1
4
0307542 - Core Plug
0307542
0307542 0307542

CORE PLUG

CORE PLUG
Notes: ALSO AVAILABLE IN CARBURETOR REPAIR KIT, PART NO.384413
$5.95
$6.10
Leaves in 3-5 days
Required: 2
5
0306442 - Plug
0306442
0306442 0306442

CORE PLUG

CORE PLUG
Notes: ALSO AVAILABLE IN CARBURETOR REPAIR KIT, PART NO.384413
$7.05
You save 5%. $7.42
Leaves in 3-5 days
Required: 1
6
0313973 - Applique Fastener (side and rear)
0313973
0313973 0313973

RETAINER

RETAINER
Notes: ALSO AVAILABLE IN CARBURETOR REPAIR KIT, PART NO.384413
$5.95
$6.10
Leaves in 3-5 days
Required: 1
7
0312852 - Screw
0312852
0312852 0312852

SCREW, VALVE

SCREW, VALVE
$8.99
$9.01
Leaves in 3-5 days
Required: 4
9
0322182 - Choke Valve
0322182 0313359
0322182

VALVE, CHOKE

VALVE, CHOKE
$5.99
You save 25%. $8.00
Ships Immediately
1 Items in stock
Required: 1
10
0303261 - drive shaft 5 Inch Longer Parts Roll Pin
0303261
0303261 0303261

ROLL PIN, SHAFT

ROLL PIN, SHAFT
$6.95
You save 6%. $7.42
Ships Immediately
4 Items in stock
Required: 2
25
0302594 - Washer
0302594
0302594 0302594

WASHER, UPPER

WASHER, UPPER
$11.99
You save 20%. $14.99
Ships Immediately
5+ Items in stock
Required: 1
26
0302539 - Seal Spring
0302539
0302539 0302539

SPRING, LOWER SEAL

SPRING, LOWER SEAL
$23.74
You save $1.25. $24.99
Leaves in 6-8 days
Required: 1
27
0303801 - Washer
0303801
0303801 0303801

WASHER, LOWER

WASHER, LOWER
$24.95
You save $2.04. $26.99
Leaves in 6-8 days
Required: 1
28
0302536 - Retaining Ring
0302536
0302536 0302536

RETAINING RING

RETAINING RING
$8.54
You save 5%. $8.99
Leaves in 6-8 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
