Select Your Engine:

1979 Rigging Parts Accessories - Electrical System

ALTERNATOR KIT SAIL DRIVE section

Change Section

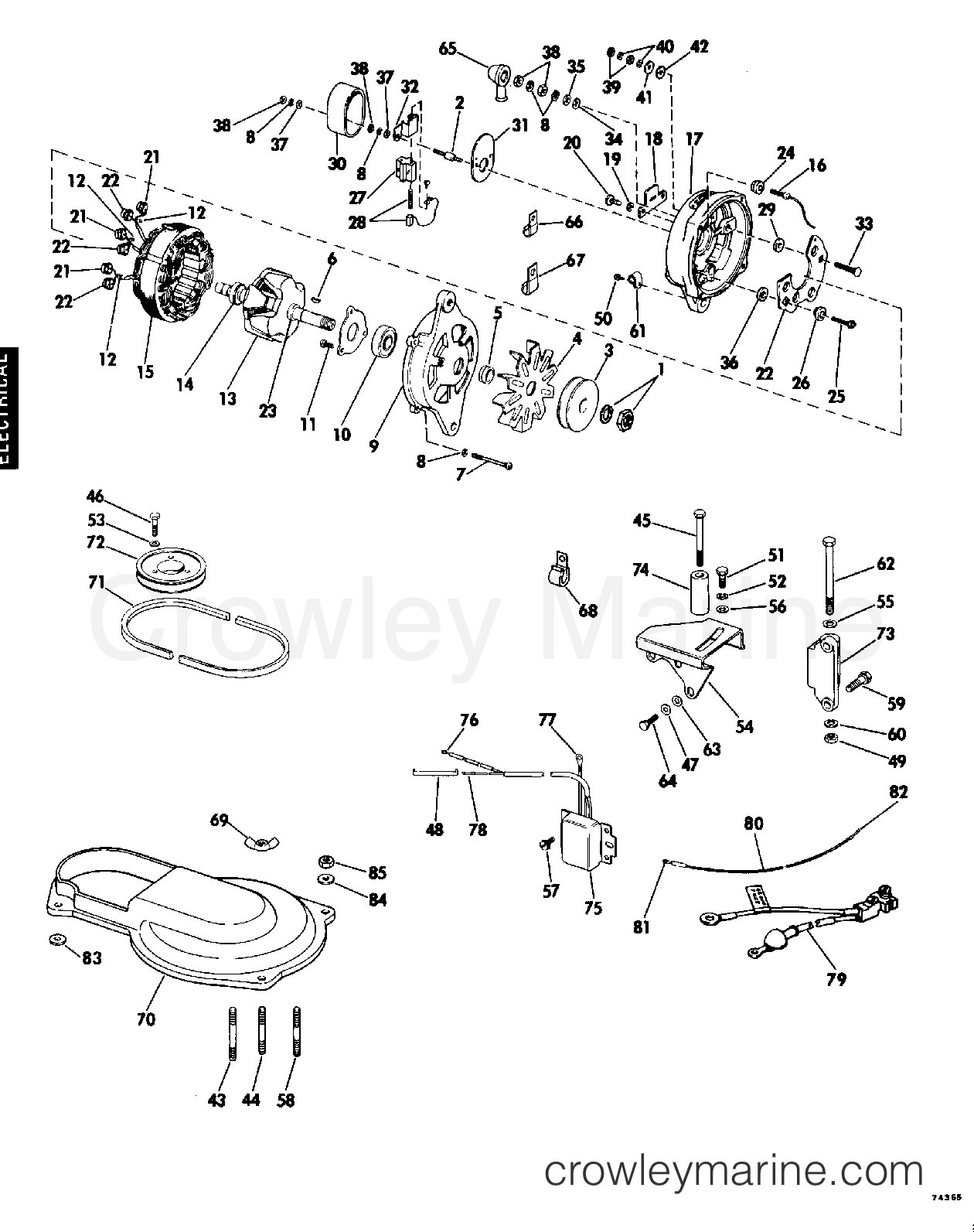

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1979 Rigging Parts Accessories - Electrical System - ALTERNATOR KIT SAIL DRIVE 1979 Rigging Parts Accessories - Electrical System - ALTERNATOR KIT SAIL DRIVE
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

3
0311312 - Driven Pulley
0311312
0311312 0311312

PULLEY, DRIVE

PULLEY, DRIVE
$14.95
$15.00
Leaves in 6-8 days
Required: 1
6
0311315 - Rotor Shaft Key
0311315
0311315 0311315

KEY, ROTOR SHAFT

KEY, ROTOR SHAFT
$.95
You save 5%. $1.00
Leaves in 6-8 days
Required: 1
11
0304608 - Clamp Screw
0304608
0304608 0304608

SCREW, RETAINER

SCREW, RETAINER
$.95
You save 5%. $1.00
Leaves in 6-8 days
Required: 3
12
0382009 - Eyelet Package
0382009
0382009 0382009

EYELET PACKAGE

EYELET PACKAGE
$.99
You save 34%. $1.50
Ships Immediately
2 Items in stock
Required: 1
15
0382003 - Stator Assembly
0382003
0382003 0382003

STATOR ASSEMBLY

STATOR ASSEMBLY
$42.75
You save $2.25. $45.00
Leaves in 6-8 days
Required: 1
16
-
0

STUD, FIELD TERMINAL

STUD, FIELD TERMINAL
Notes: Available in Terminal Stud and Parts package, Order Part Number 383899
Not available for purchase
Required: 1
18
-
0

INSULATION, SLIP RING END

INSULATION, SLIP RING END
Notes: No Part Number
Not available for purchase
Required: 1
19
-
0

LOCKWASHER, INSUL 10

LOCKWASHER, INSUL 10
Notes: No Part Number
Not available for purchase
Required: 2
20
-
0

SCREW, INSUL, 10-32

SCREW, INSUL, 10-32
Notes: No Part Number
Not available for purchase
Required: 2
21
0980294 - Negative Rectifier Set
0980294
0980294 0980294

RECTIFIER, NEGATIVE

RECTIFIER, NEGATIVE
$4.99
You save 17%. $6.00
Ships Immediately
5+ Items in stock
Required: 3
24
-
0

BUSHING, INSUL, FIELD TERMINAL

BUSHING, INSUL, FIELD TERMINAL
Notes: Available in Terminal Stud and Parts package, Order Part Number 383899
Not available for purchase
Required: 1
25
-
0

STUD, AUXILIARY TERMINAL

STUD, AUXILIARY TERMINAL
Notes: Available in Terminal Stud and Parts package, Order Part Number 383899
Not available for purchase
Required: 1
26
-
0

BUSH, INSULATION, AUX TERMINAL

BUSH, INSULATION, AUX TERMINAL
Notes: Available in Terminal Stud and Parts package, Order Part Number 383899
Not available for purchase
Required: 1
27
0382005 - Brush Holder Assembly
0382005
0382005 0382005

BRUSH HOLDER ASSEMBLY

BRUSH HOLDER ASSEMBLY
$5.99
You save 25%. $8.00
Ships Immediately
3 Items in stock
Required: 1
29
-
0

BUSH, INSUL, BATTERY TERMINAL

BUSH, INSUL, BATTERY TERMINAL
Notes: Available in Terminal Stud and Parts package, Order Part Number 383899
Not available for purchase
Required: 1
30
0909127 - Slip Ring Cover
0909127
0909127 0909127

COVER, SLIP RING

COVER, SLIP RING
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 1
32
-
0

COVER, BRUSH HOLDER

COVER, BRUSH HOLDER
Notes: No Part Number
Not available for purchase
Required: 1
33
-
0

STUD, BATTERY TERMINAL

STUD, BATTERY TERMINAL
Notes: Available in Terminal Stud and Parts package, Order Part Number 383899
Not available for purchase
Required: 1
34
-
0

WASHER, INSUL, FIELD TERMINAL

WASHER, INSUL, FIELD TERMINAL
Notes: Available in Terminal Stud and Parts package, Order Part Number 383899
Not available for purchase
Required: 1
35
-
0

WASHER, PLAIN, FLD & AUXILIARY TERMINAL

WASHER, PLAIN, FLD & AUXILIARY TERMINAL
Notes: Available in Terminal Stud and Parts package, Order Part Number 383899
Not available for purchase
Required: 2
36
-
0

WASHER, INSUL AUX TERMINAL

WASHER, INSUL AUX TERMINAL
Notes: Available in Terminal Stud and Parts package, Order Part Number 383899
Not available for purchase
Required: 1
39
-
0

NUT, BATTERY TERMINAL, 1/4-28

NUT, BATTERY TERMINAL, 1/4-28
Notes: No Part Number
Not available for purchase
Required: 2
40
-
0

LOCKWASHER, BAT TERMINAL, 1/4''

LOCKWASHER, BAT TERMINAL, 1/4''
Notes: No Part Number
Not available for purchase
Required: 2
41
-
0

WASHER, PLAIN BAT TERMINAL

WASHER, PLAIN BAT TERMINAL
Notes: Available in Terminal Stud and Parts package, Order Part Number 383899
Not available for purchase
Required: 1
42
-
0

WASHER, INSUL, BAT TERMINAL

WASHER, INSUL, BAT TERMINAL
Notes: Available in Terminal Stud and Parts package, Order Part Number 383899
Not available for purchase
Required: 1
45
0301438 - Upper Mount Screw
0301438
0301438 0301438

SCRW

SCRW
Notes: High Mount
$1.43
You save 5%. $1.50
Leaves in 6-8 days
Required: 1
50
0306158 - Clamp To Base Screw
0306158
0306158 0306158

SCREW, CLAMP

SCREW, CLAMP
$1.14
You save 5%. $1.20
Leaves in 6-8 days
Required: 1
51
0306322 - Screw
0306322
0306322 0306322

SCREW, BRACKET

SCREW, BRACKET
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 1
55
0306405 - Washer
0306405
0306405 0306405

WASHER

WASHER
$4.99
You save 15%. $5.89
Ships Immediately
3 Items in stock
Required: 4
56
0306453 - Washer
0306453
0306453 0306453

WASHER

WASHER
$1.99
You save 34%. $3.00
Ships Immediately
1 Items in stock
Required: 2
60
0309336 - Lockwasher
0309336
0309336 0309336

LOCKWASHER

LOCKWASHER
$2.99
You save 25%. $4.00
Ships Immediately
5+ Items in stock
Required: 1
61
0310503 - Clamp
0310503
0310503 0310503

CLAMP, LEADS

CLAMP, LEADS
$.99
You save 34%. $1.50
Ships Immediately
5+ Items in stock
Required: 1
62
0311391 - Alternator To Bracket Screw
0311391
0311391 0311391

SCREW

SCREW
$3.33
You save 5%. $3.50
Leaves in 6-8 days
Required: 1
63
0300721 - Cable To Connector Washer
0300721 0311734
0300721

WASHER

WASHER
$1.99
$2.00
Ships Immediately
1 Items in stock
Required: 2
64
0313332 - Gearcase To Housing Screw
0313332
0313332 0313332

SCREW, ADJUSTMENT BRACKET

SCREW, ADJUSTMENT BRACKET
Notes: High Mount
$3.99
$4.00
Ships Immediately
2 Items in stock
Required: 3
65
0314902 - Ring terminal Cover, alternator
0314902
0314902 0314902

COVER, LEAD

COVER, LEAD
$9.99
You save 20%. $12.50
Ships Immediately
5+ Items in stock
Required: 1
69
0405644 - Wing Nut
0405644
0405644 0405644

WING NUT

WING NUT
$1.43
You save 5%. $1.50
Leaves in 6-8 days
Required: 3
72
0322326 - Obsolete BRP Part
0322326
0322326 0322326

PULLEY, FLYWHEEL

PULLEY, FLYWHEEL
$142.50
You save $7.50. $150.00
Leaves in 6-8 days
Required: 1
73
0907798 - Alternator Bracket
0907798
0907798 0907798

ALTERNATOR BRACKET

ALTERNATOR BRACKET
Notes: Low Mount
$28.50
You save $1.50. $30.00
Leaves in 6-8 days
Required: 1
78
0308808 - Knife Disconnect
0308808
0308808 0308808

KNIFE DISCONNECT

KNIFE DISCONNECT
$6.99
$7.00
Ships Immediately
1 Items in stock
Required: 1
80
0581968 - LEAD Assembly
0581968
0581968 0581968

LEAD ASSEMBLY

LEAD ASSEMBLY
$22.80
You save $1.20. $24.00
Leaves in 6-8 days
Required: 1
82
0308808 - Knife Disconnect
0308808
0308808 0308808

TERMINAL

TERMINAL
$6.99
$7.00
Ships Immediately
1 Items in stock
Required: 1
83
0302401 - WASHER
0302401
0302401 0302401

WASHER, BELT GUARD

WASHER, BELT GUARD
$.00
You save 100%. $.00
Ships Immediately
3 Items in stock
Required: 5

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
