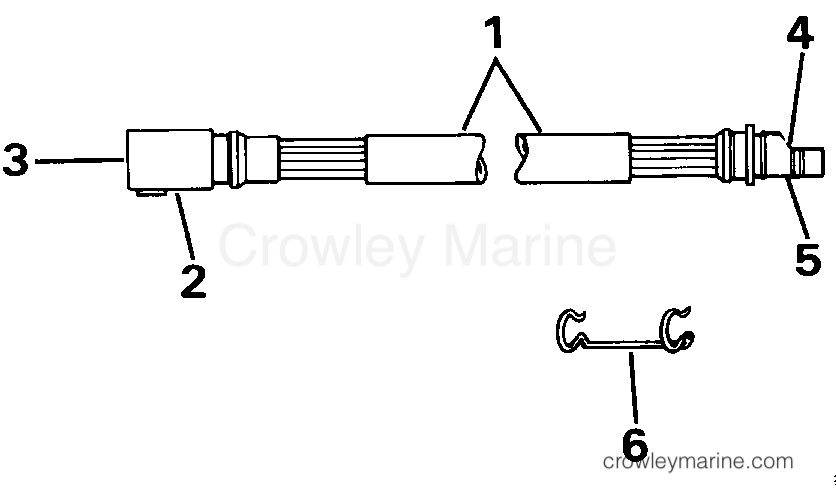

1987 Rigging Accessories - Electrical System EXTENSION CABLE - TRIM/TILT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

1987 Rigging Accessories - Electrical System - EXTENSION CABLE - TRIM/TILT

Evinrude

Cable Assembly 0174494

later

~~$47.98~~

$43.18

You save $4.80

More details

Evinrude

5-Pin Connector 0512754

later

~~$19.45~~

$18.97

You save $0.48

More details

Evinrude

Temperature Switch Pin 0511469

now

~~$1.38~~

$1.17

You save $0.21

More details

Evinrude

Socket Terminal, Shift Assist 0581656

now

~~$5.20~~

$4.42

You save $0.78

More details

Evinrude

Connector 0512753

later

~~$27.56~~

$27.11

You save $0.45

More details

Evinrude

Four-terminal Connector Retainer 0512743

later

~~$14.05~~

$12.70

You save $1.35

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

Back to diagram

1987 Rigging Accessories - Electrical System EXTENSION CABLE - TRIM/TILT diagram
