Technical Features And Description [Fuel System] [2017]

Related Products:
added updated
Technical Features And Description [Fuel System] [2017]
LIT-18616-JD-64
Yamaha Marine

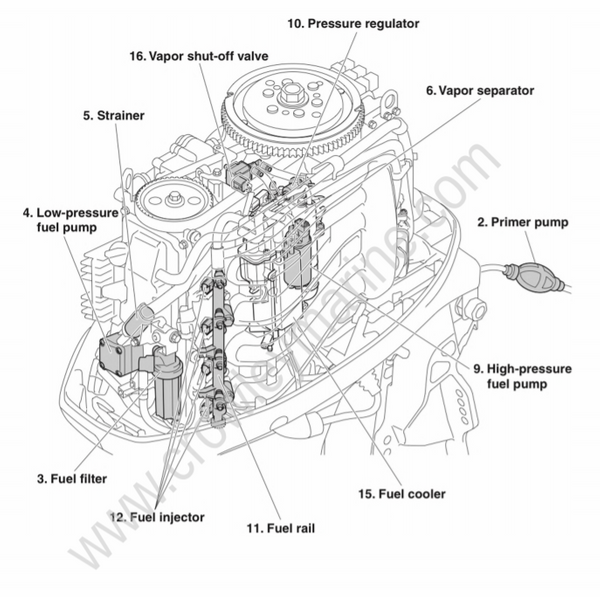

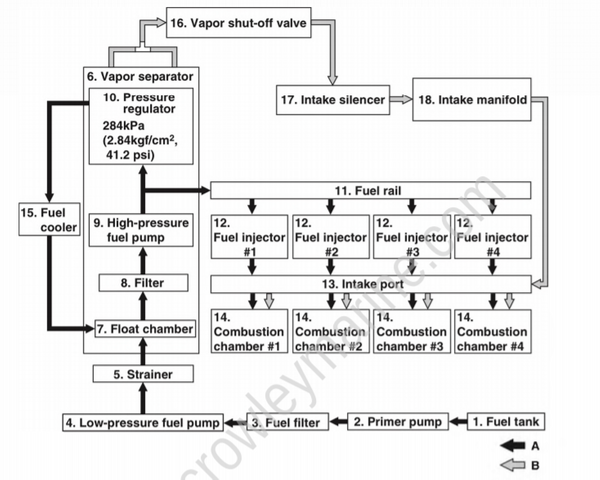

Fuel diagram

  1. Fuel tank

  2. Primer pump

  3. Fuel filter

  4. Low-pressure fuel pump

  5. Strainer

  6. Vapor separator

  7. Float chamber

  8. Filter

  9. High-pressure fuel pump

  10. Pressure regulator

  11. Fuel rail

  12. Fuel injector

  13. Intake port

  14. Combustion chamber

  15. Fuel cooler

  16. Vapor shut-off valve

  17. Intake silencer

  18. Intake manifold

A. Fuel flow

B. Vapor gas flow
