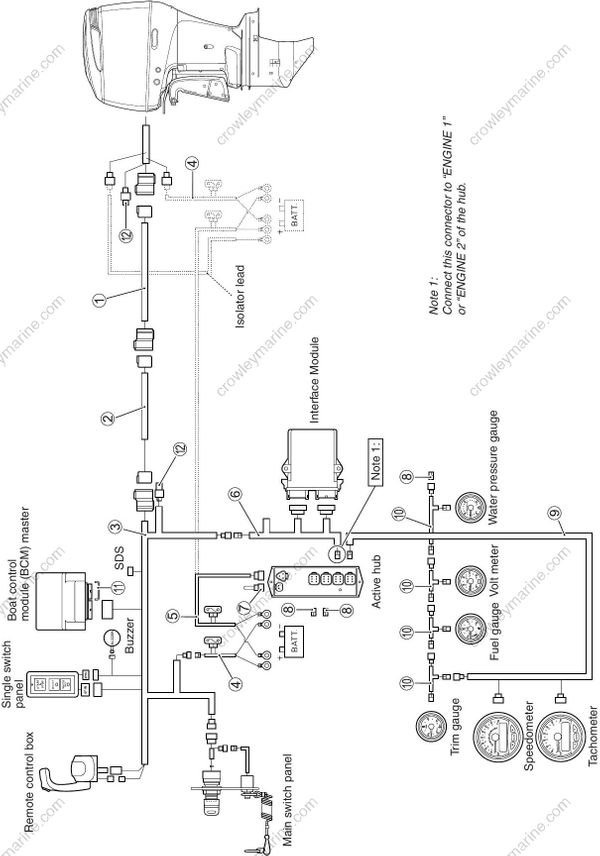

Step 1: Single Engine, Single Station
| No. | Part Name | Part No. |
|---|---|---|
| (1) | EXT WIR HARNESS, REMOTE CONTROL 2.0 m | 36620-98J20 |
| (2) | MAIN WIRE HARNESS, REMOTE CONTROL 6.5 m MAIN WIRE HARNESS, REMOTE CONTROL 9.5 m |
36620-98J00 36620-98J10 |
| (3) | HARNESS ASSY, BCM NO.1 FOR SNGL | 36623-98J00 |
| (4) | HARNESS ASSY, BATTERY | 36625-98J00 |
| (5) | HARNESS ASSY, ACTIVE HUB PWR 2.5 m HARNESS ASSY, ACTIVE HUB PWR 6.0 m |
36663-98J00 36663-98J10 |
| (6) | HARNESS ASSY, INTERFACE UNIT | 36661-98J00 |
| (7) | WIRE COMP, JUMPER | 36665-98J00 |
| 8 | CAP, 6 PIN CONNECTOR | 36666-98J10 |
| (9) | HARNESS ASSY, 3” GAUGE | 36664-98J00 |
| (10) | HARNESS ASSY, 2” GAUGE | 36664-98J10 |
| (11) | CAP, BCM CONNECTOR | 33911-88BL0 |
| (12) | RESISTOR, TERMINAL | 33926-98J00 |
