Setup Manual DF300 Installation Of Switch Panel[Triple Switch Panel Assembly]

Related Products:
added updated
Setup Manual DF300 Installation Of Switch Panel[Triple Switch Panel Assembly]
99505-98J00-01E
Suzuki Marine

Steps:

  1. TRIPLE SWITCH PANEL ASSEMBLY
  2. INSTALLING HOLE DIMENSIONS:

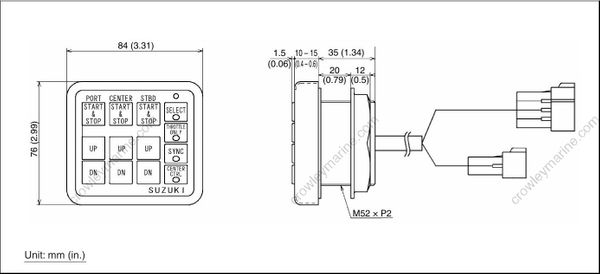

Step 1: TRIPLE SWITCH PANEL ASSEMBLY

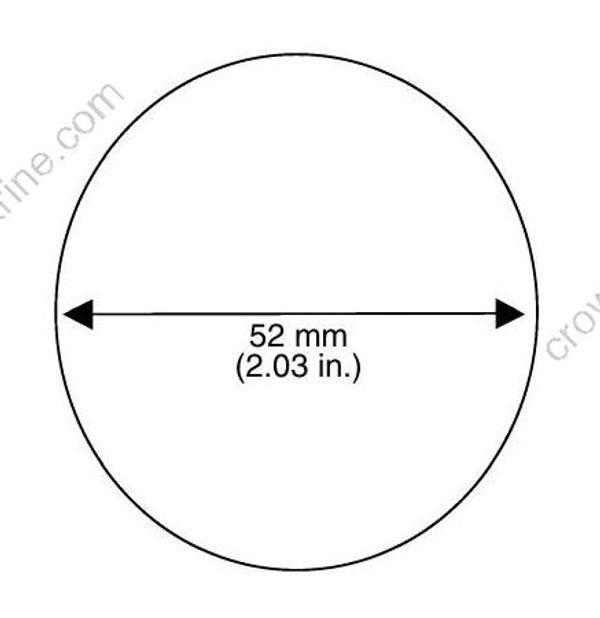

Step 2: INSTALLING HOLE DIMENSIONS:

Make a hole of 52 mm in diameter on the triple switch panel assembly as shown in the figure below. Fix the panel with a spin nut.
