Setup Manual DF300 Installation Of Switch Panel[Single Switch Panel Assembly]
99505-98J00-01E
Suzuki Marine

Sections:

  1. SINGLE SWITCH PANEL ASSEMBLY
  2. INSTALLING HOLE DIMENSIONS:

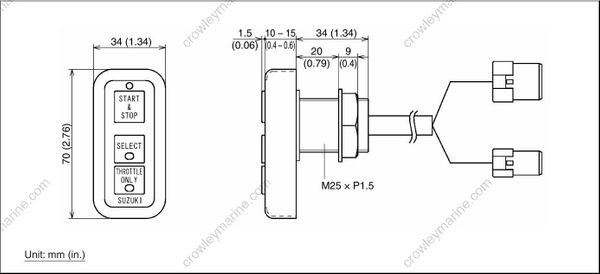

SINGLE SWITCH PANEL ASSEMBLY

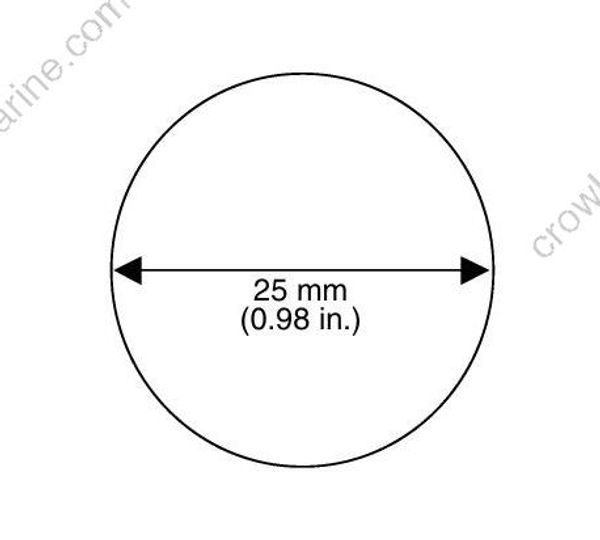

INSTALLING HOLE DIMENSIONS:

Make a hole of 25 mm in diameter on the single switch panel assembly as shown in the figure below. Fix the panel with a spin nut.
