Setup Manual DF300 Installation Of Switch Panel[Instrument Dimensions]

Setup Manual DF300 Installation Of Switch Panel[Instrument Dimensions]
99505-98J00-01E
Suzuki Marine

Sections:

  1. FASTENING TO PANEL
  2. INSTRUMENT DIMENSIONS

FASTENING TO PANEL

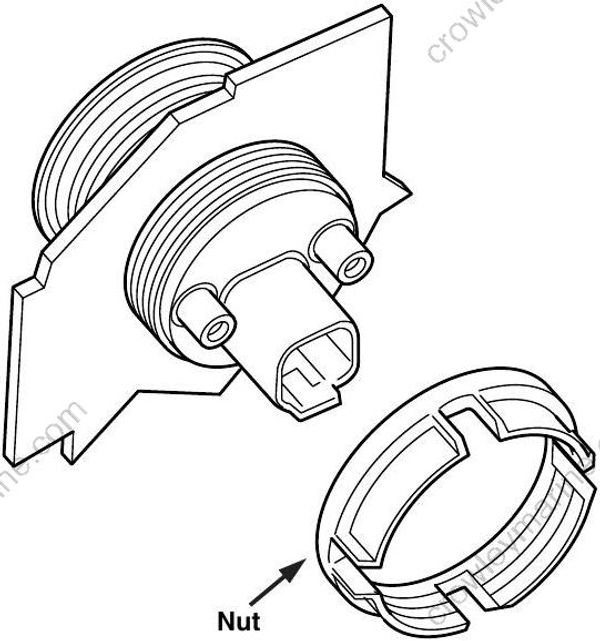

Insert instrument into panel hole. Thread nut onto threaded housing of instrument and tighten to back of panel. DO NOT exceed 1.1 N·m (10 in. lbs.) tightening force.

INSTRUMENT DIMENSIONS

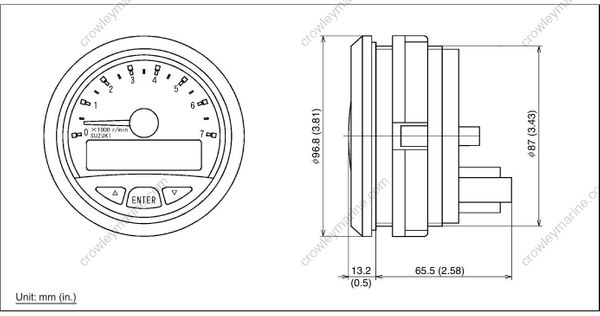

Tachometer

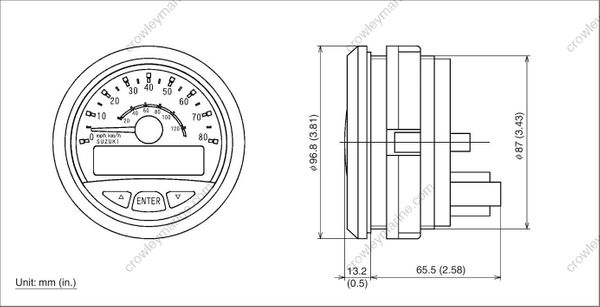

Speedometer

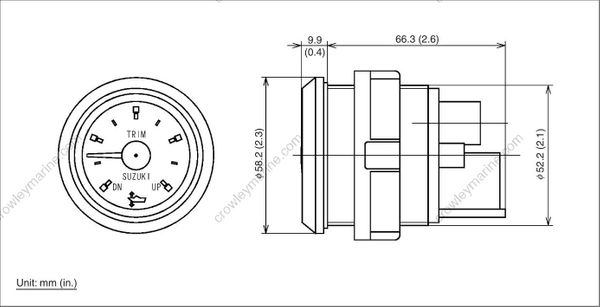

Trim gauge

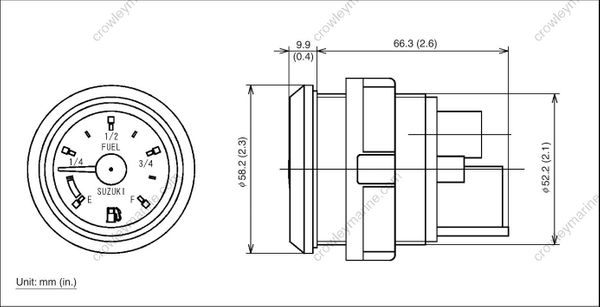

Fuel gauge

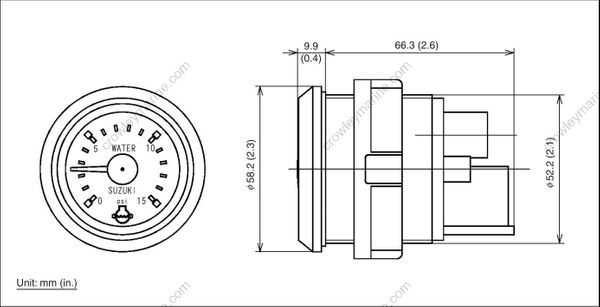

Water pressure gauge

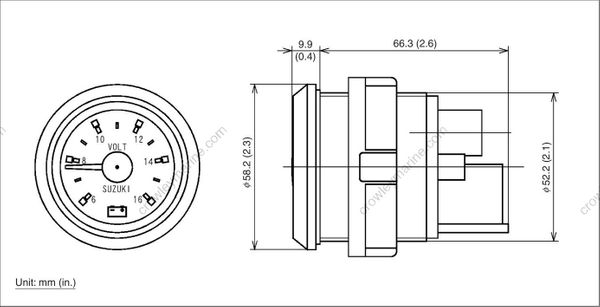

Volt meter
