FUEL HOSE
Gasoline is extremely flammable and toxic. Always observe following precautions when working around gasoline or servicing the fuel system.
• Keep the working area well ventilated and away from open flame (such as gas heater) or sparks.
• Do not smoke or allow anyone else to smoke near the working areas.
• Wipe up fuel spills immediately.
Do not over bend (kink) or twist hoses when installing.
CONNECTION
Connect the fuel hose.

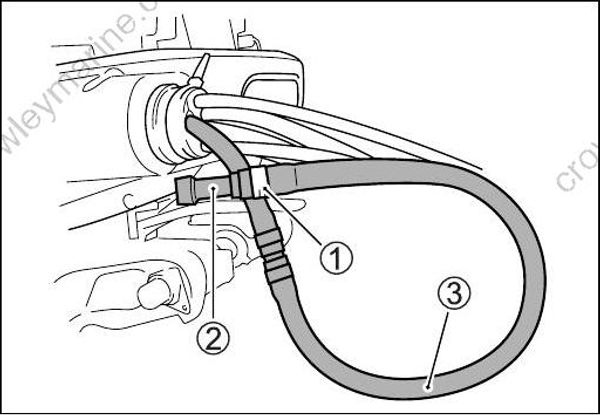

(1) Loosen the clip (1), then remove the fuel connector (2) from the hose (3).

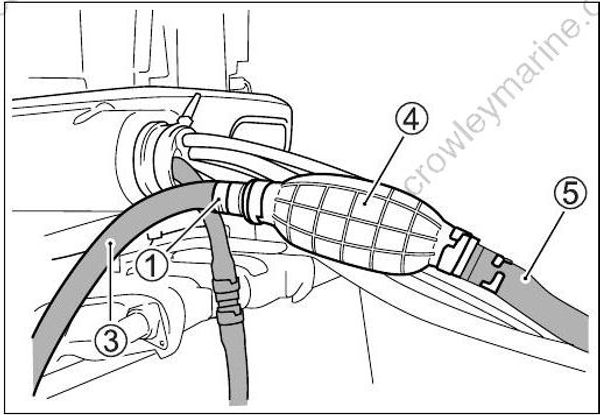

(2) Connect the fuel primer bulb (4) (with fuel hose (5)) to the fuel hose (3) and tighten the connecting point with the clip (1).
(3) Connect the fuel hose (5) to the fuel pipe from the boat fuel tank and tighten the connecting point with a clip.
