WIRE HARNESS INSTALLATION
Contained parts
| Item | Part name | Part number | Q’ty |
|---|---|---|---|
| A | Grommet | 61124-93J40 | 1 |
| B | Battery sub wire (3.7 m) Battery sub wire (6.5 m) |
36625-93J00 36625-93J10 |
1 |
| C | Remote control harness | 36620-93J00 | 1 |
• Depending on the model specification, the battery sub wire varies.
• Depending on the model specification, the remote control harness is optional.
Procedure
(1) Loosen the five (5) bolts, then remove the starboard side cover from the outboard motor.

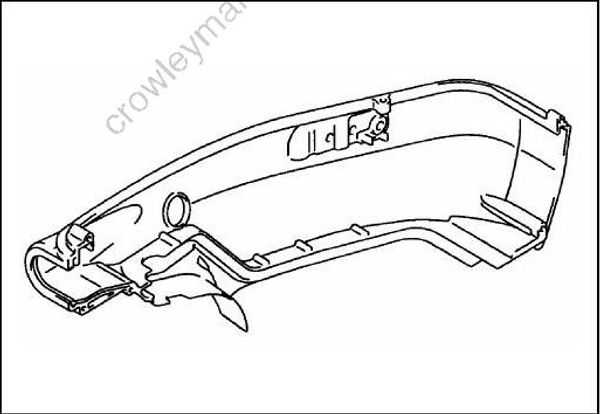

(2) Route the following items through the grommet (A) as shown position.
• Fuel hose (1)
• Battery sub wire (B)
• Battery cable (2)
• Remote control harness (C)
• Speed meter pickup tube (3)
(3) Connect the remote control harness (C) to the engine side, then press fit the connector into the holder.
(4) Connect the battery sub wire (B) to the engine side.
(5) Push the grommet (A) into the front panel.
