Service Manual G2 74° V6 Service Manual 5010014 Engine And Control Systems [Emm Servicing]

Related Products:
Service Manual G2 74° V6 Service Manual 5010014 Engine And Control Systems [Emm Servicing]
5010014
BRP Marine

Step 1: EMM Servicing

IMPORTANT: If a new EMM is being installed, refer to Software on p. 95.

Step 2: Removal

Removal and installation of the EMM requires removal of the engine covers and frames.
• See Engine Cover and Frame Service on p. 55.

After covers and frames are removed from the engine continue with the procedure on the next page.

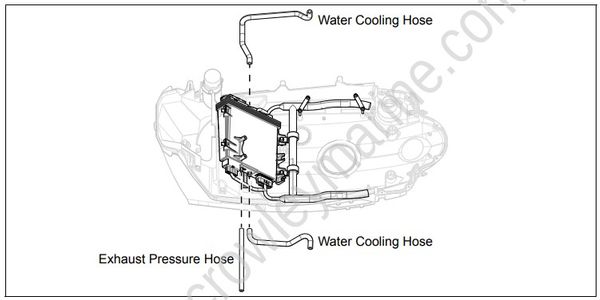

Disconnect exhaust pressure hose and water cooling hoses from EMM.

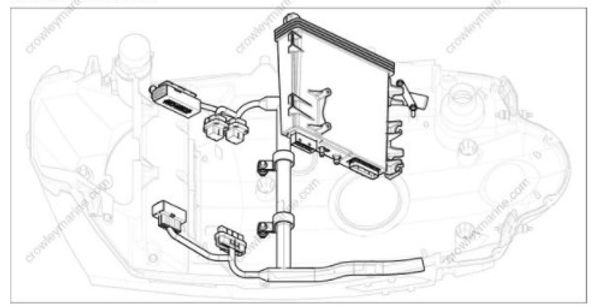

Remove EMM mounting screws (2X). Rotate EMM away from frame as shown.

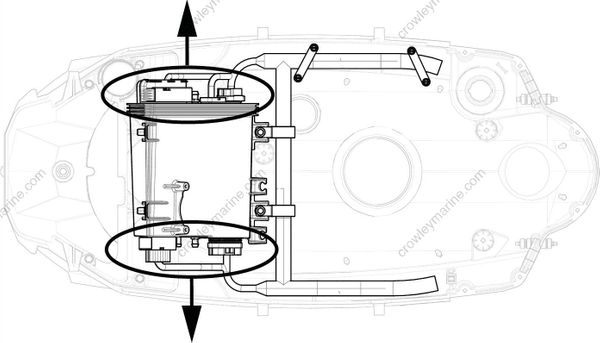

Disconnect J1-A, J1-B, J2, J3 and J4 connectors from EMM.

Remove EMM from frame.

Step 3: Installation

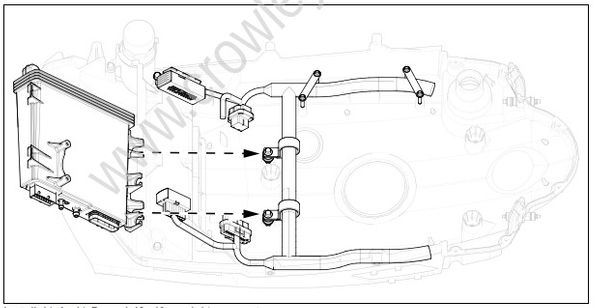

Align slots in bottom side of EMM case with isolator mounts on the frame. Slide EMM into position.


Install J1-A, J1-B, and J2, J3, and J4 connectors.

Install two EMM retaining screws. Tighten screws 12 to 16 in. lbs. (1.5 to 2 N·m).

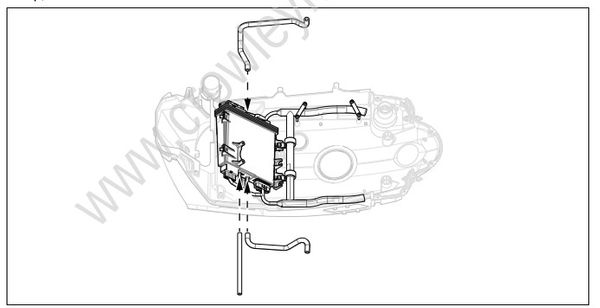

Install exhaust pressure hose and water cooling hoses. Secure each hose with one 15.7 mm Oetiker clamp, P/N 346786.

After the EMM is installed onto the center frame, install of the frames and engine covers.
• See Engine Cover and Frame Service on p. 55.
