TRIM AND TILT
Install the ground lead. Position the hydraulic unit between the stern brackets.
Lubricate the angle adjustment rod with TripleGuard grease. Install the rod. Tighten the locknuts to 20 to 25 ft. lbs. (27 to 34 N·m).
Connect the pump motor wires.

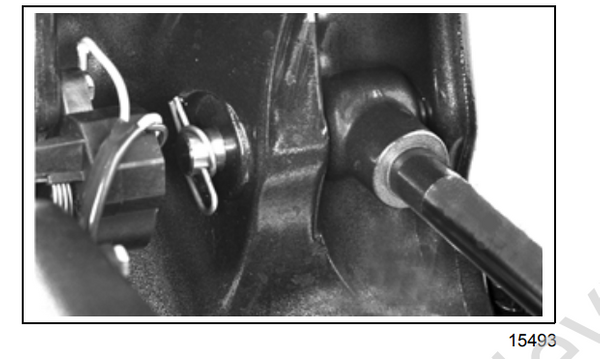

Lubricate the cylinder pin with Triple-Guard grease. Align the cylinder into the swivel bracket. Install the cylinder pin.
Secure the cylinder pin with cotter clip.
ADJUSTMENTS
Refer to Trim Sending Unit Adjustment on p. 68.
