TROUBLE CHECK CHART

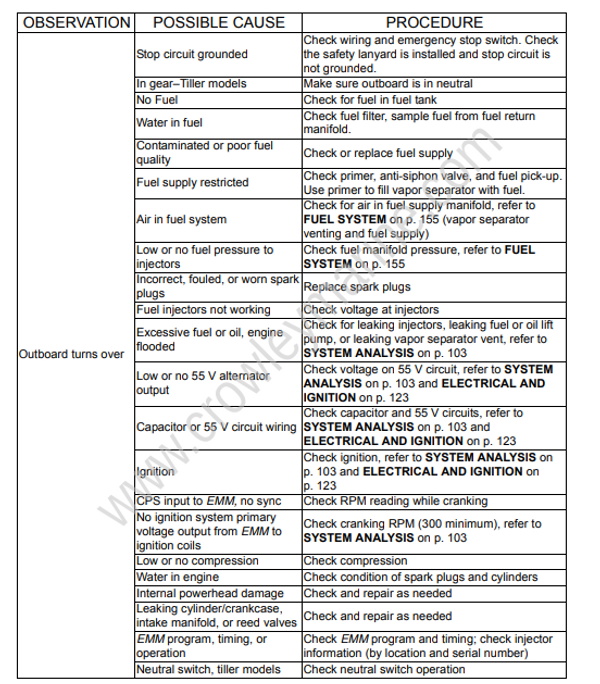

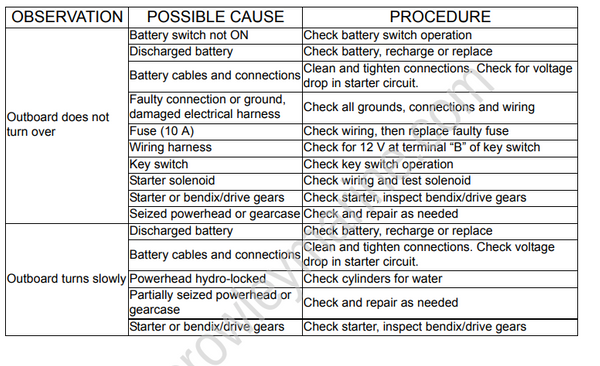

OUTBOARD WILL NOT START
OUTBOARD WILL NOT START

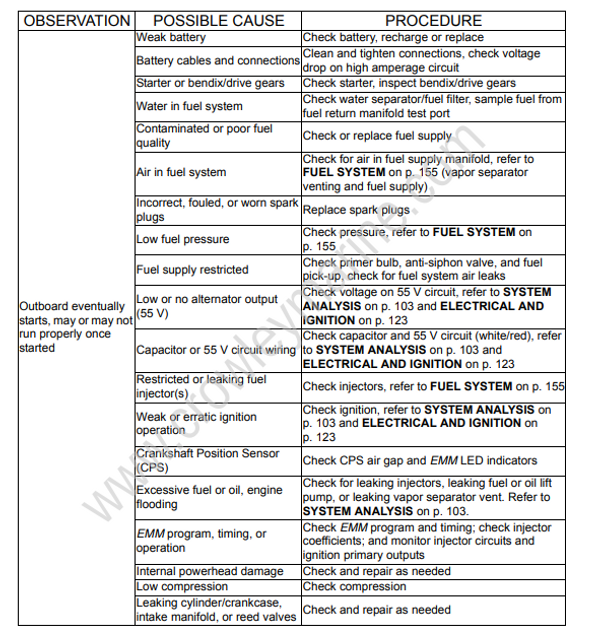

OUTBOARD HARD TO START

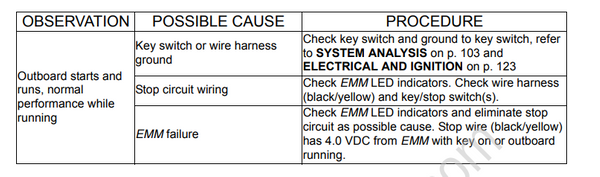

OUTBOARD WILL NOT SHUT OFF
OUTBOARD STARTS AND STALLS

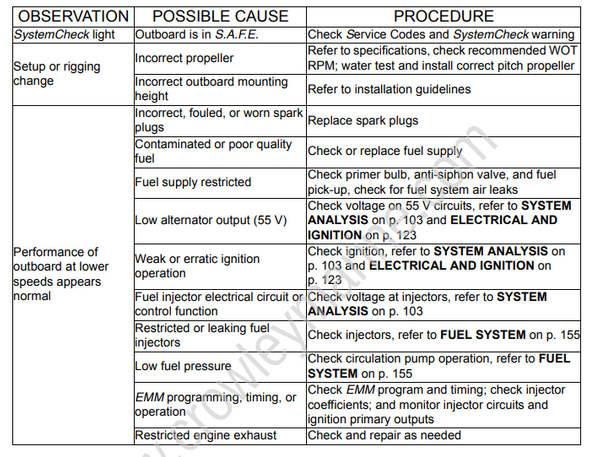

OUTBOARD STARTS, LOW MAXIMUM RPM

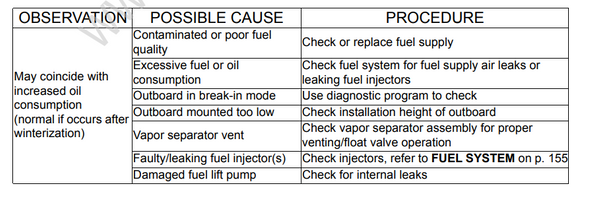

EXCESSIVE SMOKING

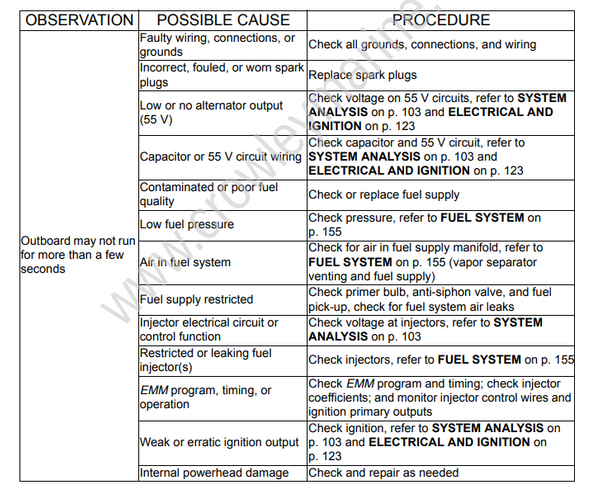

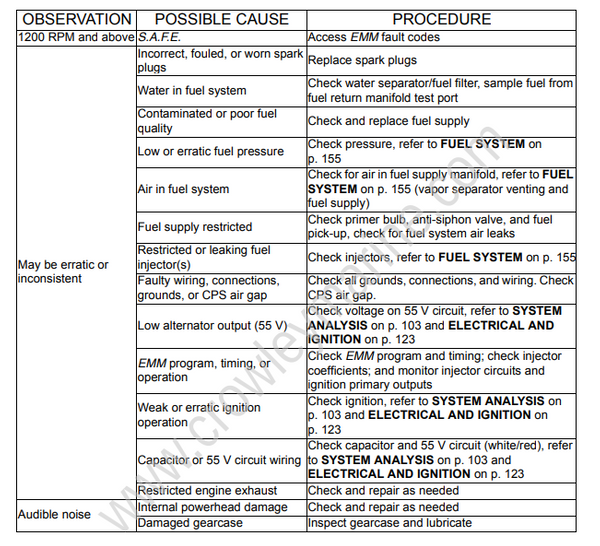

OUTBOARD SURGES, RUNS ROUGH

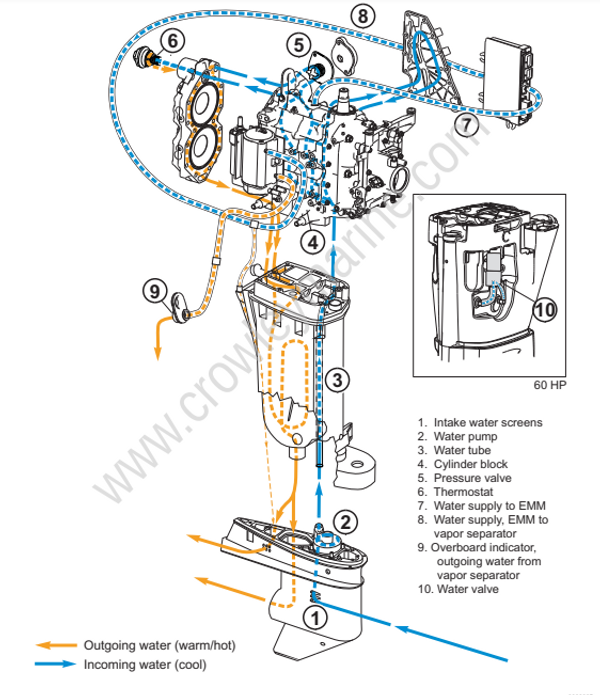

Hose Rou ting and Water Flow Diag ram
4 0 – 6 0 E-TEC Inline 2 Cylinder

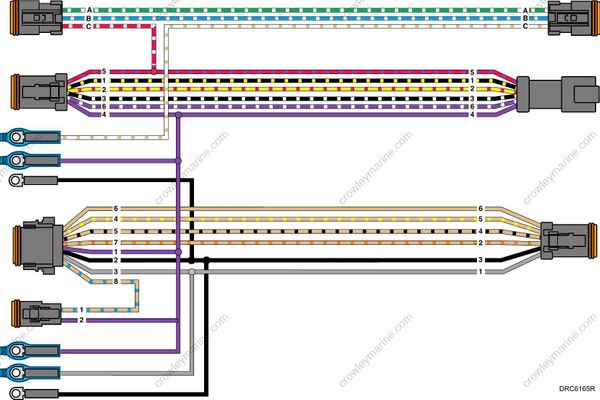

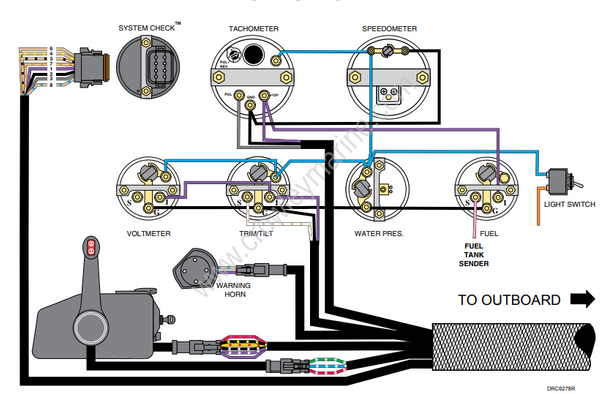

MWS Instrument Wiring Harness

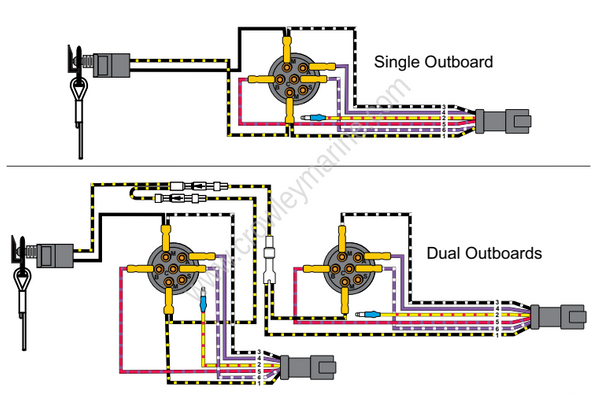

Lanyard Switch / Emergency Stop Circuits

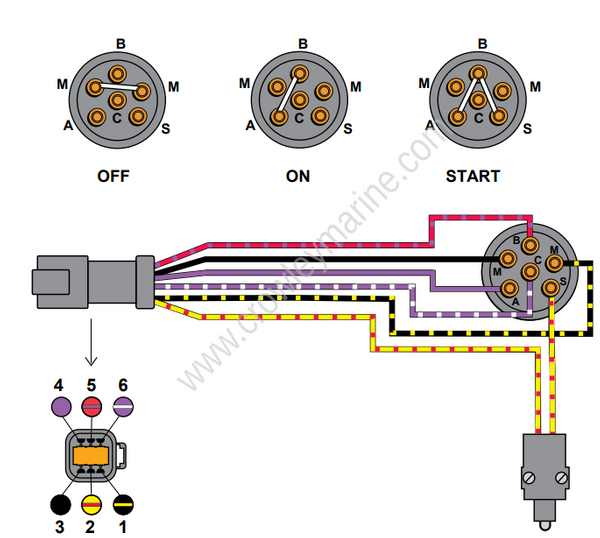

MWS Key Switch and Neutral Safety Switch
MWS DASHBOAR
Evinrude E-TEC

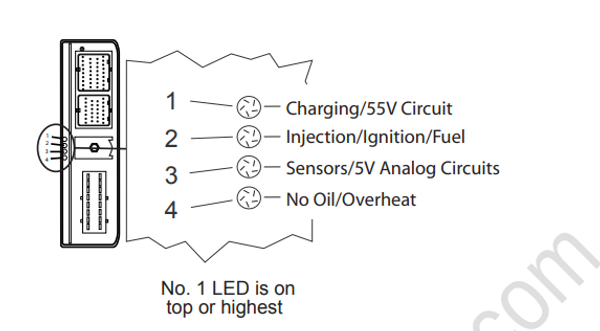

EMM LED Diagnostic Indicators
Key ON: LED’s illuminate to indicate circuit function
Starting Mode: LED’s illuminate to indicate circuit function
1
1
Running Mode: LED’s illuminate to indicate circuit fault
4
4
